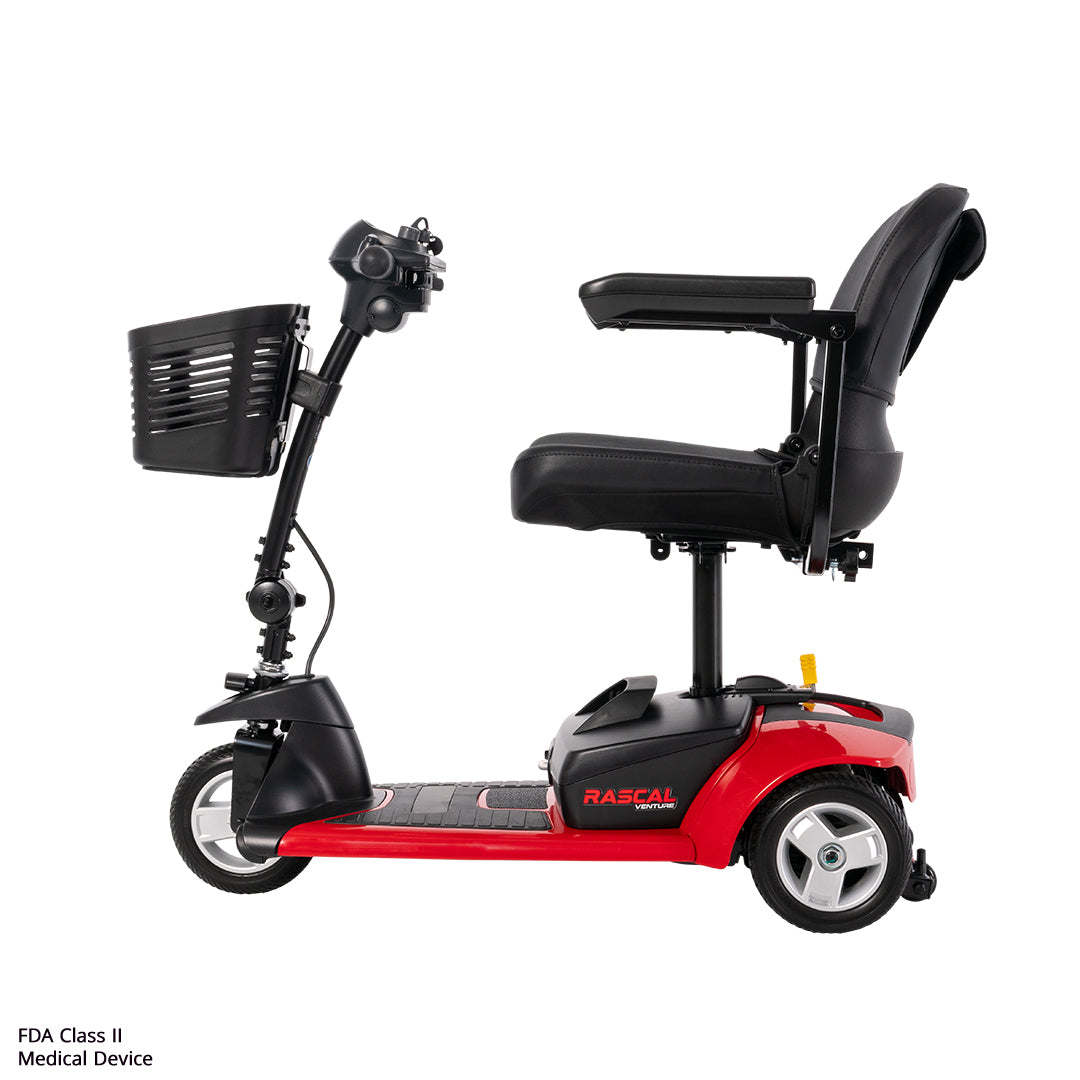

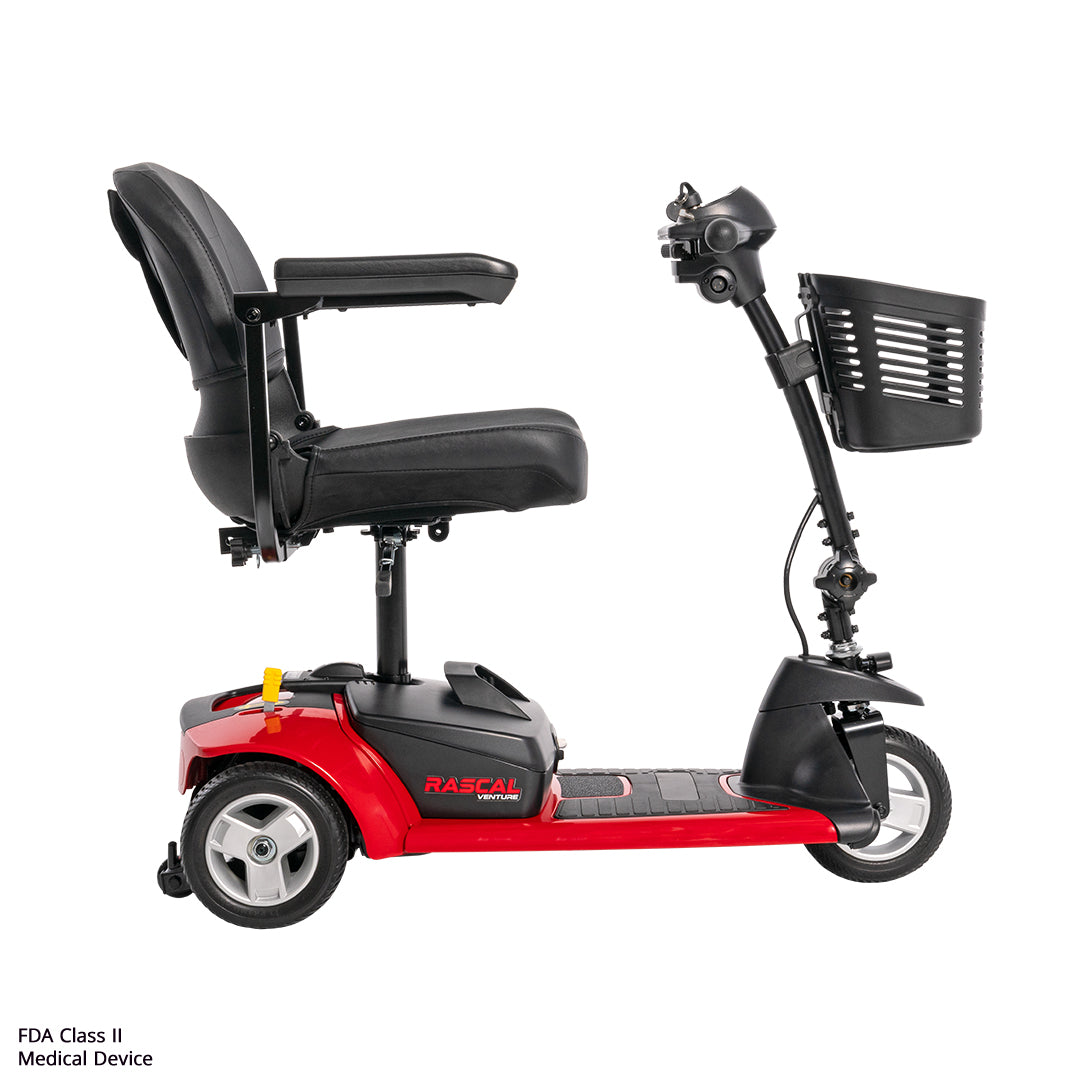

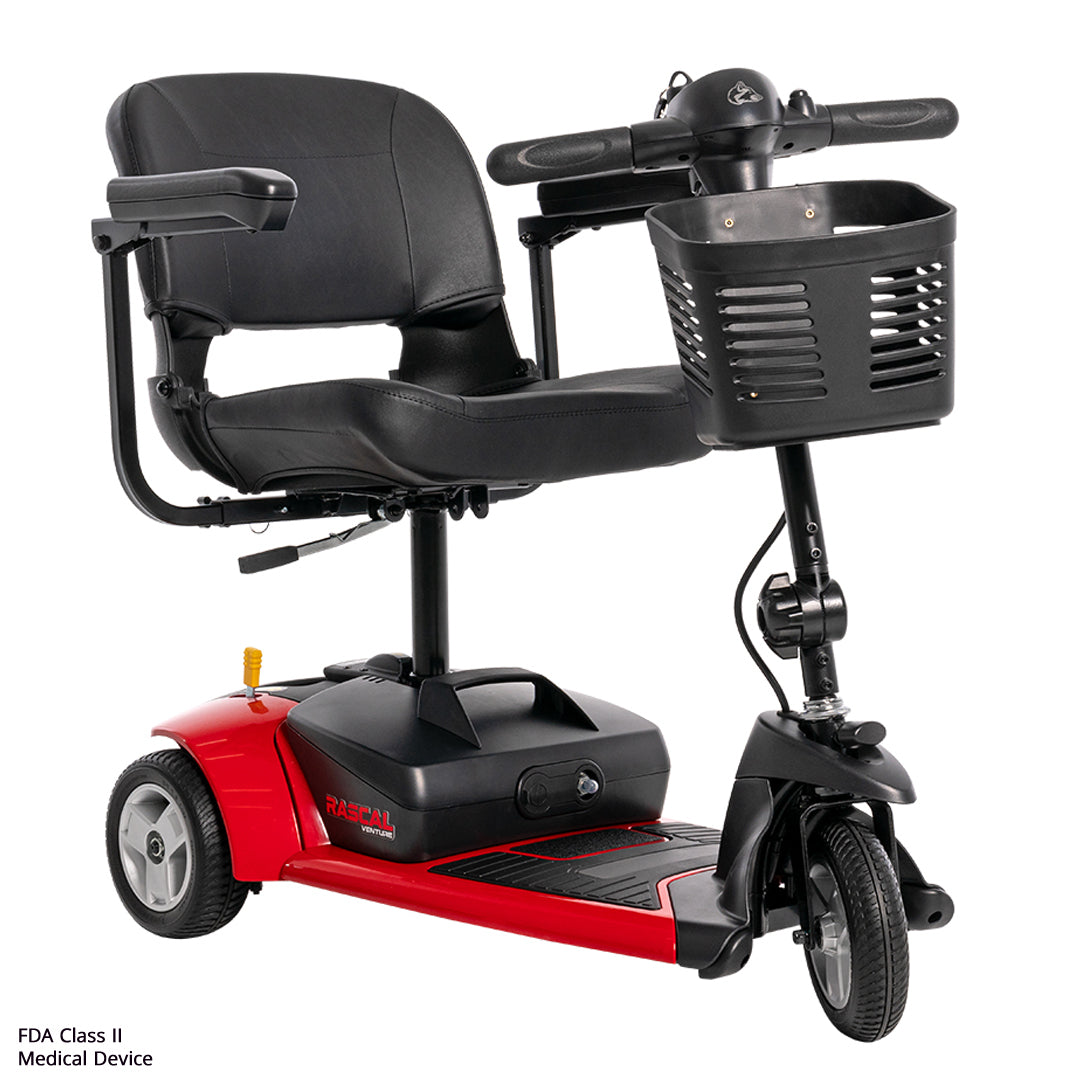

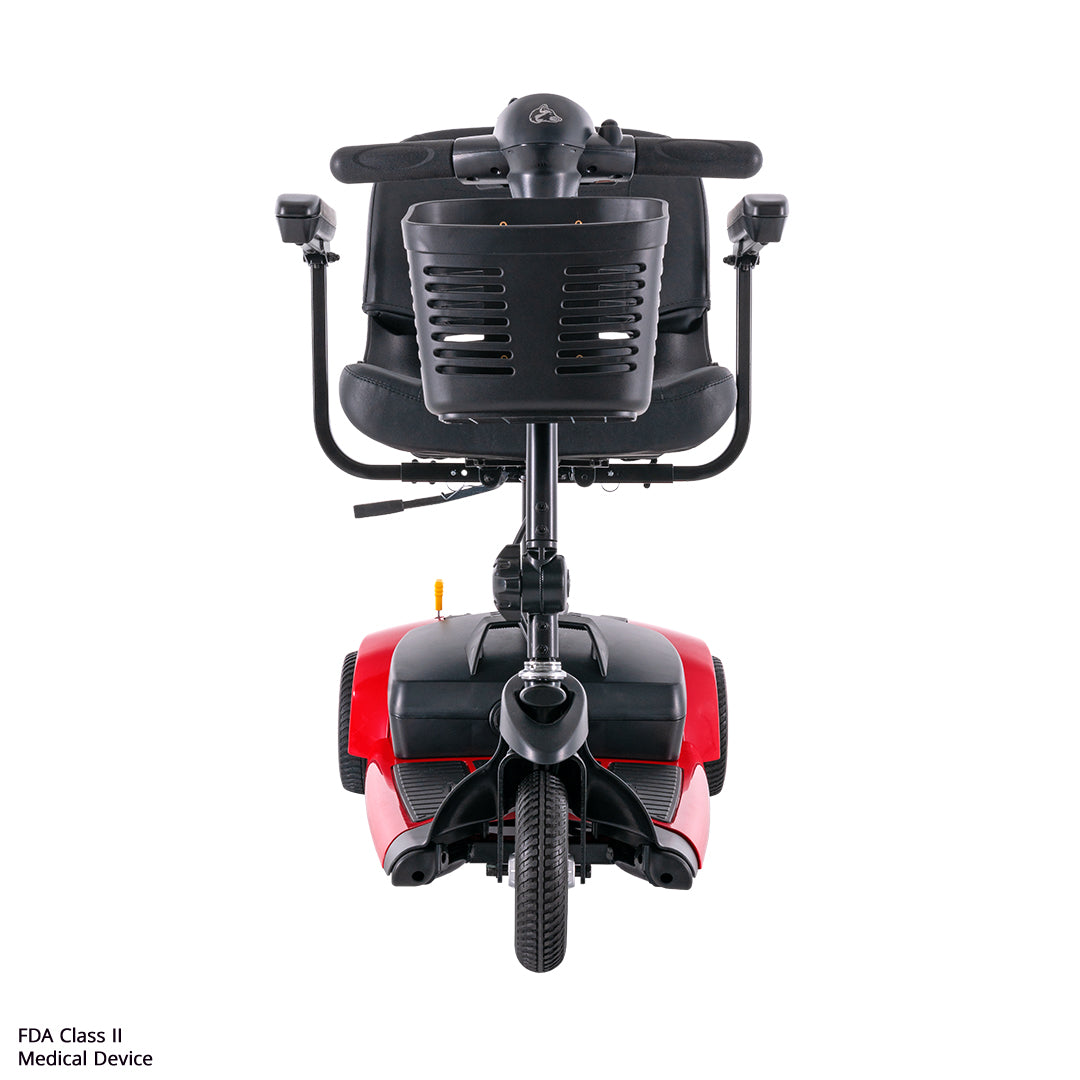

Rascal Venture 3-Wheel Mobility Scooter
- VendorMega Motion
SKU: 3150583
$699.00
Features
Travel mobility is made easy with the Rascal® Venture 3-Wheel mobility scooter. Its three 8-inch solid tires are ideal for navigating tighter environments such as grocery store aisles, and a simple disassembly process separates the unit into five lightweight pieces for easy storage and transport. You can further personalize your comfort by adjusting the angle of the tiller and the width of the armrests. Plus, the swivel seat function allows for easier transfers and increased access to surfaces. With a 300-lb. weight capacity and a battery range of up to 10 miles (at 200 lbs.), the Rascal® Venture 3-Wheel is an FDA Class II Medical Device, meeting the most stringent testing standards for a top-quality mobility experience.
- FDA CLASS II MEDICAL DEVICE: FDA Class II Medical Devices are designed to aid individuals with mobility impairments. Rascal® units have been rigorously tested to the highest standards to ensure consumer safety and long-term satisfaction.
- MOBILITY PERFORMANCE: Ride up to 10 miles at 200 lbs. on a single battery charge and reach a maximum speed of up to 4 mph. Easily navigate tight turns and crowded spaces with Rascal’s standard regenerative and electromechanical brakes.

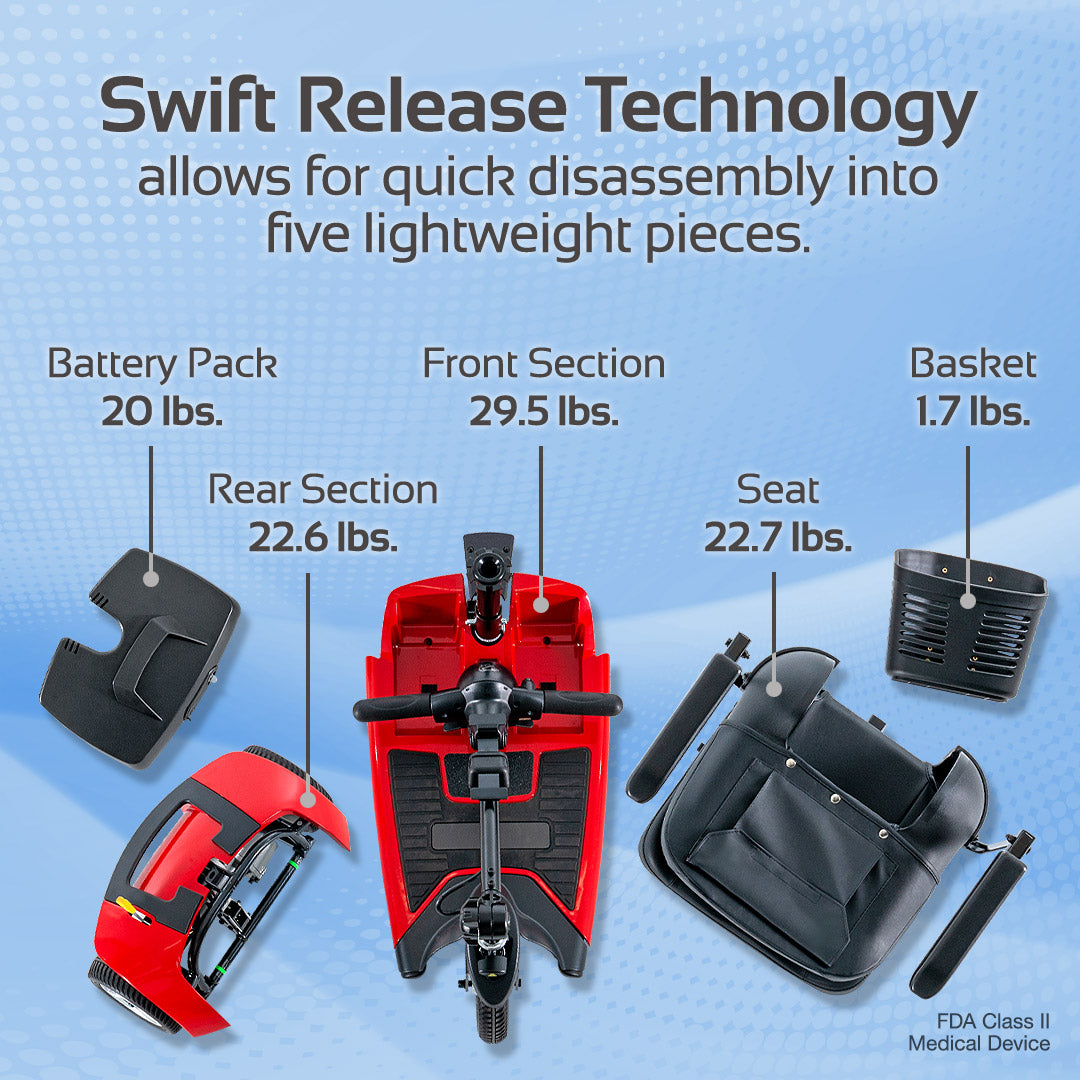

- SWIFT RELEASE TECHNOLOGY: The Rascal® Venture 3-wheel mobility scooter easily disassembles into five lightweight pieces. It’s easy to transport in just a few quick steps taking up minimal storage space in the car or at home.

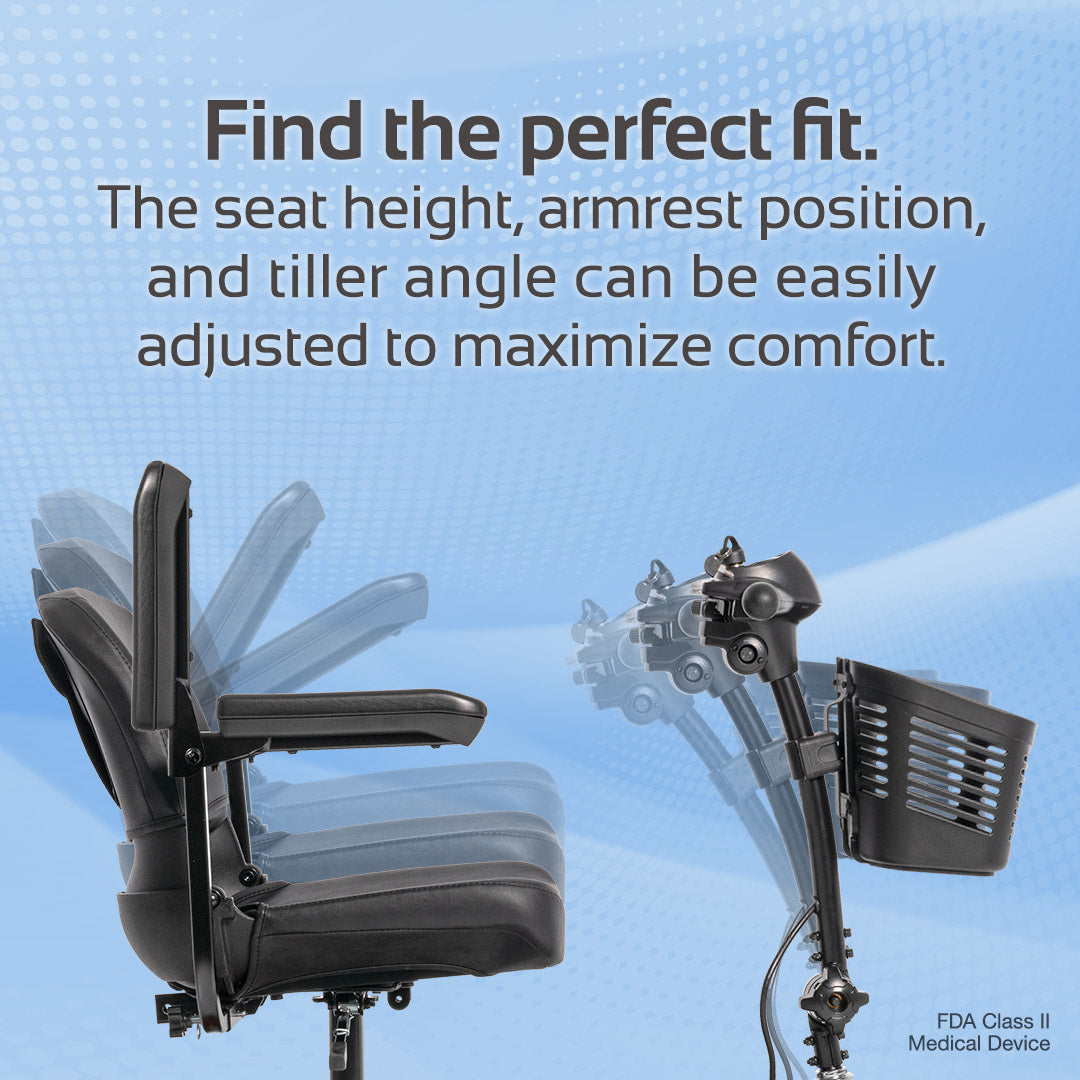

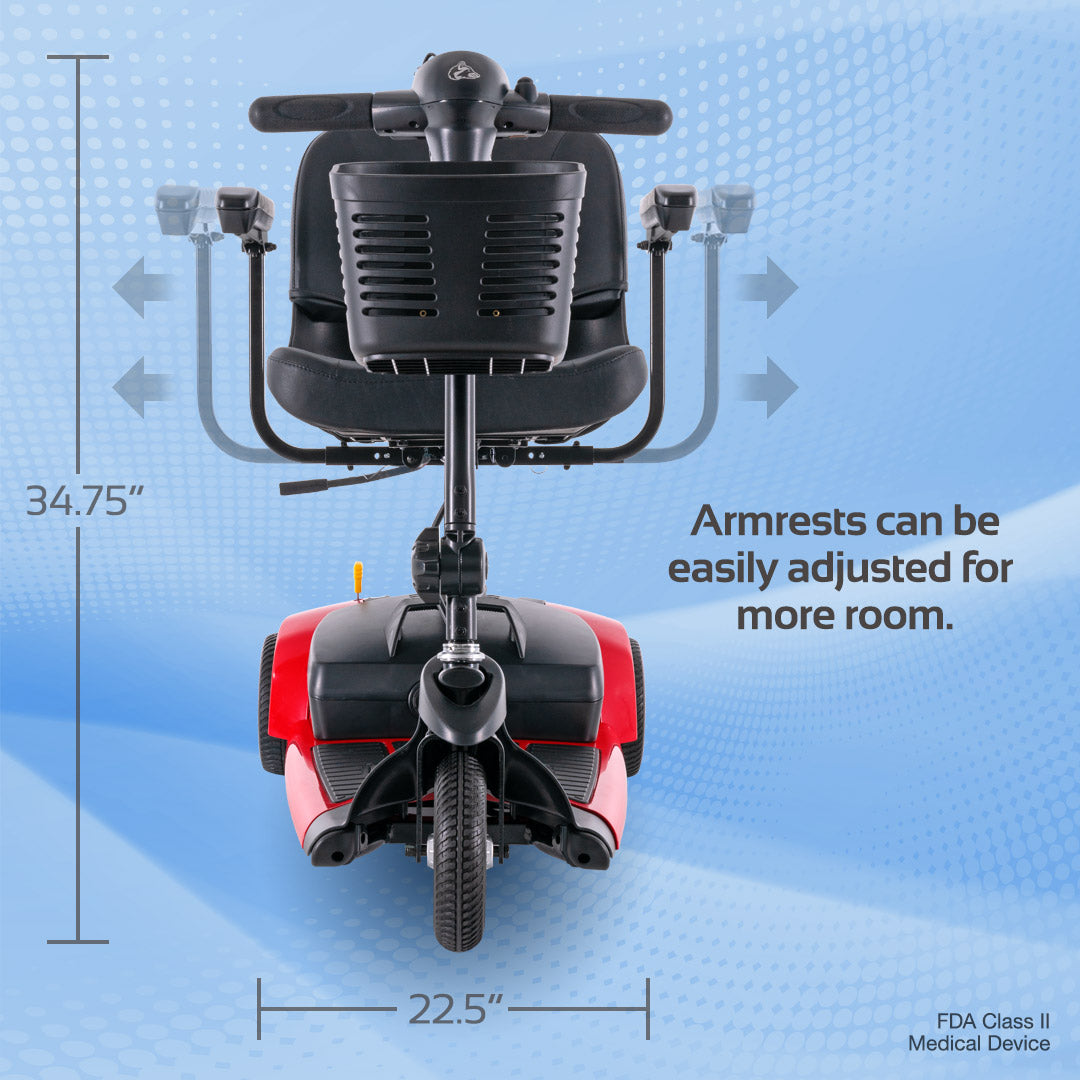

- ADJUST YOUR COMFORT LEVEL: Find that perfect driving position that meets your mobility needs throughout the day with adjustments for seat height, armrest position, and the steering tiller for maximum comfort.
- SWIVEL SEAT: With an easy to operate swivel function on the seat, you can safely transfer in and out of your mobility scooter.
Specifications
| Category | Specification |
|---|---|
| Model Numbers | 3-wheel: RSC39; 4-wheel: RSC49 |
| Weight Capacity | 300 lbs. |
| Speed (Maximum)1 | 4 mph |
| Ground Clearance2 | 3-wheel: 1.26 in. at motor 4-wheel: 1.36 in. at motor |
| Turning Radius2 | 3-Wheel: 33 in. 4-Wheel: 46.75 in. |
| Reversing Width (K-turn)2 | 3-Wheel: 42 in. 4-Wheel: 40.5 in. |
| Overall Length2 | 3-Wheel: 38.5 in. 4-Wheel: 40.5 in. |
| Overall Width2 | 22.5 in. |

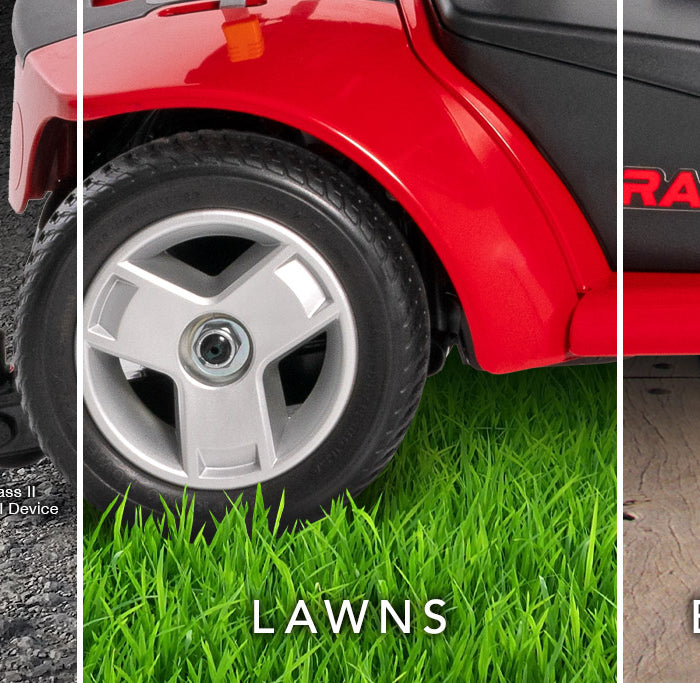

| Tires2 | Front and Rear: 8 in. |
| Range Per Charge1,4 | 3-Wheel: Up to 10.1 miles at 200 lbs. 3-Wheel: Up to 8.1 miles at 300 lbs. 4-Wheel: Up to 8 miles at 200 lbs. 4-Wheel: Up to 6.6 miles at 300 lbs. |
| Total Weight Without Batteries5 | 3-Wheel: 76.5 lbs. 4-Wheel: 81.5 lbs |
| Standard Seating2 | Type: Moldable Plastic Material: Black Vinyl Weight: 22.7 lbs. Width: 17 in. Depth: 17 in. |
| Drive System | Rear-wheel drive, single motor, 24-volt DC motor |
| Dual Braking System | Regenerative and electromechanical |
| Battery Requirements3 | Type: Two 12-volt, sealed lead-acid, non-spillable deep-cycle Size: 12Ah |
| Battery Pack Weight6 | 20 lbs. |
| Battery Charger | 2 amp off-board charger |
| Freewheel Operational Force | Less than 60 N |
| Drive Control Operational Force | Less than 5 N |
| Maximum Rated Slope | 6° |
| Maximum Obstacle Climbing Ability (Ascending/Descending)2 | 2 in. |
| Seat to Deck Height | 15.5 - 18 in. |
| Seat Height | 15.75 in. |
| Overall Height | 34.75 in. |
| Measured Sound Level (A-weighted) | Less than 65 dB |
1 Varies with base model, user weight, terrain type, battery amp hour rating (Ah), battery charge, battery condition, motors, controller type, tire type, and tire condition. This specification is subject to a variance of +10%, -5%.
2 Due to manufacturing tolerances and continued product improvement, this specification can be subject to a variance of (+ or -) 3%.
3 AGM, Gel-Cell, Lithium-ion, or Hybrid Gel (Hybrid Gel is defined as Nano Silica Gel Electrolyte with High Quality Glass Mat Separators) type required. See III. “Batteries and Charging.”
4 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
5 Includes standard seat.
6 Battery weight may vary based on manufacturer
NOTE: This product conforms to all applicable ANSI/RESNA and ISO 7176 Series standards. All specifications subject to change without notice.
