Rascal Conquest 4-Wheel Mobility Scooter
- VendorMega Motion
SKU: 3150582
$1,649.00
Features

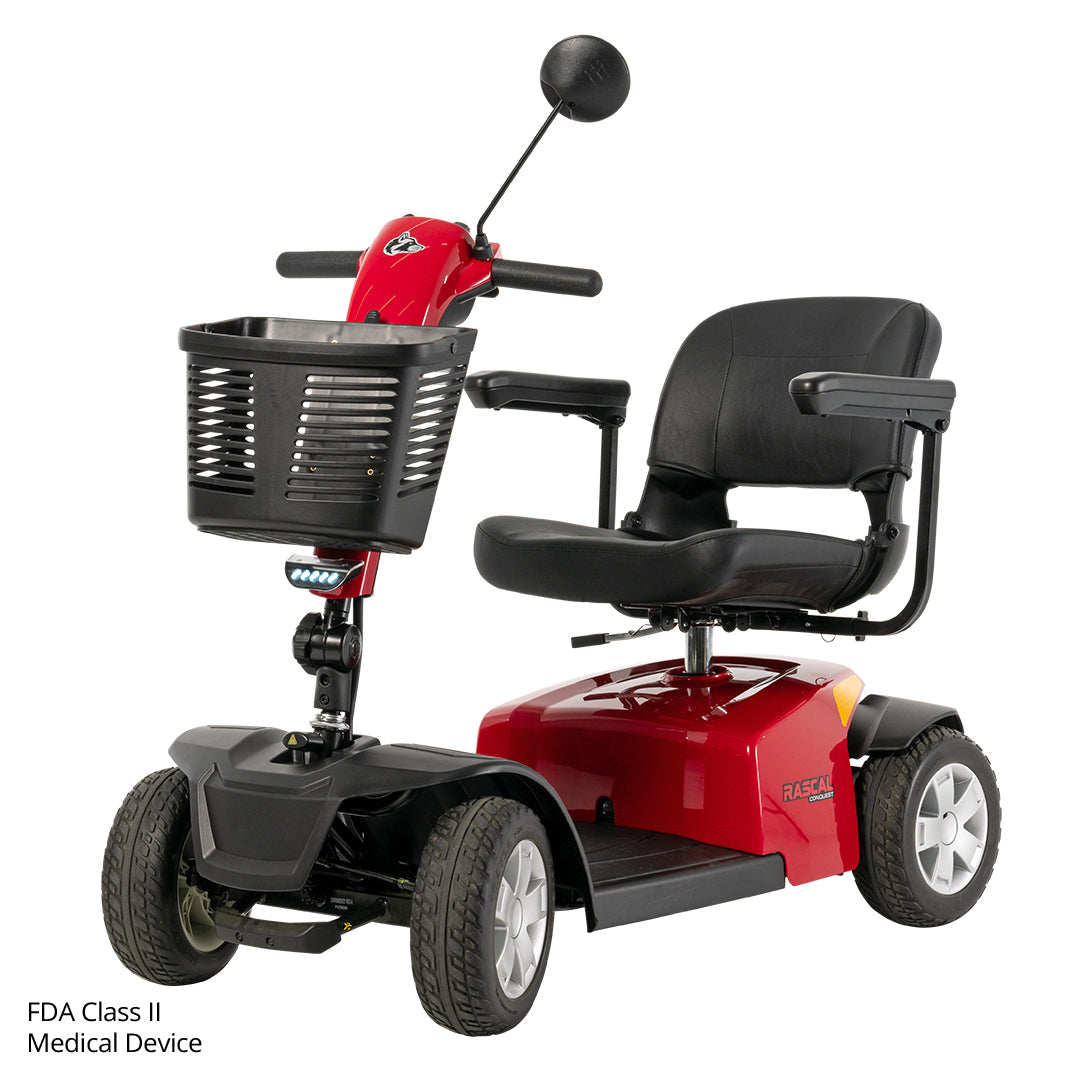

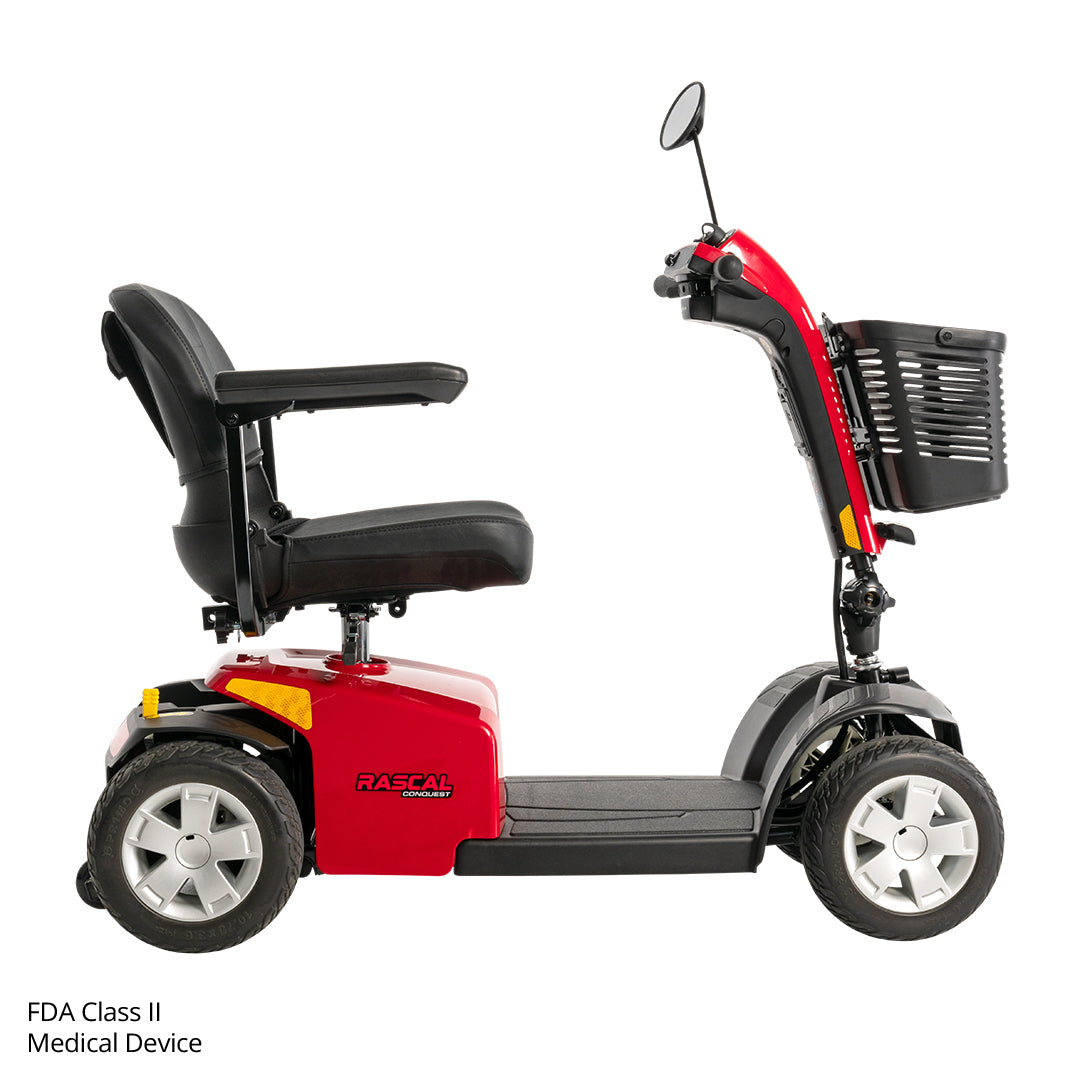

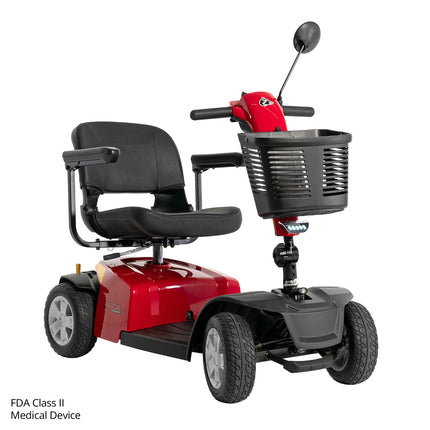

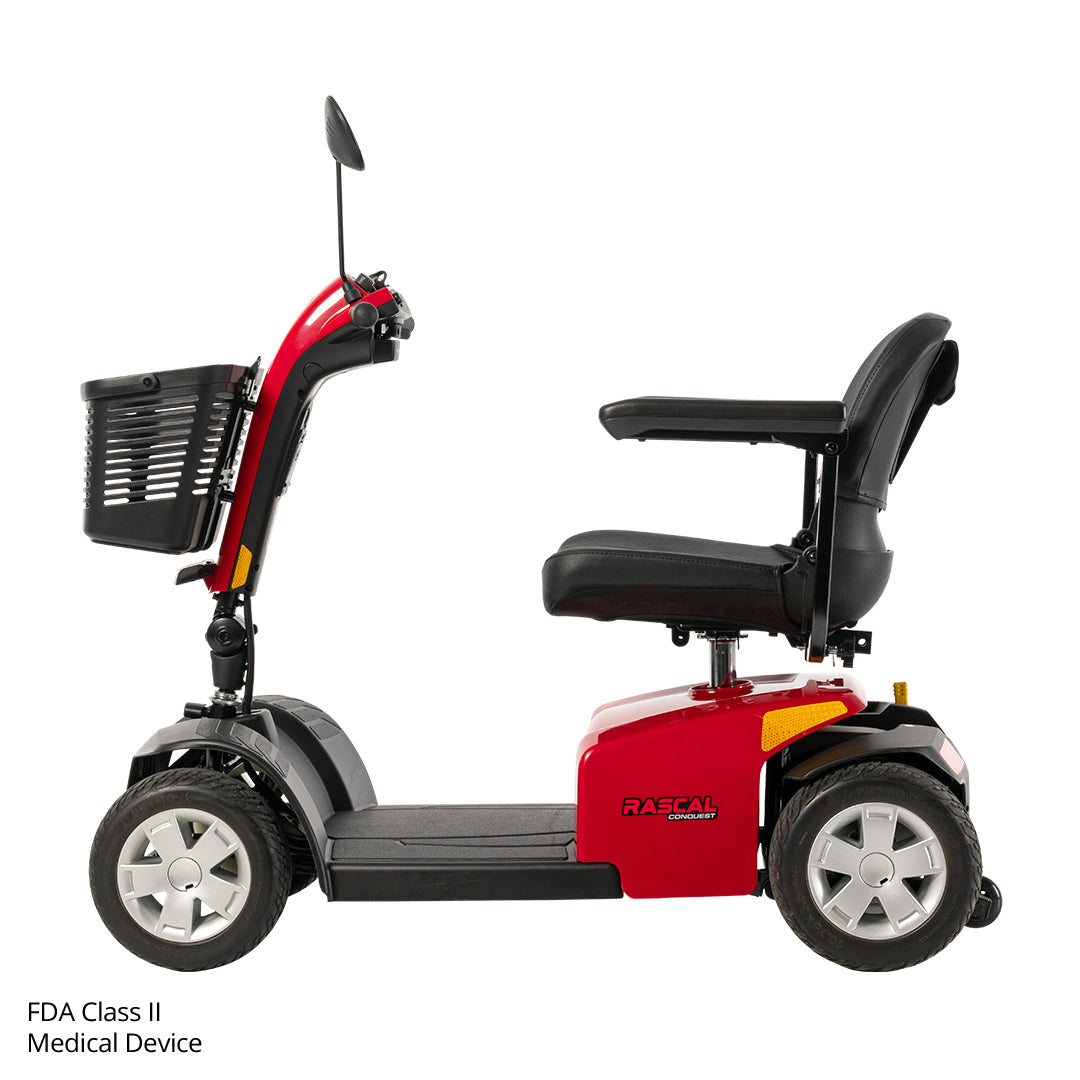

Stability and durability define the Rascal® Conquest 4-Wheel mobility scooter. Its four 10-inch solid tires provide balance as you navigate through your neighborhood, explore downtown, or spend a day at the park. With a 350-lb. weight capacity, this mid-size scooter is robust, and with a battery range of up to 16.9 miles (at 200 lbs.), you’ll have the power to ride all day (or night with an LED headlight). Adjust the width of the armrests, angle of the tiller, and height of the seat to your liking for a personalized experience. And with a swivel seat function, complete transfers safely and access a variety of surfaces. The Rascal® Conquest 4-Wheel is an FDA Class II Medical Device, meeting the most stringent testing standards for a top-quality mobility experience.
- FDA CLASS II MEDICAL DEVICE: FDA Class II Medical Devices are designed to aid individuals with mobility impairments. Rascal units have been rigorously tested to the highest standards to ensure consumer safety and long-term satisfaction.
- MOBILITY PERFORMANCE: With a weight capacity of 350 lbs. and the ability to travel 16.9 miles on a single battery charge at 200 lbs., you’re equipped with a dependable mobility solution in your everyday life, whether at home or in town.

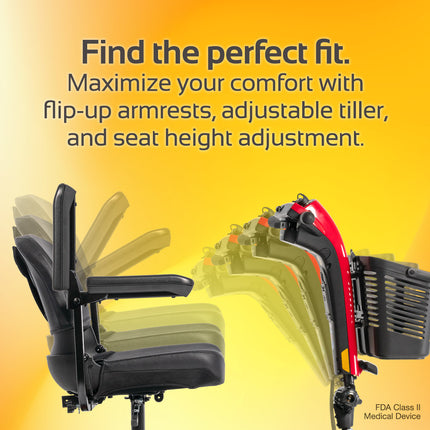

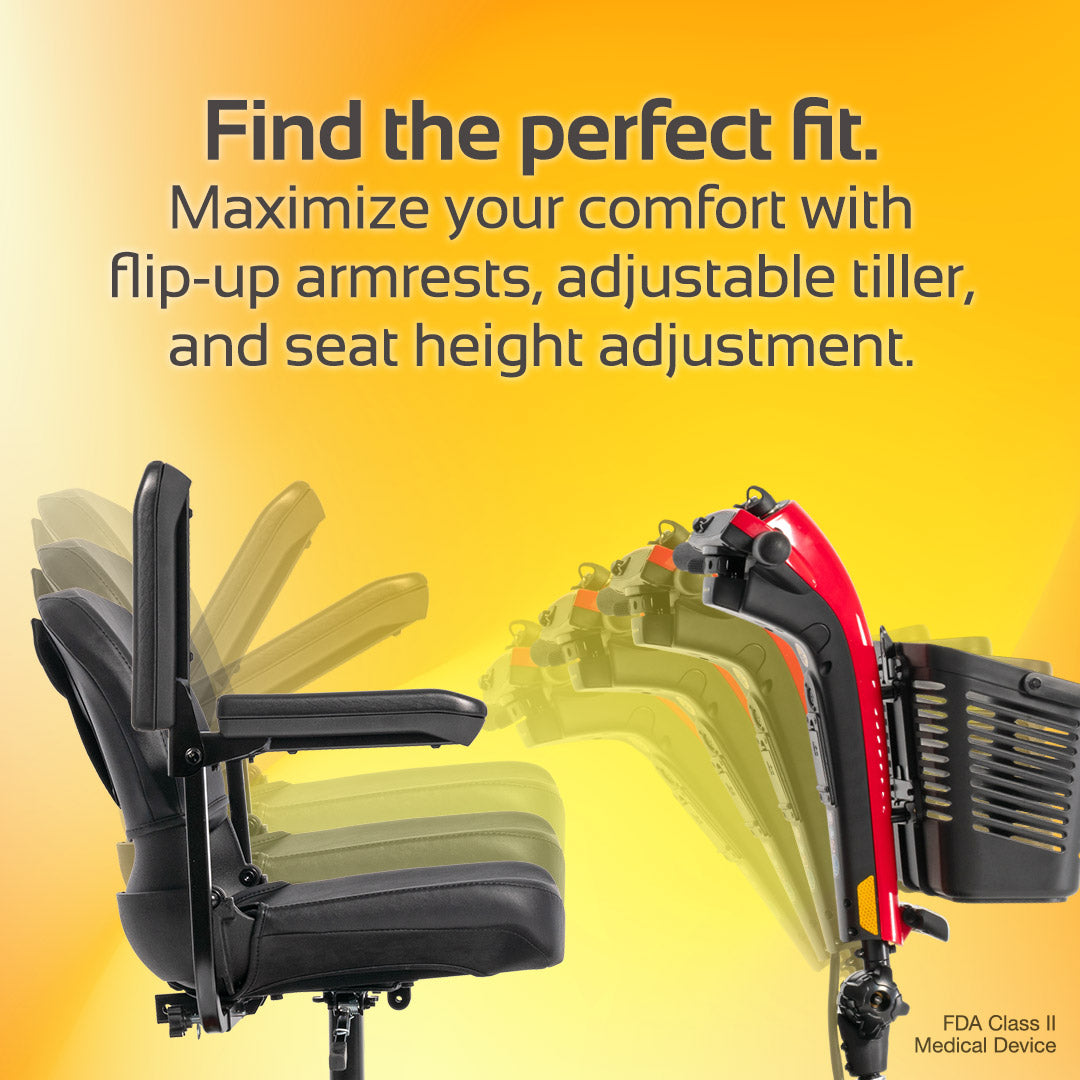

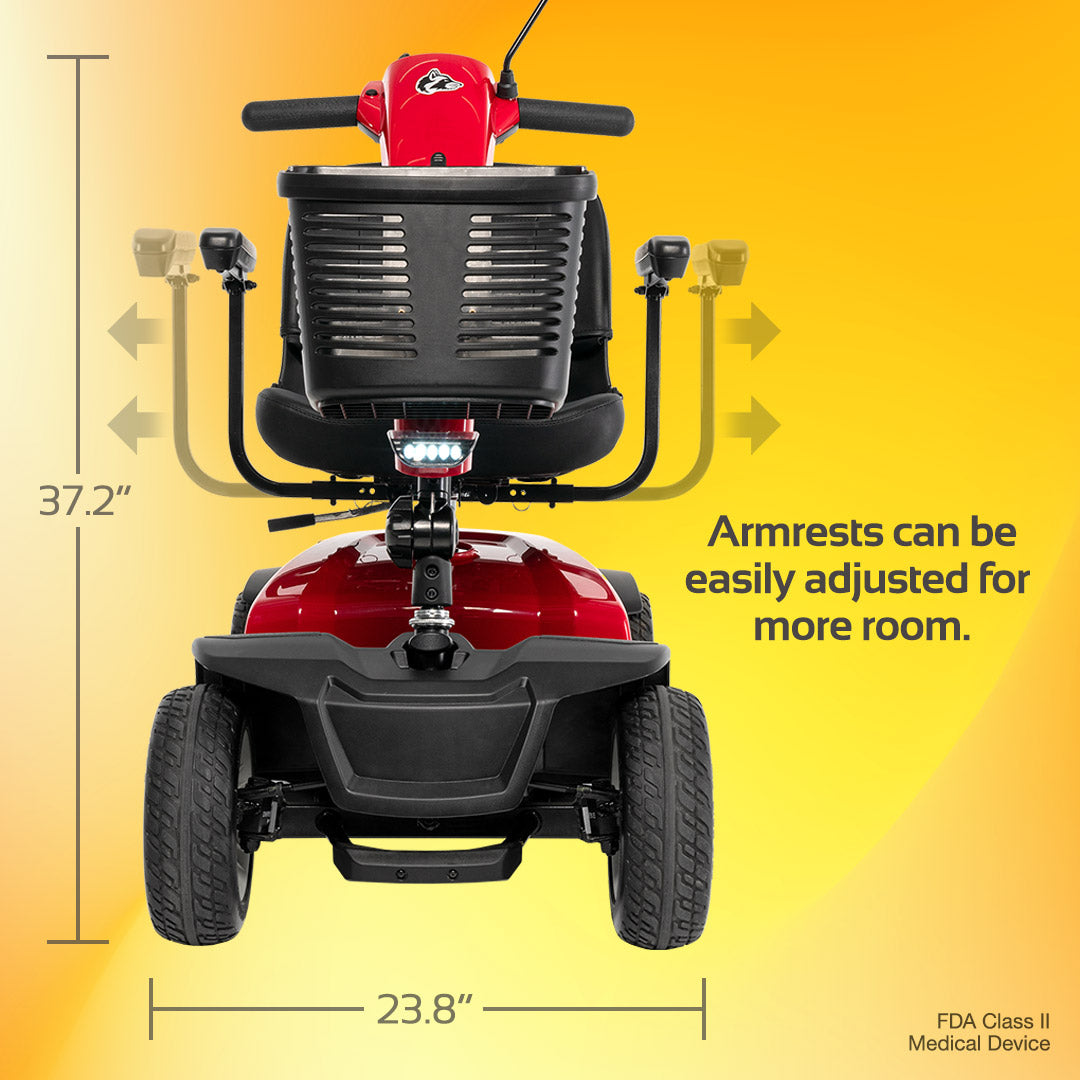

- ADJUST YOUR COMFORT LEVEL: Find that perfect driving position that meets your mobility needs throughout the day with adjustments for seat height, armrest position, and the steering tiller for maximum comfort.

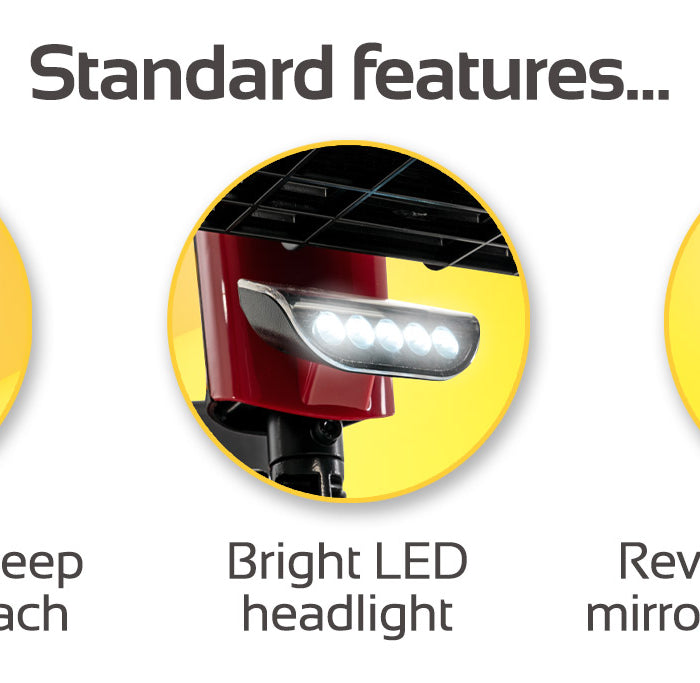

- MAXIMUM VISIBILITY: You’re provided with a rearview mirror to navigate safely in crowded areas, and a high-intensity LED headlight gives you extra confidence in darker environments.
- SWIVEL SEAT: With an easy to operate swivel function on the seat, you can safely transfer in and out of your mobility scooter.
Specifications
| Category | Specification |
|---|---|
| Model Numbers | 3-Wheel: RSC103; 4-Wheel: RSC104 |
| Weight Capacity | 350 lbs. |
| Speed (Maximum)1 | 6 mph |
| Ground Clearance2 | 2.44 in. at motor |
| Turning Radius2 | 3-Wheel: 38.78 in. 4-Wheel: 51.75 in. |
| Reversing Width (K-turn)2 | 3-Wheel: 50.28 in. 4-Wheel: 63.74 in. |
| Overall Length2 | 3-Wheel: 44.65 in. 4-Wheel: 46.97 in. |
| Overall Width2 | 23.78 in. |

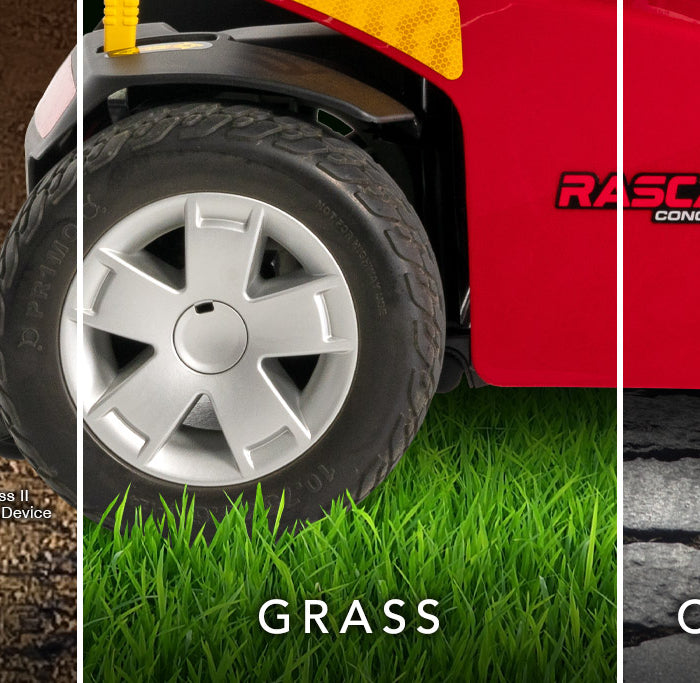

| Tires2 | 3-Wheel Front: 9 in. solid 4-Wheel Front: 10 in. solid Rear: 10.75 in. solid |
| Range Per Charge1,4 | 3-Wheel: Up to 15.4 miles at 200 lbs. 3-Wheel: Up to 12.4 miles at 350 lbs. 4-Wheel: Up to 16.9 miles at 200 lbs. 4-Wheel: Up to 10.5 miles at 350 lbs. |

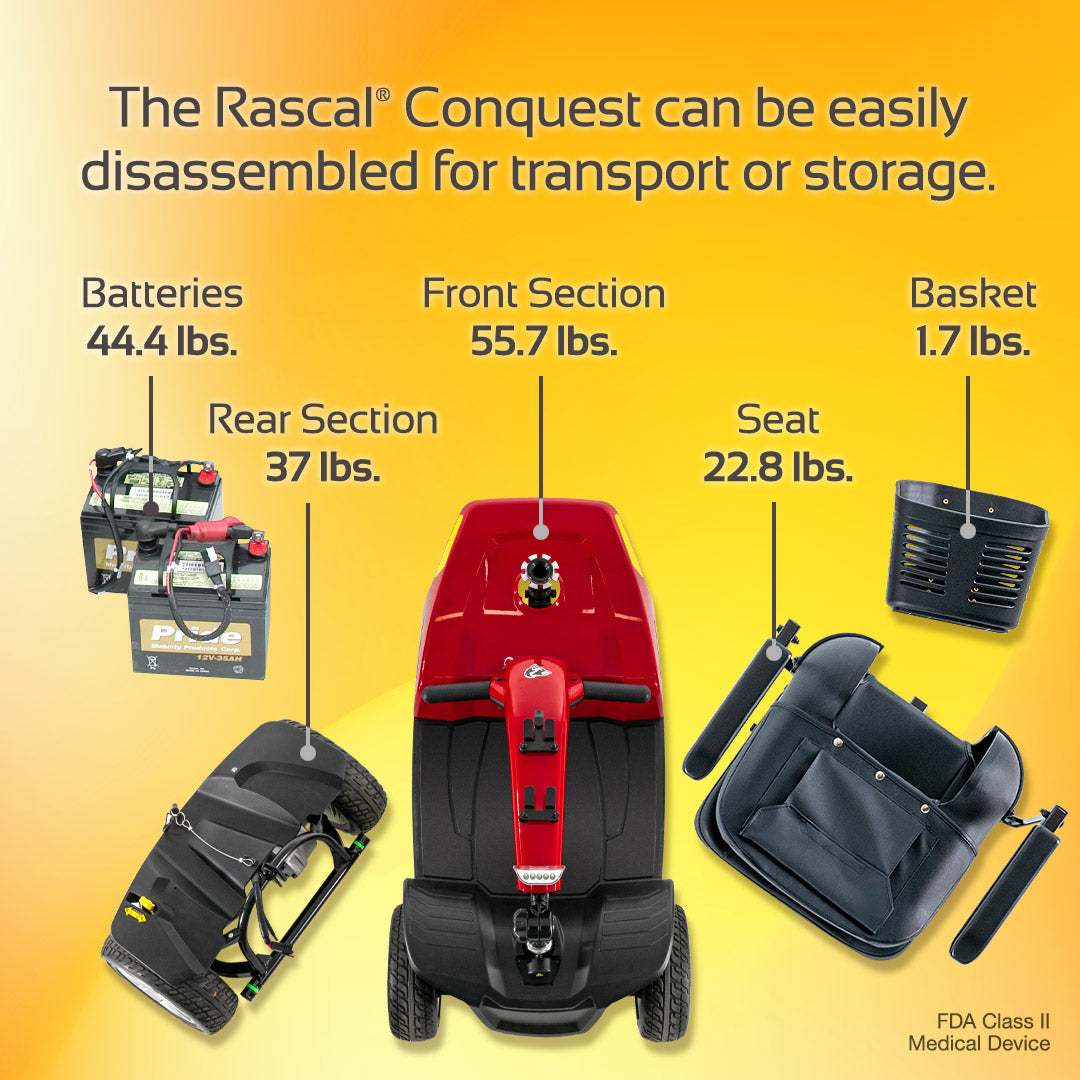

| Total Weight Without Batteries5 | 3-Wheel: 120 lbs. 4-Wheel: 124.8 lbs |
| Standard Seating2 | Type: Folded Moldable Plastic Material: Black Vinyl Weight: 22.8 lbs. Width: 17 in. Depth: 17 in. |
| Drive System | Rear-wheel drive, sealed transaxle, 24-volt DC motor |
| Dual Braking System | Regenerative and electromechanical |
| Battery Requirements1 | Two 12-volt, deep-cycle |
| Battery Pack Weight6 | 22.2 lbs. |

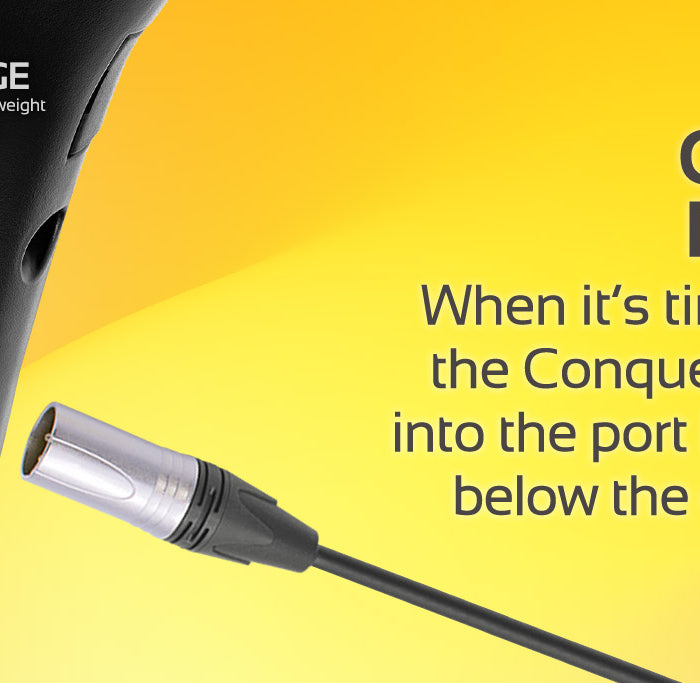

| Battery Charger | Off-board charger |
| Freewheel Operational Force | Less than 60 N |
| Drive Control Operational Force | Less than 5 N |
| Maximum Rated Slope | 6° |
| Maximum Obstacle Climbing Ability (Ascending/Descending)2 | 3-Wheel: 2.95 in. 4-Wheel: 3.54 in. |
| Seat to Deck Height | 16.25 - 17.75 in |
| Seat Height | 15.5 in |
| Overall Height | 37.2 - 38.23 in. |
| Measured Sound Level (A-weighted) | Less than 65 dB |
1 Varies with base model, user weight, terrain type, battery amp hour rating (Ah), battery charge, battery condition, motors, controller type, tire type, and tire condition. This specification is subject to a variance of +10%, -5%.
2 Due to manufacturing tolerances and continued product improvement, this specification can be subject to a variance of (+ or -) 3%.
3 AGM, Gel-Cell, Lithium-ion, or Hybrid Gel (Hybrid Gel is defined as Nano Silica Gel Electrolyte with High Quality Glass Mat Separators) type required. See III. “Batteries and Charging.”
4 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
5 Includes standard seat.
6 Battery weight may vary based on manufacturer
NOTE: This product conforms to all applicable ANSI/RESNA and ISO 7176 Series standards. All specifications subject to change without notice.
