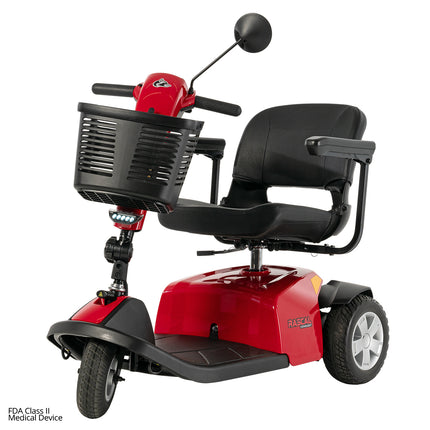

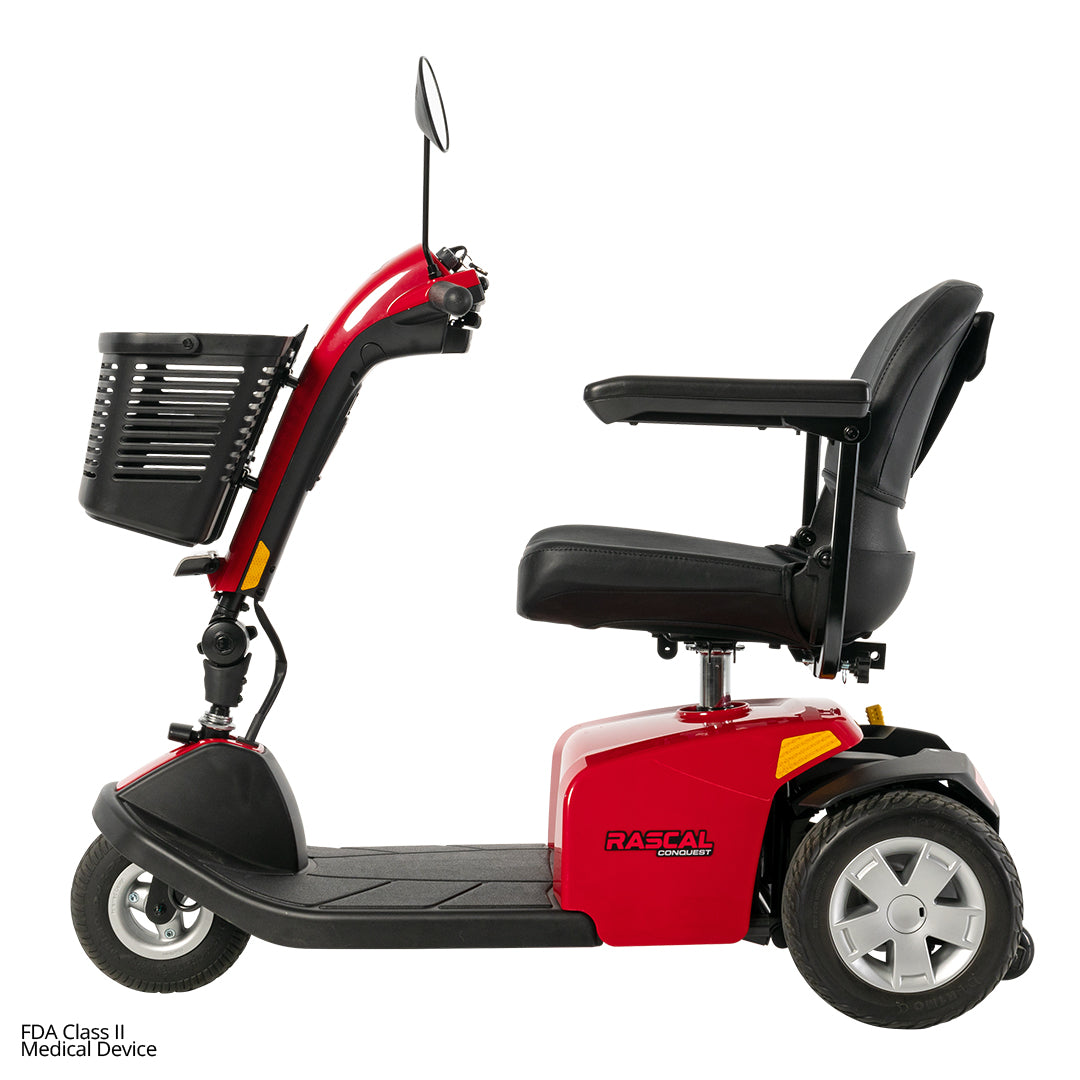

Rascal Conquest 3-Wheel Mobility Scooter
- VendorMega Motion
SKU: 3150581
$1,499.00
SKU: 3150581
$1,499.00

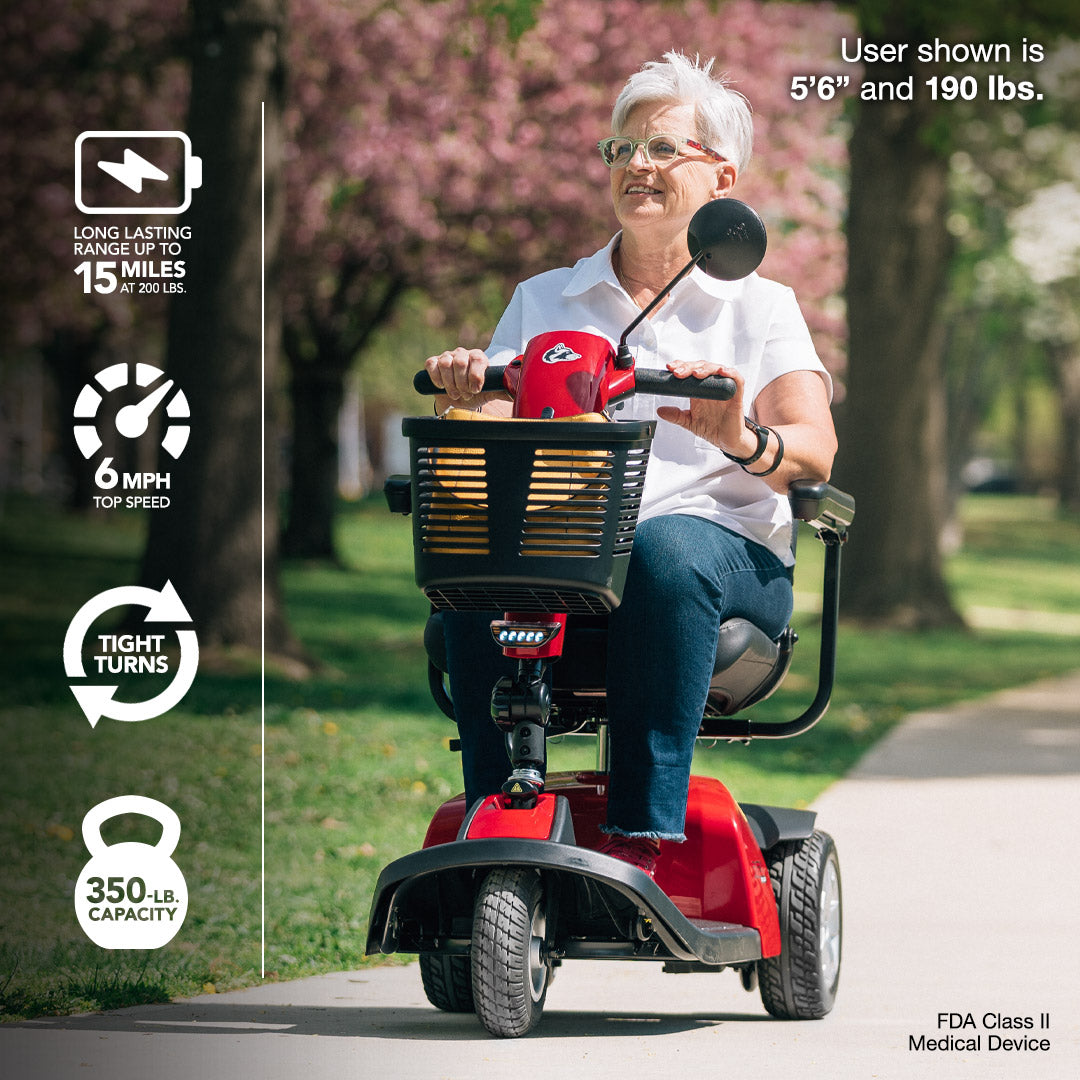

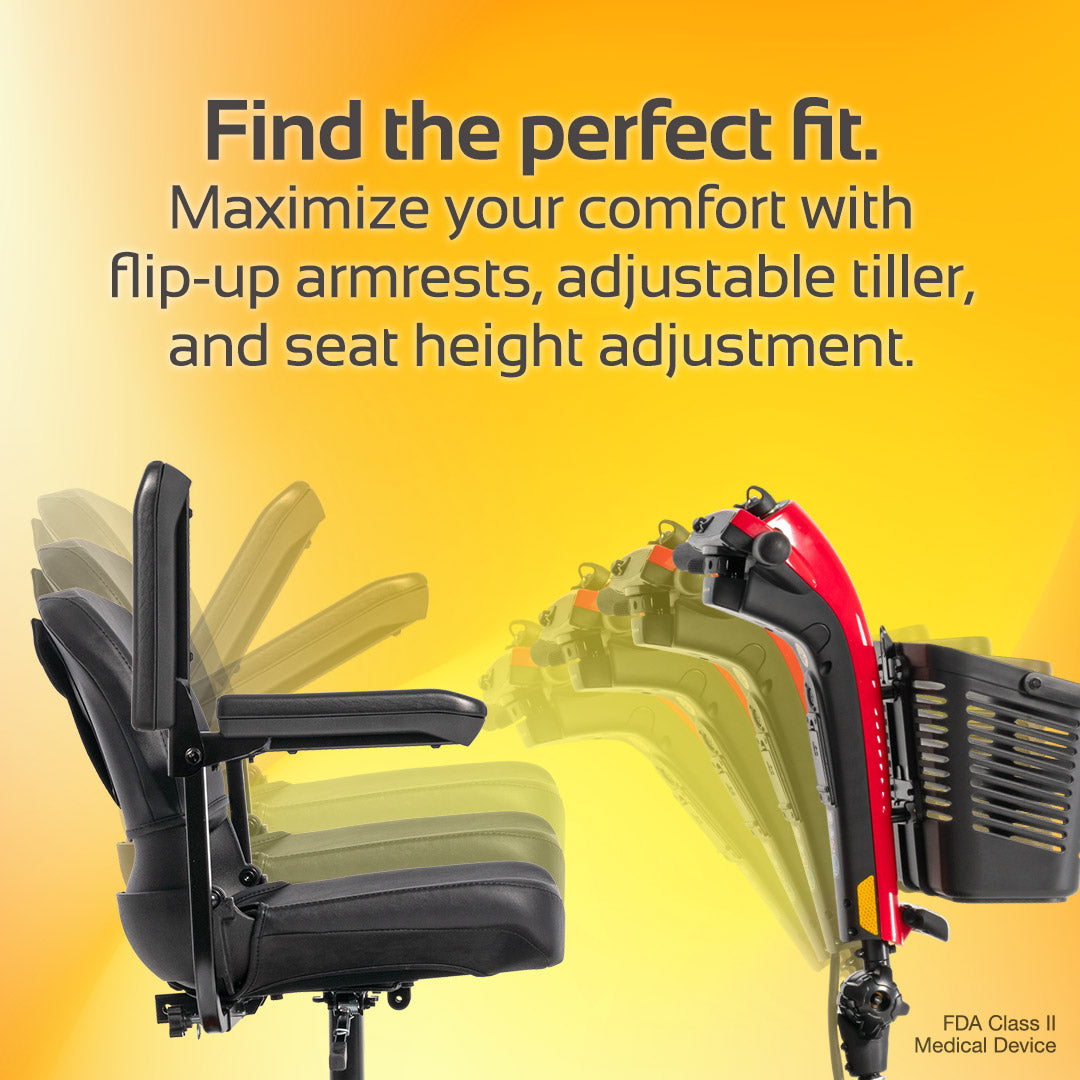

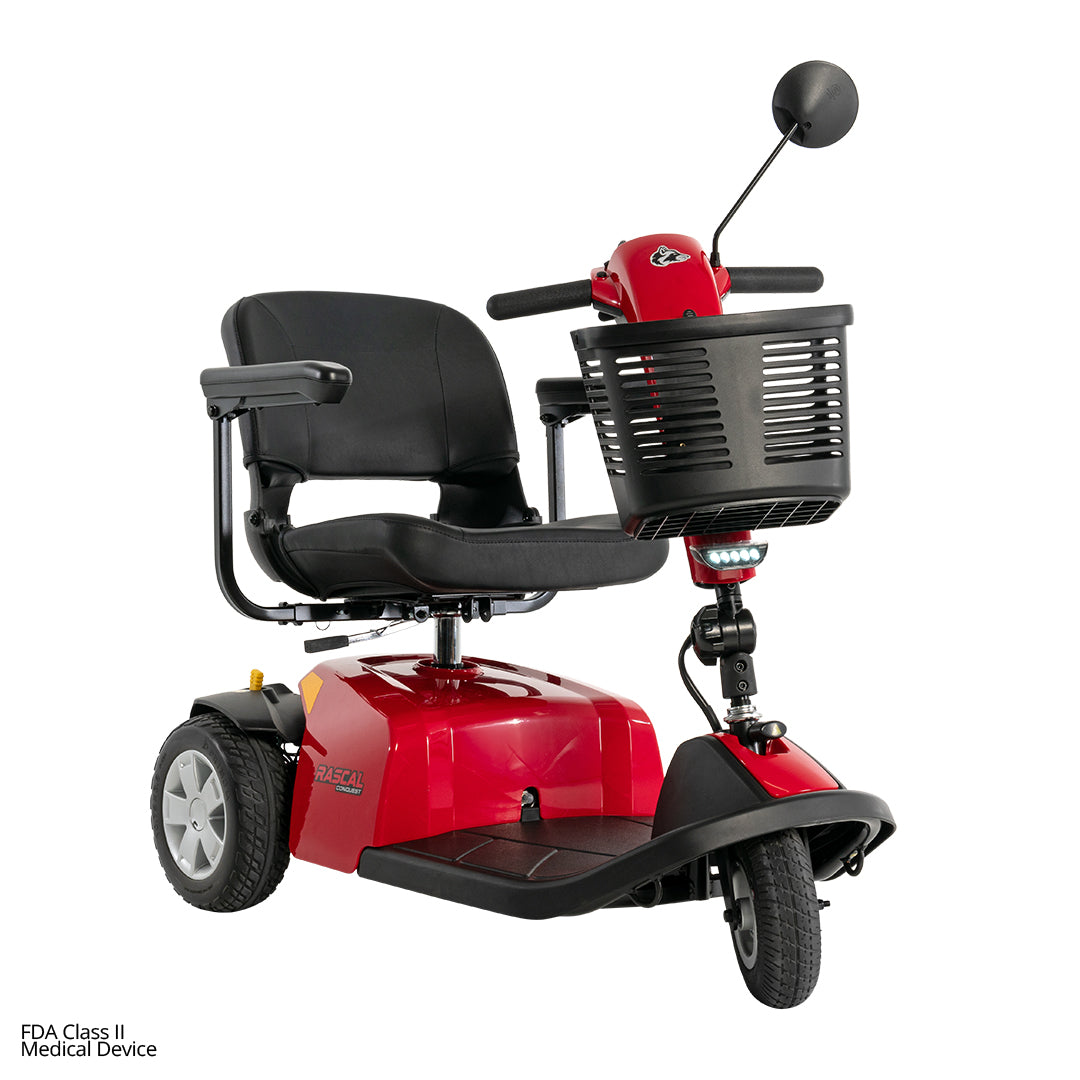

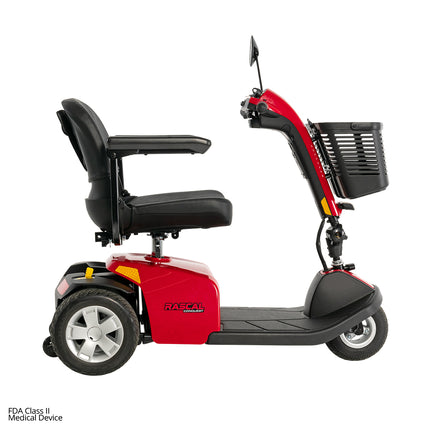

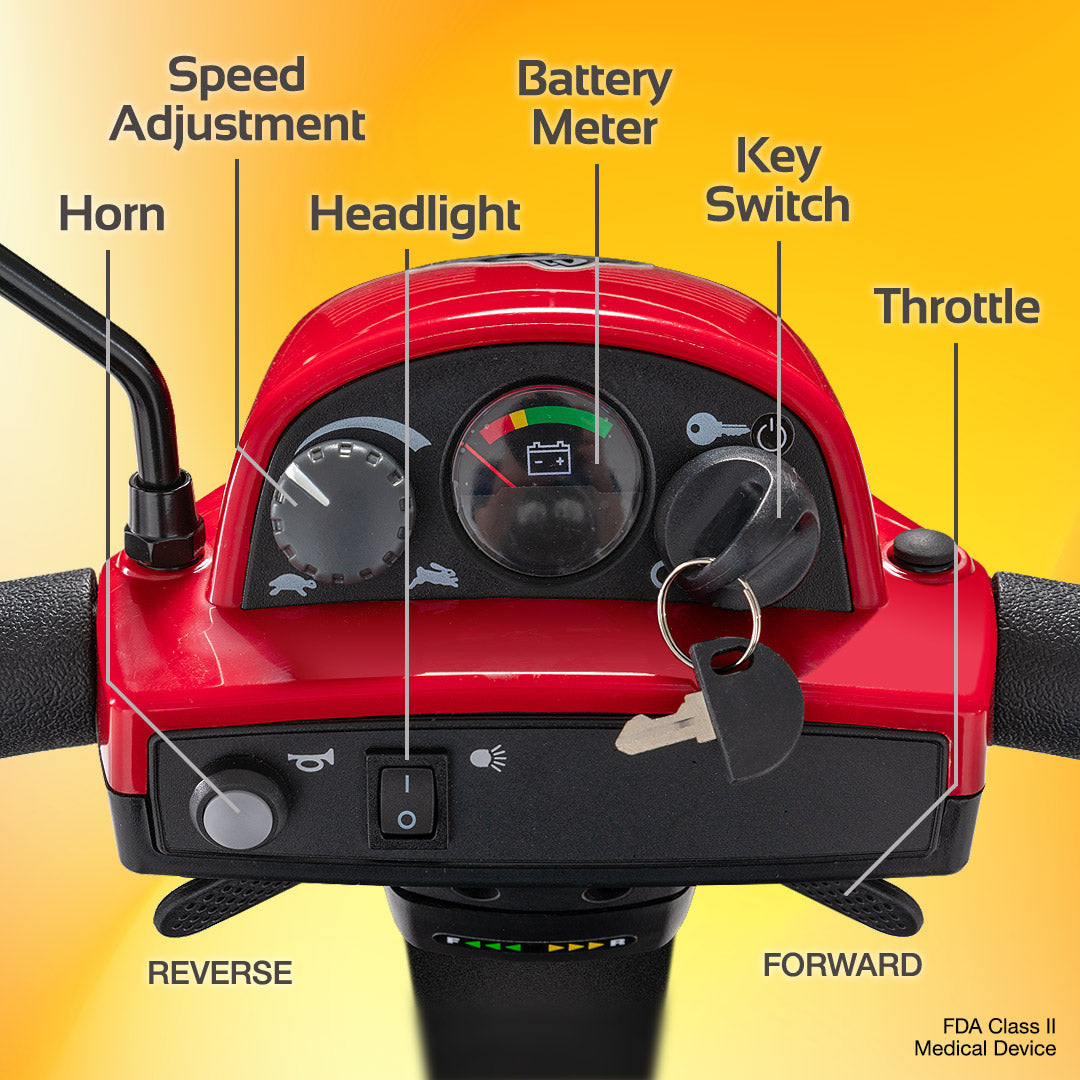

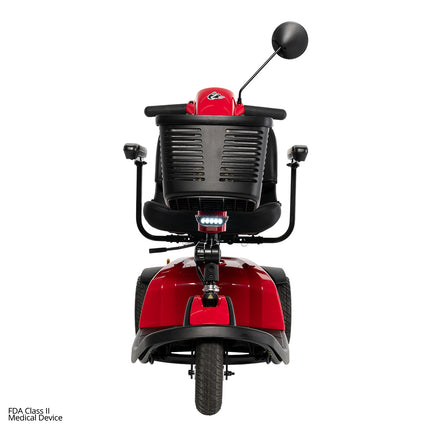

For durability and maneuverability to meet your needs, turn to the Rascal® Conquest 3-Wheel mobility scooter. Its three 10-inch solid tires help you make tight turns to confidently navigate narrow environments, while a 350-lb. weight capacity and battery range of up to 15.4 miles (at 200 lbs.) will keep you powered throughout all the day’s activities. With an LED headlight to illuminate the path ahead, ride day or night. For personalized comfort, adjust the width of the armrests, angle of the tiller, and height of the seat to your liking. Plus, the swivel seat function allows you to make transfers safely and access a variety of surfaces. The Rascal® Conquest 3-Wheel is an FDA Class II Medical Device, meeting the most stringent testing standards for a top-quality mobility experience.
Category | Specification |
---|---|
Model Numbers | 3-Wheel: RSC103; 4-Wheel: RSC104 |
Weight Capacity | 350 lbs. |
Speed (Maximum)1 | 6 mph |
Ground Clearance2 | 2.44 in. at motor |
Turning Radius2 | 3-Wheel: 38.78 in. 4-Wheel: 51.75 in. |
Reversing Width (K-turn)2 | 3-Wheel: 50.28 in. 4-Wheel: 63.74 in. |
Overall Length2 | 3-Wheel: 44.65 in. 4-Wheel: 46.97 in. |

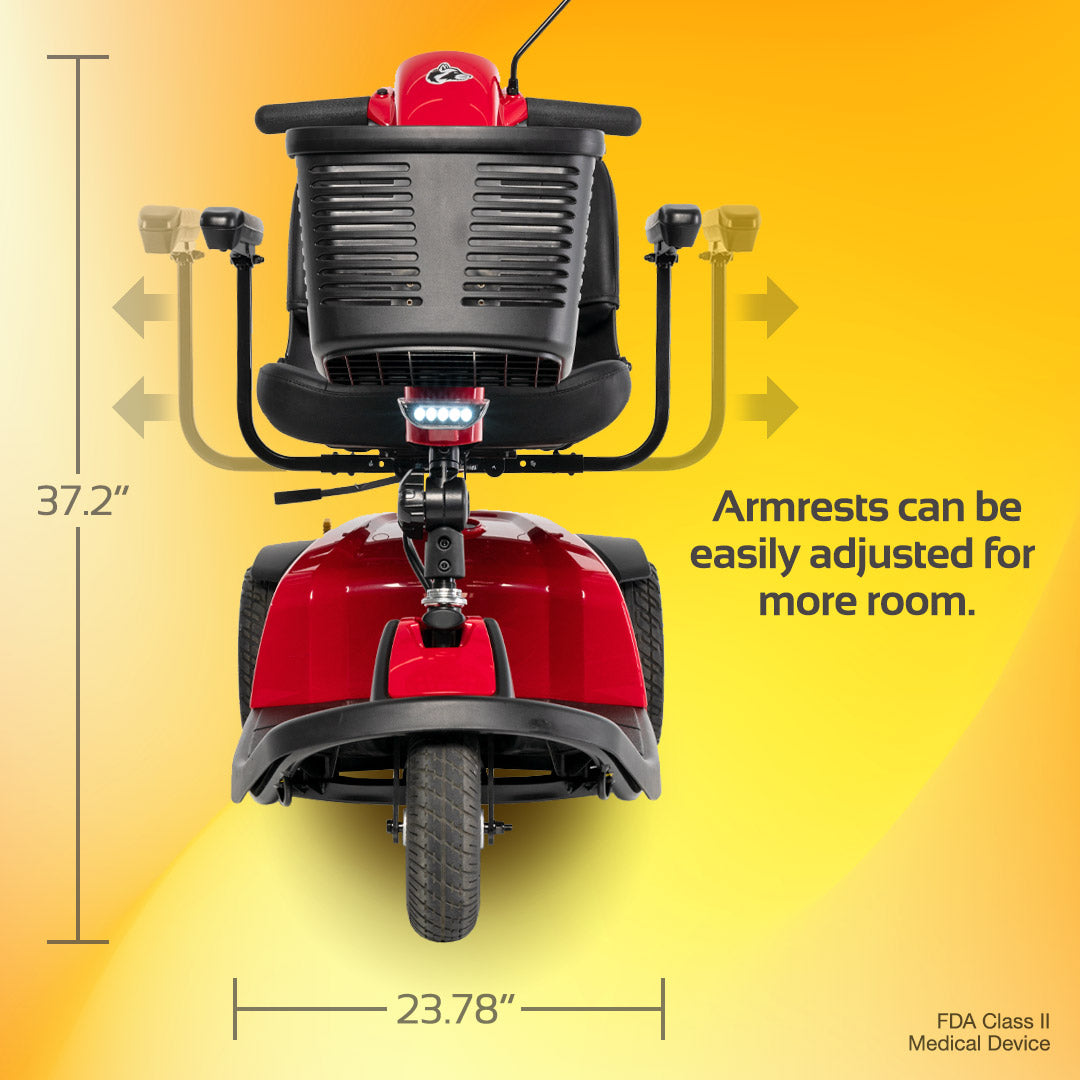

Overall Width2 | 23.78 in. |
Tires2 | 3-Wheel Front: 9 in. solid 4-Wheel Front: 10 in. solid Rear: 10.75 in. solid |
Range Per Charge1,4 | 3-Wheel: Up to 15.4 miles at 200 lbs. 3-Wheel: Up to 12.4 miles at 350 lbs. 4-Wheel: Up to 16.9 miles at 200 lbs. 4-Wheel: Up to 10.5 miles at 350 lbs. |

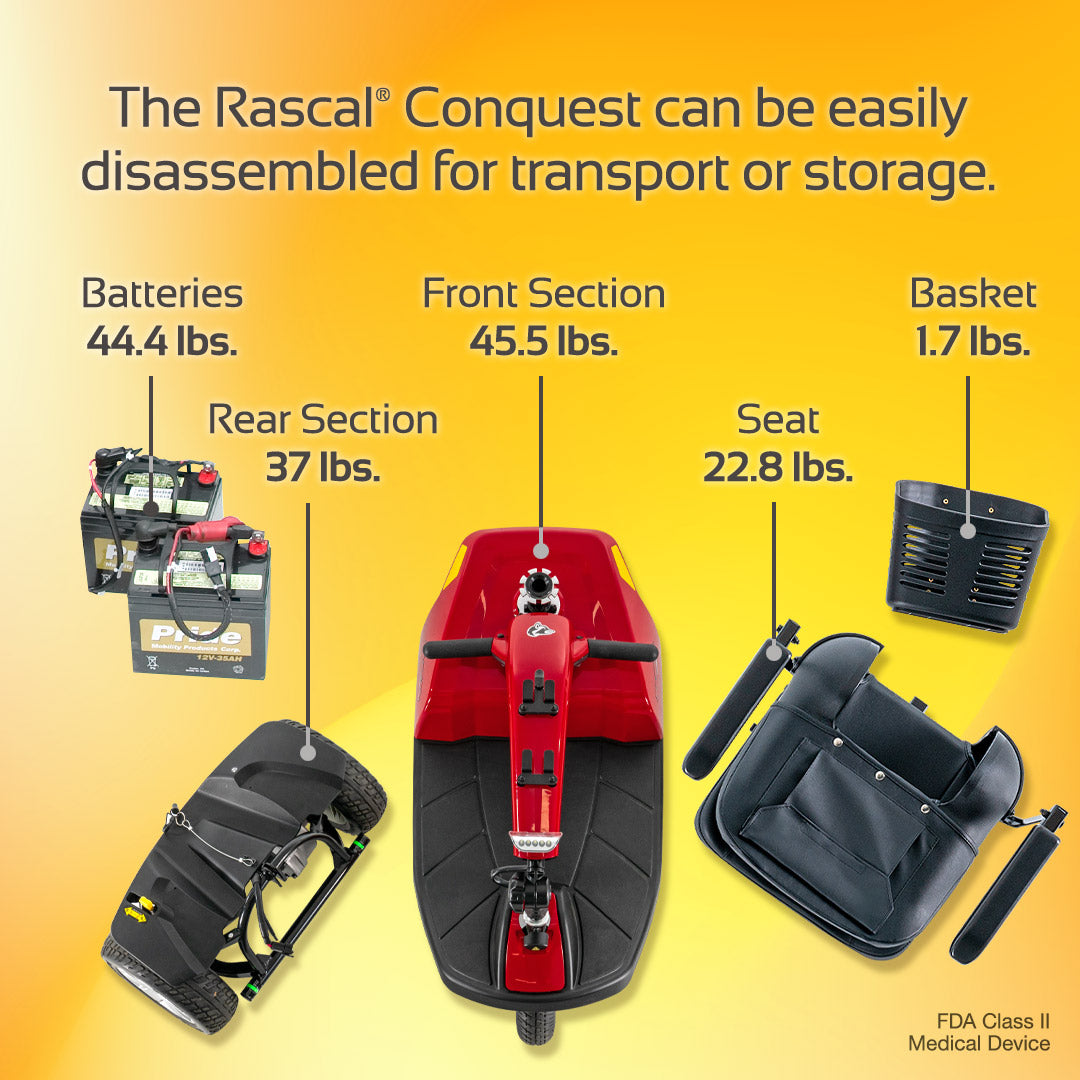

Total Weight Without Batteries5 | 3-Wheel: 120 lbs. 4-Wheel: 124.8 lbs |
Standard Seating2 | Type: Folded Moldable Plastic Material: Black Vinyl Weight: 22.8 lbs. Width: 17 in. Depth: 17 in. |
Drive System | Rear-wheel drive, sealed transaxle, 24-volt DC motor |
Dual Braking System | Regenerative and electromechanical |
Battery Requirements1 | Two 12-volt, deep-cycle |
Battery Pack Weight6 | 22.2 lbs. |
Battery Charger | Off-board charger |
Freewheel Operational Force | Less than 60 N |
Drive Control Operational Force | Less than 5 N |
Maximum Rated Slope | 6° |
Maximum Obstacle Climbing Ability (Ascending/Descending)2 | 3-Wheel: 2.95 in. 4-Wheel: 3.54 in. |
Seat to Deck Height | 16.25 - 17.75 in |
Seat Height | 15.5 in |
Overall Height | 37.2 - 38.23 in. |
Measured Sound Level (A-weighted) | Less than 65 dB |
1 Varies with base model, user weight, terrain type, battery amp hour rating (Ah), battery charge, battery condition, motors, controller type, tire type, and tire condition. This specification is subject to a variance of +10%, -5%.
2 Due to manufacturing tolerances and continued product improvement, this specification can be subject to a variance of (+ or -) 3%.
3 AGM, Gel-Cell, Lithium-ion, or Hybrid Gel (Hybrid Gel is defined as Nano Silica Gel Electrolyte with High Quality Glass Mat Separators) type required. See III. “Batteries and Charging.”
4 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
5 Includes standard seat.
6 Battery weight may vary based on manufacturer
NOTE: This product conforms to all applicable ANSI/RESNA and ISO 7176 Series standards. All specifications subject to change without notice.
