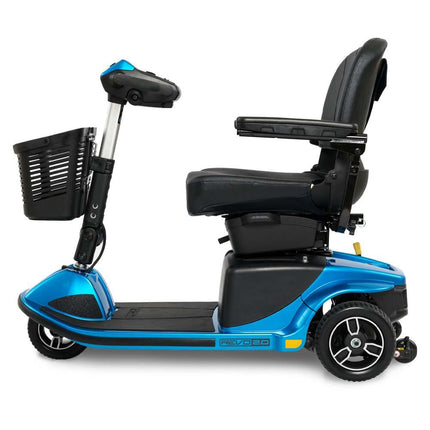

Experience the Revo 2.0, a new class of scooter that combines an array of features into one great package. Tough and built to last, the Revo 2.0 offers rugged dependability you expect from luxury mid-size scooters. Comfort-Trac Suspension (CTS) ensures a smooth and comfortable ride over varied terrain. Experience convenient, feather-touch disassembly for portability that is comparable to our Travel Mobility line. Enjoy standard under seat storage and speeds up to 5.2 mph. Ride on with the Revo 2.0!

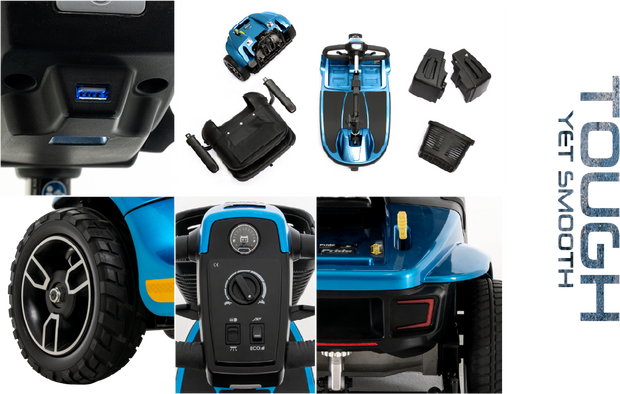

- Comfort-Trac front and rear suspension
- Durable and stylish rear bumper
- Easily accessible tie down points (for transport of unoccupied scooter)
- Easily adjustable tiller
- Easily charge the batteries on or off the unit
- Pride’s exclusive black, flat-free, non-scuffing tires
- Seat designed for extreme comfort
- Standard front basket
- Ultra heavy-duty drivetrain with 70 amp controller
- User-friendly console
- USB mobile device charging port

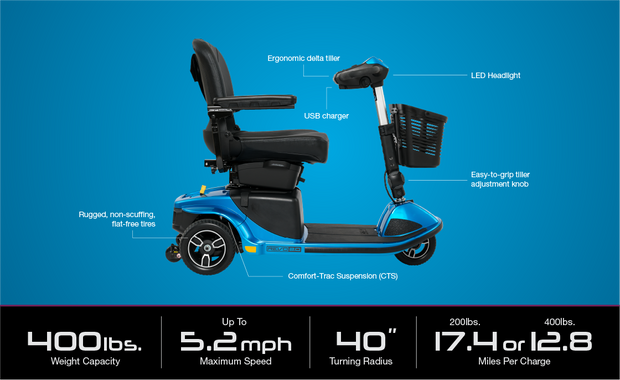

Model: Revo 2.0 3-Wheel
Maximum Speed: Up to 5.2 mph
Ground Clearance: 3.25" at mid-frame
Turning Radius: 40"
Overall Length: 46"
Overall Width of Base: 20.75"
Seat-to-Ground Height Range: 22-23.5"
Seat Type: Compact, Foldable, Black Vinyl 20"w x 18"d
Weight: 120 lbs. (w/out batteries)
Seat-to-Deck Height Range:
Battery Weight: 25 lbs. each
Battery Requirements: U1 Batteries
Maximum Range Per Charge: Up to 17.4 Miles (200 lbs), Up to 12.8 Miles (400 lbs)
Battery Charger: 3.5 amp
Maximum Weight Capacity: 400 lbs.
Suspension: Front and rear
Weight of Heaviest Piece: 48 lbs. (rear section)
NOTE: FOR RETURN REQUESTS, CUSTOMERS ARE RESPONSIBLE FOR A 25% RE-STOCKING FEE OF THE ORIGINAL ITEM PRICE + $115.00 BACKFREIGHT CHARGE
◦ LIFETIME LIMITED WARRANTY ON FRAME
For the lifetime of your product from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Structural Frame Components, including:
- Main Frame
- Seat Post
- Tiller Frame
◦ 2-YEAR LIMITED WARRANTY ON ELECTRONICS & DRIVETRAIN
For two (2) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship. Any warranty claims for electronic assemblies may become void if damage results from the use of parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider:
- Motor Brake (electronic function ONLY)
Also, Electronic Assemblies including:
- Electronic Controllers
- Any Other Electrical Subassembly
◦ BATTERY SIX-MONTH WARRANTY
The battery is covered by a separate six-month warranty, provided by the battery manufacturer. The batteries are
not warranted by Pride.
◦ WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
- ABS Plastic Shrouds
- Brake Pads
- Motor Brushes
- Tires and Tubes
- Upholstery and Seating
- Circumstances beyond the control of Pride
- Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products
- Repairs and/or modifications made to any part without specific consent from Pride
Exclusions also include components with damage or failure caused by:
- Parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider.
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Use other than normal design specifications
- Improper operation, maintenance, or storage
**NOTE: After the end of your warranty, please contact WSR Solutions at 1-888-584-3095 for all your repair requests.
