FDA Class II Medical Device

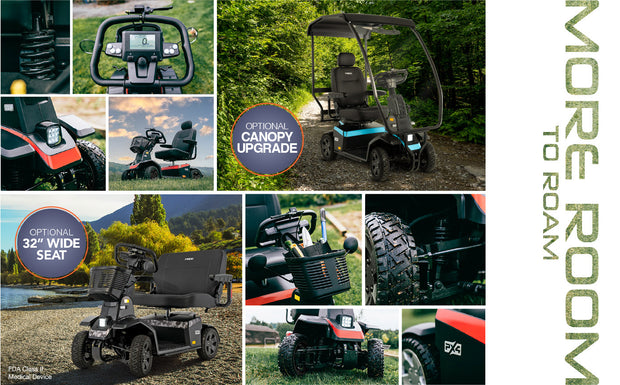

Enter the PX4, the latest bold innovation from Pride Mobility, and your conduit for charting out new destinations. It boasts a 500-pound weight capacity and it doesn’t hold it back from ramping up to a top speed of 9.3 mph. Coupled with an impressive 23.4-mile battery range, traveling is a cinch, no matter your destination.
Your life is on the move, so let the PX4 do all the work! Just sit back and enjoy where it takes you.
- NFC key fob for enhanced security
- 500 lb. weight capacity is the industry’s biggest yet
- Impressive top speed of up to 9.3 mph
- Cruises up to 23.4 miles on a single battery charge
- Durable color-through shrouds
- Depth adjustable memory foam seating with 6" slider
- Seat size options that include 18x18-20", 20x18-20", 22x20-22"
- Delta steering wheel with LCD console
- Water-resistant user interface
- Full LED lighting package for maximum visibility and safety
- Pneumatic front and rear tires
- Full suspension to ensure a smooth ride over uneven terrain
- Supplemental hand brake for additional stopping power
- Choice of five unique vinyl accent color options with a 7-year outdoor durability rating
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*

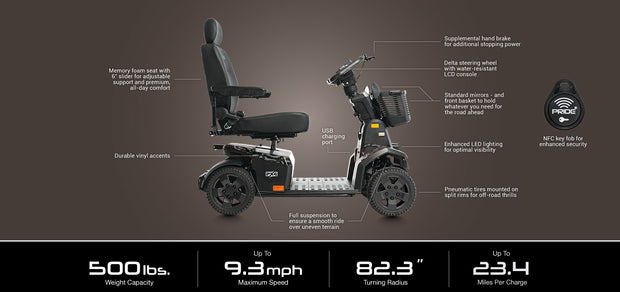

Model: PX4
Model Number:
Front Tires: 13” Pneumatic
Rear Tires: 13” Pneumatic
Maximum Speed: Up to 9.3 mph
Ground Clearance: 3.5” to motor, 4.4” at mid-deck
Turning Radius: 82.28”
Overall Length: 55.9”
Overall Width of Base: 27.05”
Seat-to-Deck Height:
Seat Type: Type: High back, Weight: 52.6 lbs., Material: Black vinyl, Dimensions: Width: 18”, Depth: 18”
Battery Weight: 48.8 lbs. each
Battery Requirements: 12V, sealed lead-acid, non-spillable deep-cycle 75 AH
Maximum Range Per Charge: Up to 23.4 Miles
Battery Charger: 8 amp, off-board
Maximum Weight Capacity: 500 lbs.
Suspension Type: Full Suspension
Drive System: Rear-wheel drive, sealed transaxle, 24-volt DC motor
Braking System: Dual: Regenerative and Electromechanical
NOTE: FOR RETURN REQUESTS, CUSTOMERS ARE RESPONSIBLE FOR A 25% RE-STOCKING FEE OF THE ORIGINAL ITEM PRICE + $115.00 BACKFREIGHT CHARGE
◦ LIFETIME LIMITED WARRANTY ON FRAME
For the lifetime of your product from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Structural Frame Components, including:
- Main Frame
- Seat Post
- Fork
- Tiller Frame
◦ 2-YEAR LIMITED WARRANTY ON ELECTRONICS & DRIVETRAIN
For two (2) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship. Any warranty claims for electronic assemblies may become void if damage results from the use of parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider:
- Transaxle
- Bushings
- Brake
- Motor Brake (electronic function ONLY)
- Bearings
Also, Electronic Assemblies including:
- Electronic Controllers
- Harnesses
- Chargers
- Any Other Electrical Subassembly
◦ BATTERY SIX-MONTH WARRANTY
The battery is covered by a separate six-month warranty, provided by the battery manufacturer. The batteries are
not warranted by Pride.
◦ WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
- ABS Plastic Shrouds
- Brake Pads
- Motor Brushes
- Tires and Tubes
- Upholstery and Seating
- Fuses/Bulbs
- Circumstances beyond the control of Pride
- Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products
- Repairs and/or modifications made to any part without specific consent from Pride
Exclusions also include components with damage or failure caused by:
- Parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider.
- Contamination
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Use other than normal design specifications
- Improper operation, maintenance, or storage
**NOTE: After the end of your warranty, please contact WSR Solutions at 1-888-584-3095 for all your repair requests.
