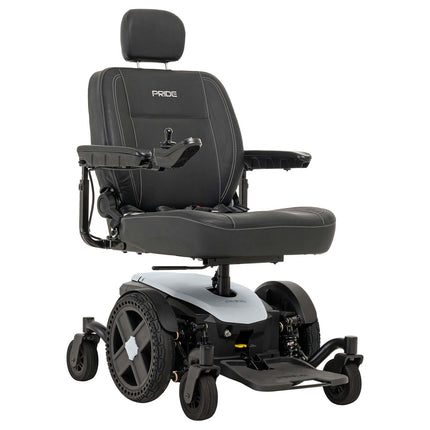

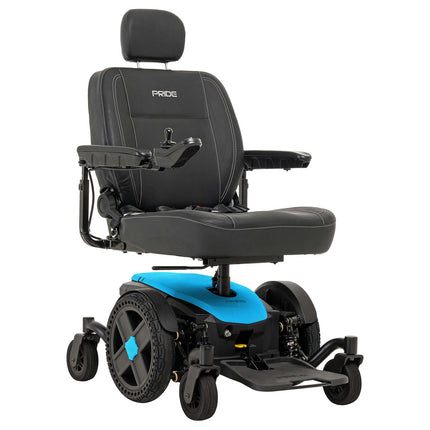

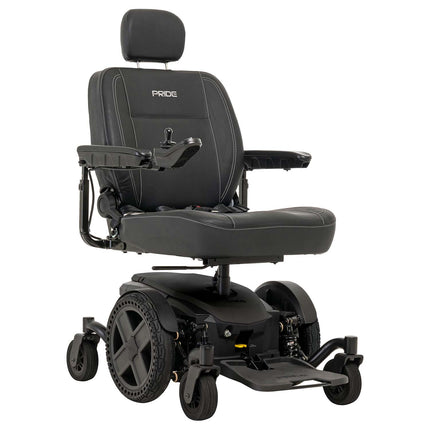

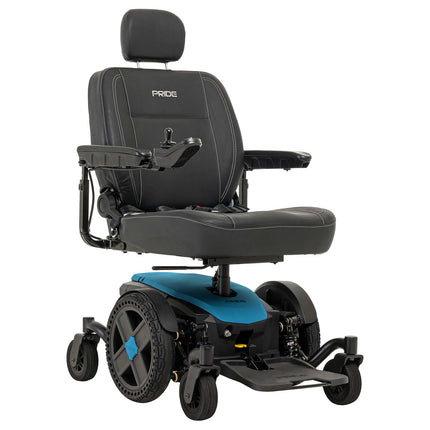

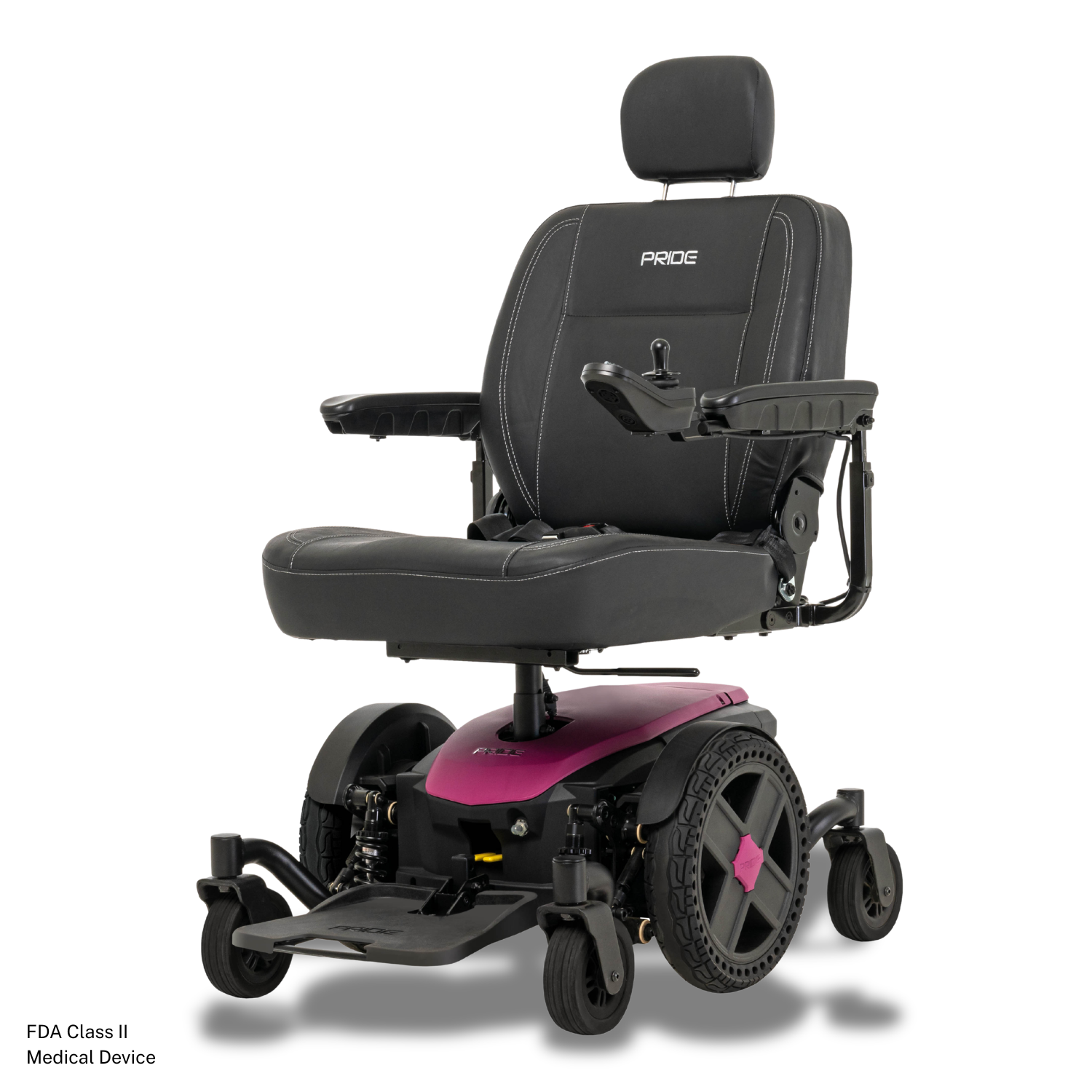

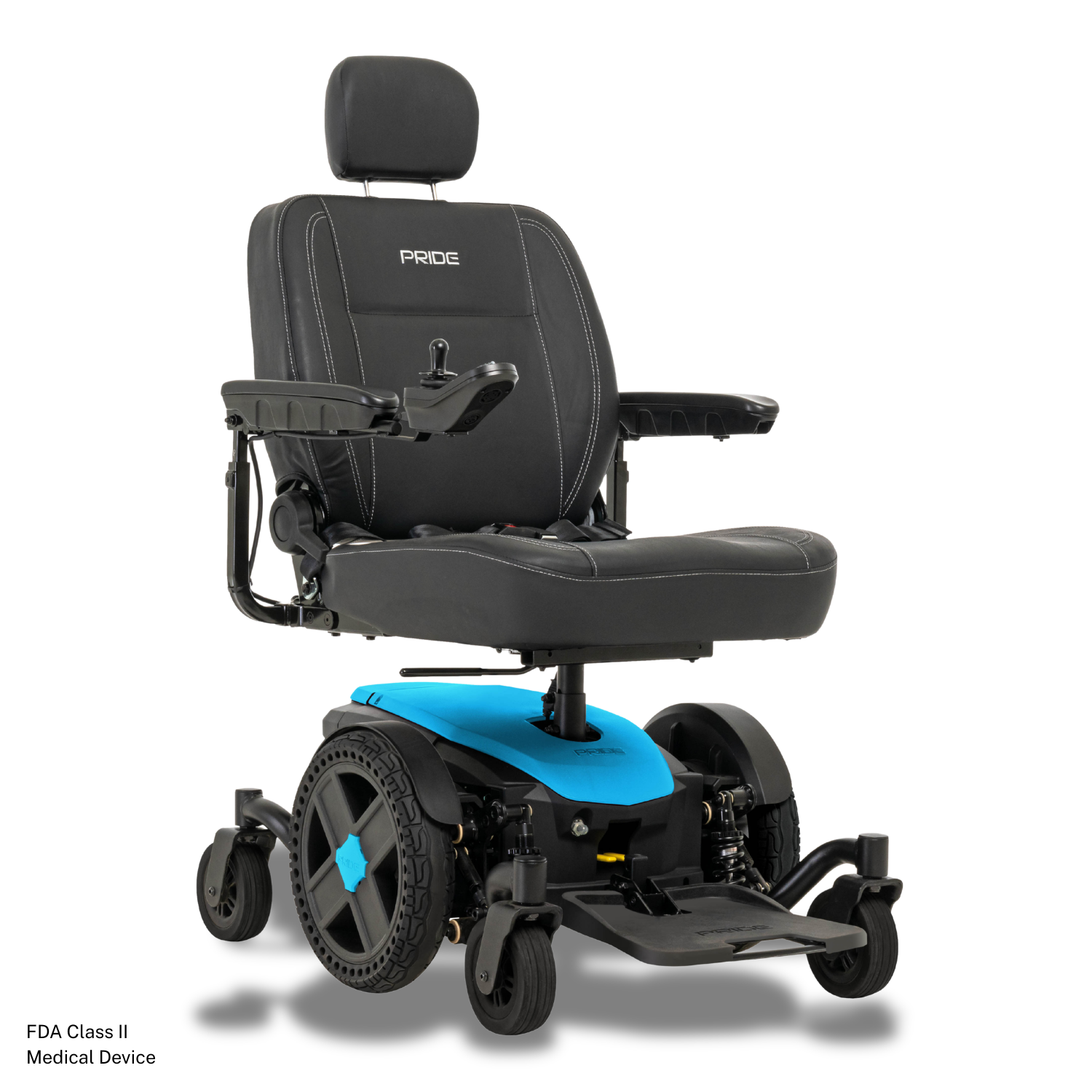

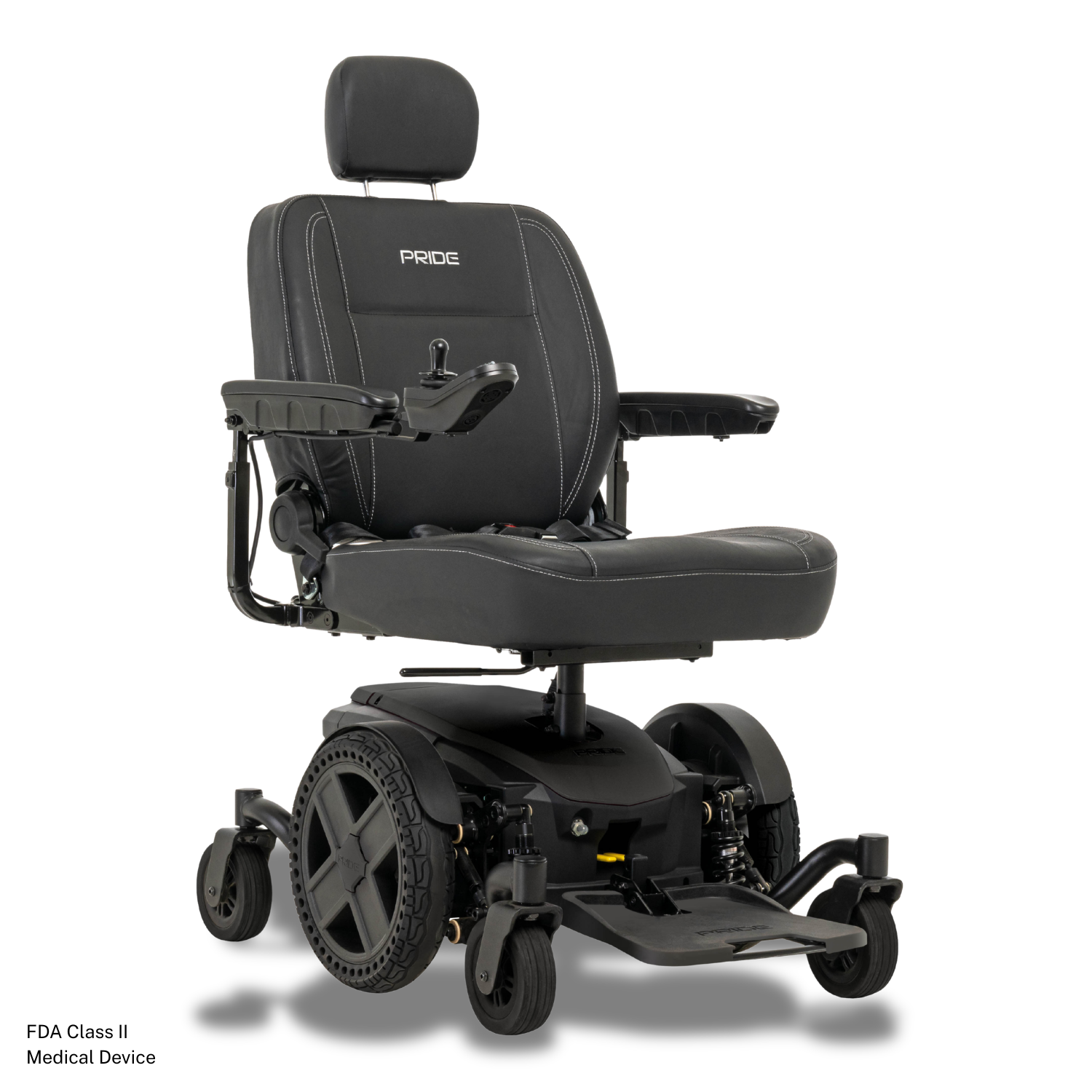

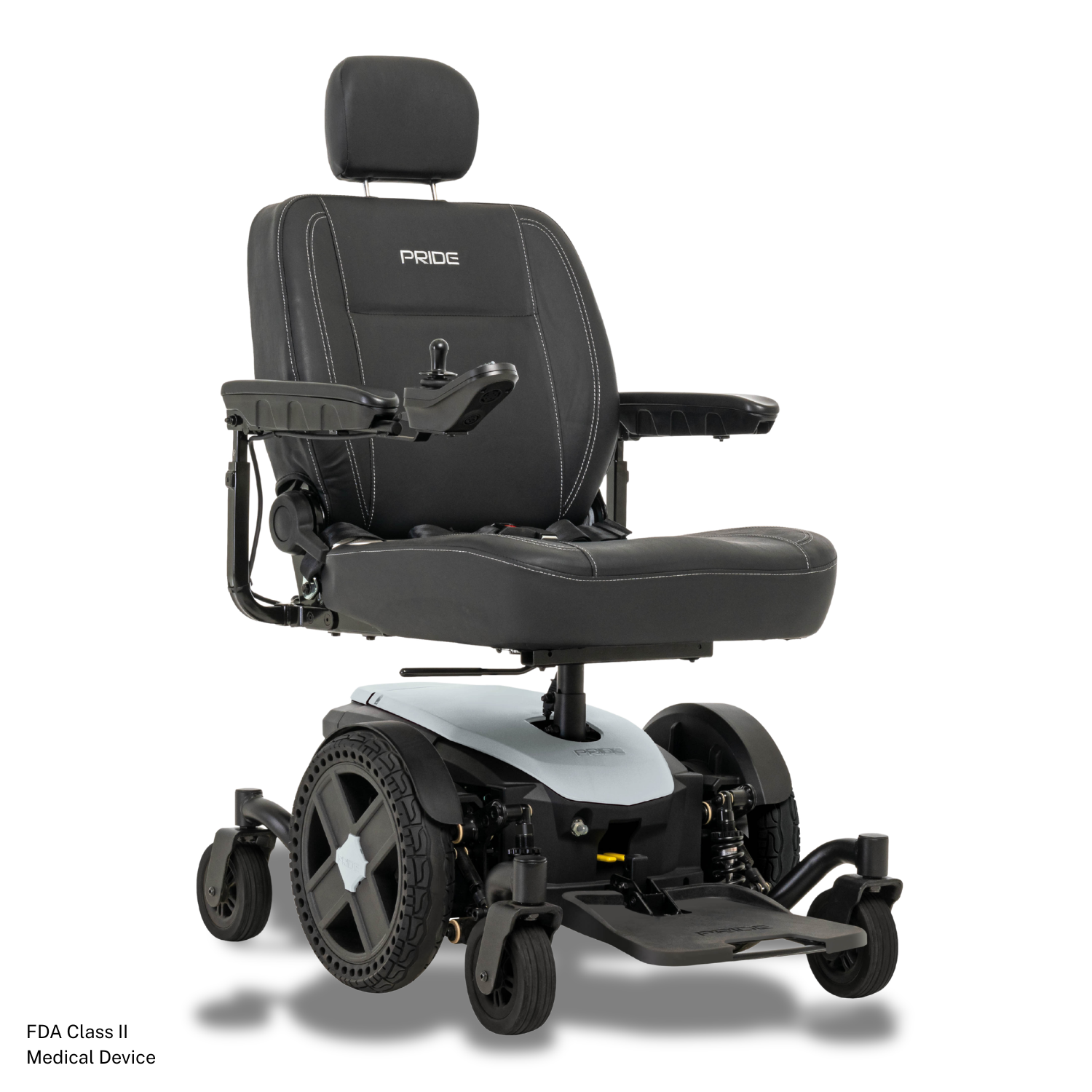

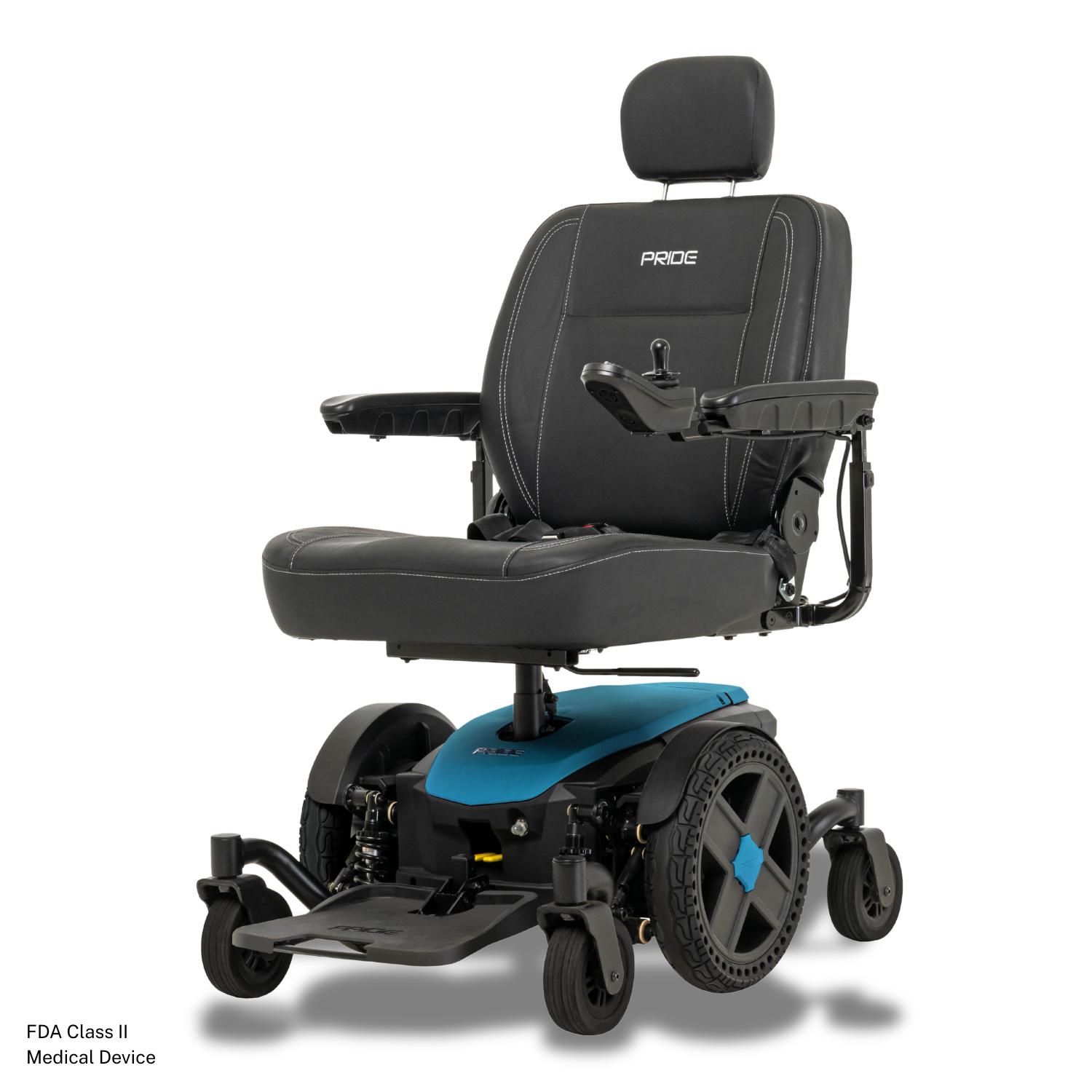

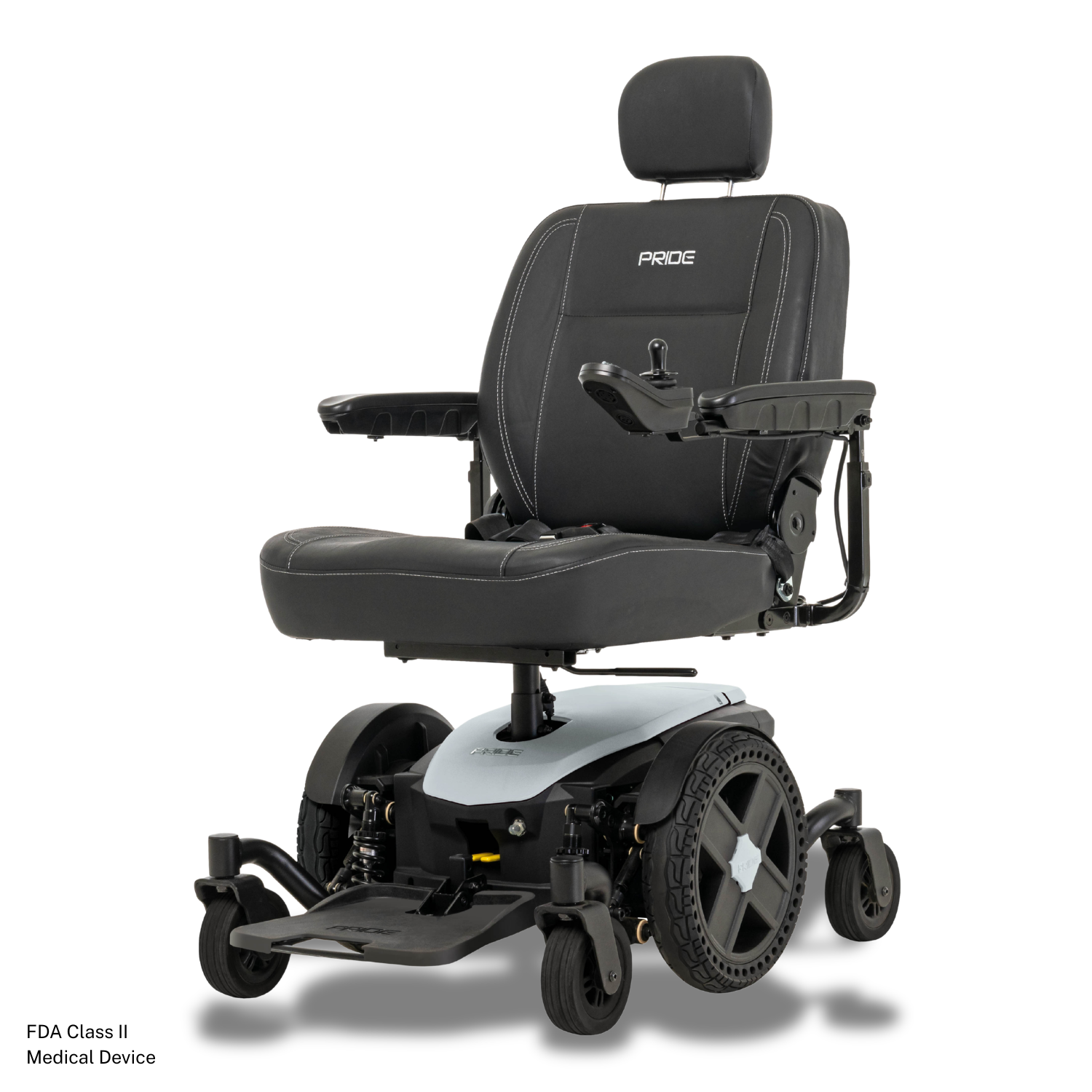

Pride Mobility Jazzy EVO 614 HD Group 2 Power Chair

The Jazzy EVO 614HD has tall 13.75-inch drive wheels, the centerpiece for Pride’s beloved Mid-Wheel 6 platform. Active-Trac ATX Suspension adapts to the terrain, so grassy fields and gravel paths feel smoother than they ever have before. And now, with a new memory foam seat, your Jazzy EVO 614HD is ready to provide all-day comfort right out of the box.

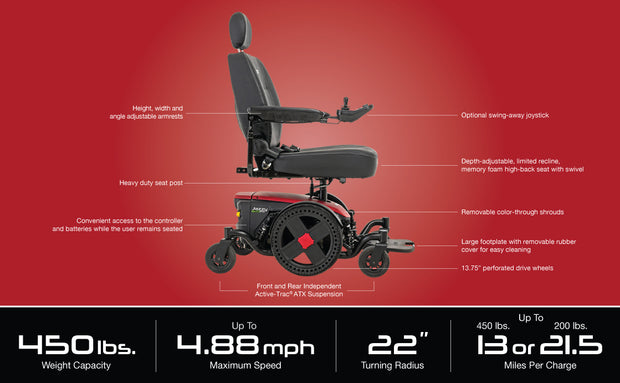

• 450 lbs. weight capacity
• 3” ground clearance.
• 13.75” perforated mid-wheel drive tires.

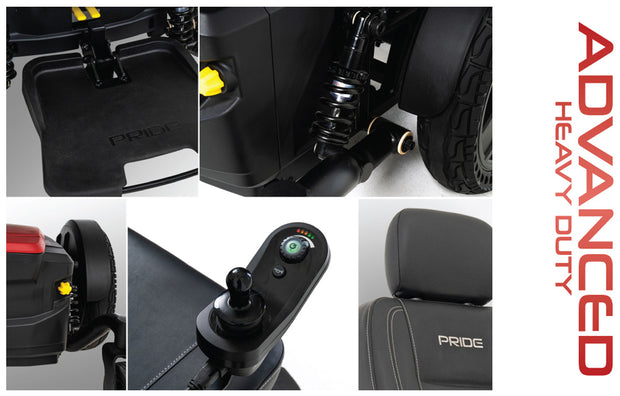

• Front and rear independent Active-Trac ATX Suspension.
• Removable matte-finish color-through shrouds.
• Depth-adjustable, limited recline, memory foam heavy duty single seat post allows the user to swive.
• Access to controller and batteries without the user needing to exit the chair.
• Standard lap belt: 60” - 18” or 20” W, 70” - 22” W.

Model: Jazzy EVO 614HD

Weight Capacity: 450 lbs

Turning Radius: 22”

Width: 25.75”

Length: 40.5”

Maximum Speed: Up to 4.88 mph

Ground Clearance: 3”

Front Wheels: 6”

Drive Wheels: 13.75” perforated

Rear Wheels: 6”

Drivetrain: Two in-line HD motors

Braking System: Regenerative and electromechanical

Suspension Type: Full independent front and rear Active-Trac ATX Suspension

High-Back Seat (max. size): 18” x 18-20”, 20” x 18-20”, 22” x 20-22”

High-Back Seat-to-Floor Range: 22-24”

Per Charge Range: Up to 13 miles at 450 lbs. Up to 21.5 miles at 200 lbs.

Standard Electronics: 60A Dynamic Linx

Battery Requirements: (2) NF-22

Battery Charger: 5 amp, off-board

NOTE: FOR RETURN REQUESTS, CUSTOMERS ARE RESPONSIBLE FOR A 25% RE-STOCKING FEE OF THE ORIGINAL ITEM PRICE + $115.00 BACKFREIGHT CHARGE

Return Policy

◦ 5-YEAR WARRANTY ON FRAME

For five (5) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

• Main Frame

◦ 13-MONTH LIMITED WARRANTY

For thirteen (13) months from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

Electronic Assemblies including:

• Charger Assembly
• Controller
• Joystick

Main Frame Assemblies, including:

• Metal Seat Framing

Other components, including:

• Electrical Harnesses
• Accessories
• Anti-tip Forks
• Front Riggings
• Bearings and Bushings
• Motor/Gearbox Assembly
• Brakes (Electronic Function ONLY)
• Caster Forks
• Front Rigging Mounting Brackets

◦ BATTERY 13-MONTH WARRANTY

The batteries are covered by a separate thirteen (13) month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.

◦ WARRANTY EXCLUSIONS

This warranty does not extend to those items which may require replacement due to normal wear and tear.

• ABS Plastic Shrouds
• Brake Pads
• Motor Brushes
• Tires and Tubes
• Upholstery and Seating
• Fuses/Bulbs
• Circumstances beyond the control of Pride
• Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products
• Repairs and/or modifications made to any part without specific consent from Pride

Exclusions also include components with damage or failure caused by:

Parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider.

Contamination

Abuse, misuse, accident, or negligence

Battery fluid spillage or leakage

Use other than normal design specifications

Improper operation, maintenance, or storage

Warranty Insert

**NOTE: After the end of your warranty, please contact WSR Solutions at 1-888-584-3095 for all your repair requests.

Brochures

◦ Jazzy EVO 614 HD Brochure (US)

Owner's Guides

◦ Jazzy EVO 614 HD Owner's Manual (US)

◦ Jazzy EVO 614 HD Specification Sheet (US)
