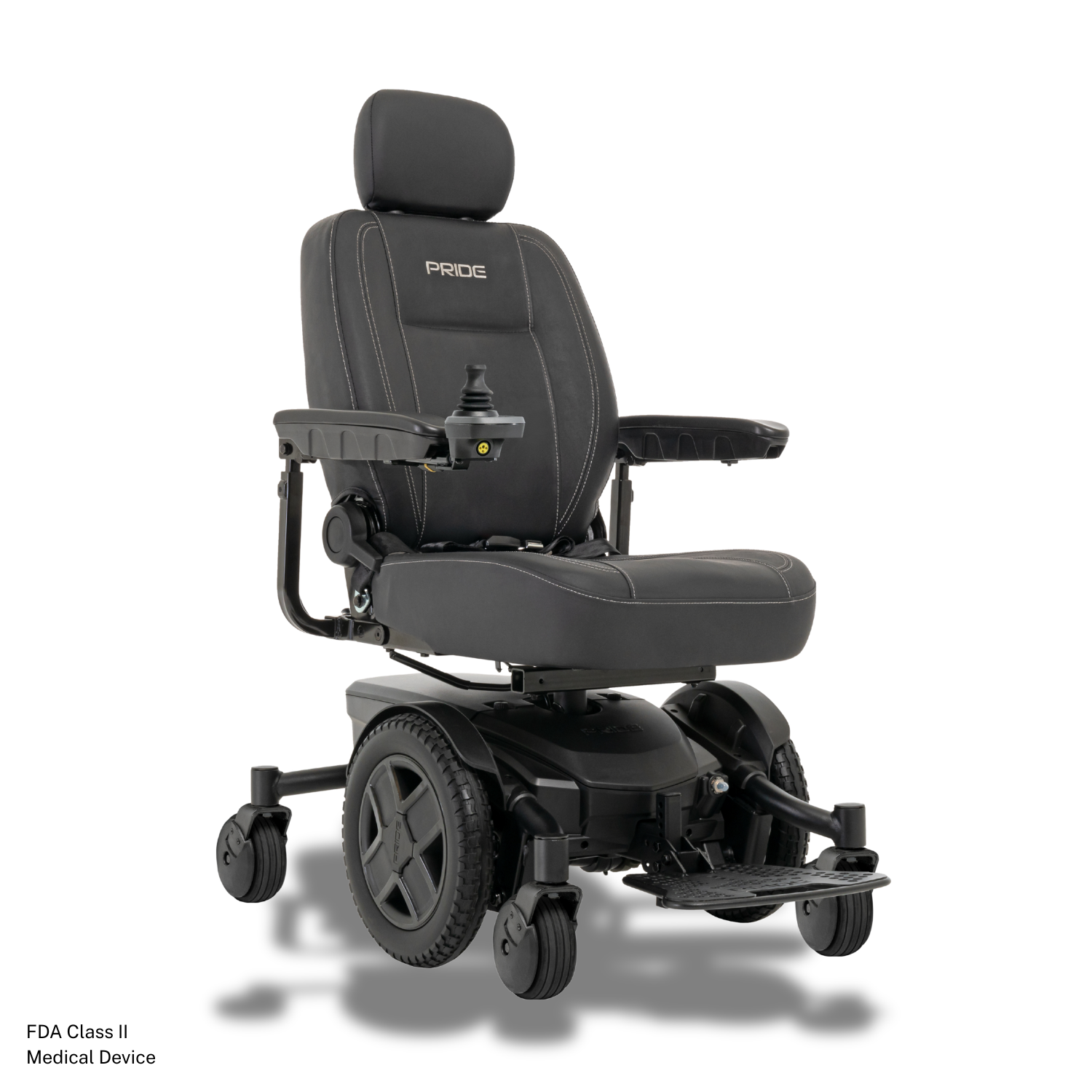

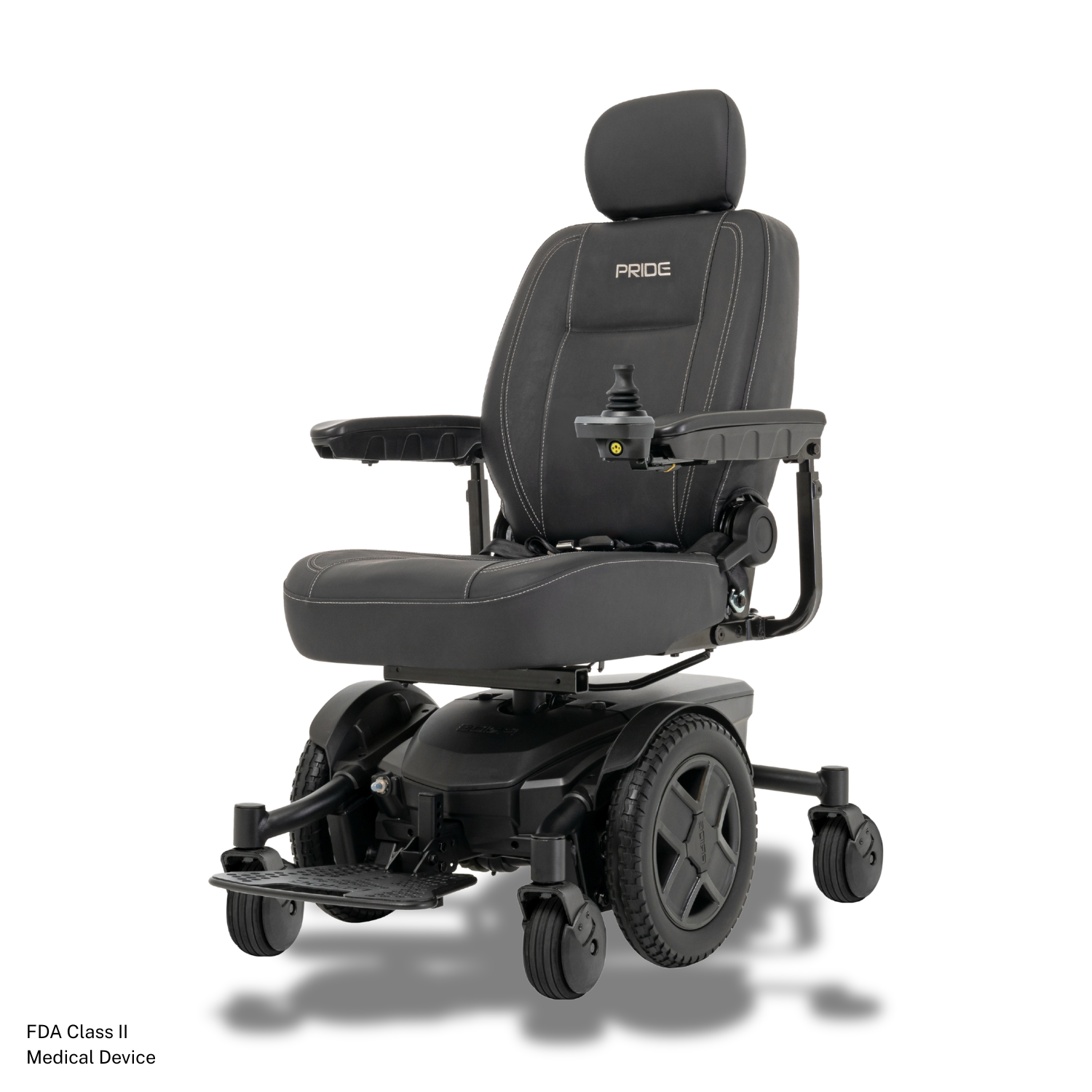

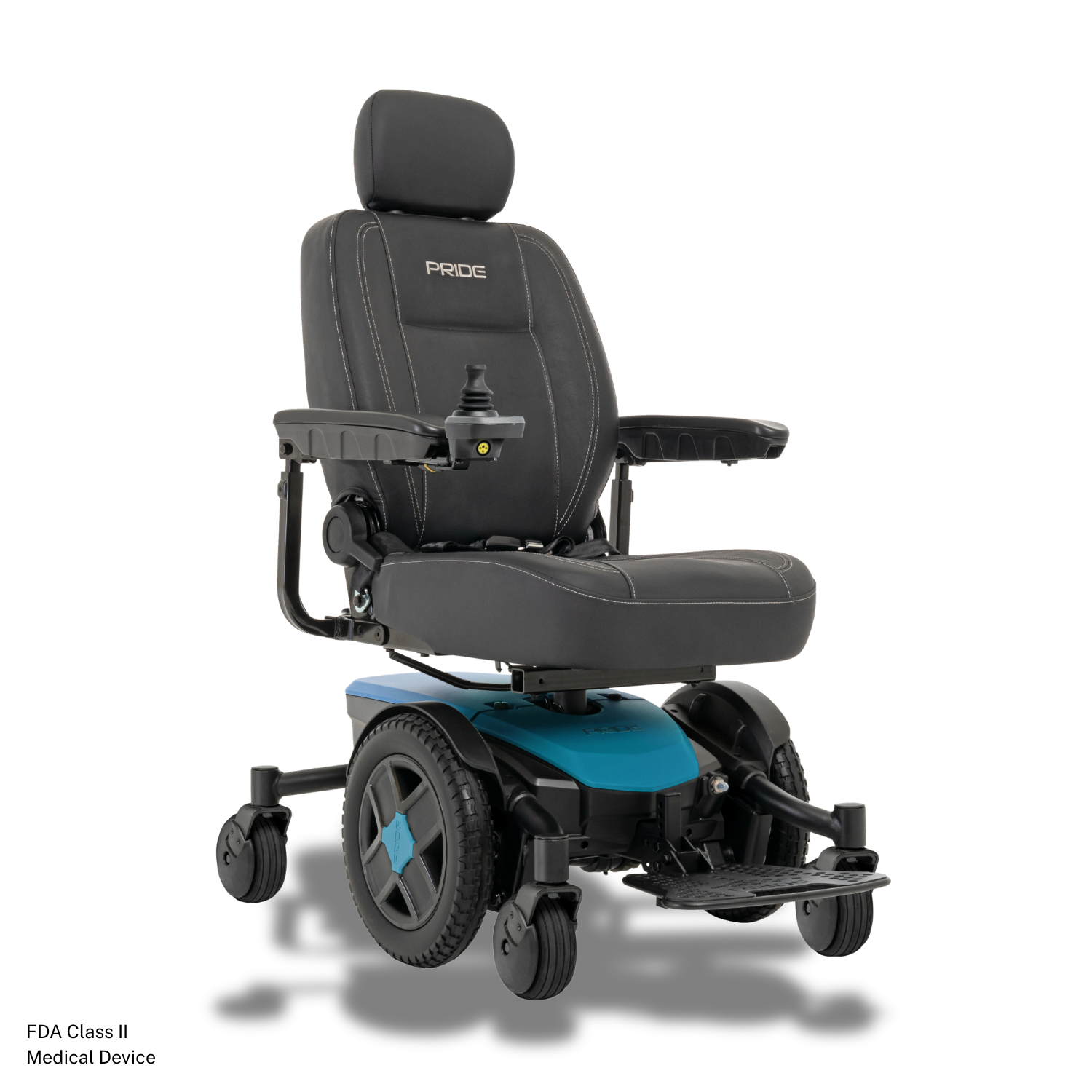

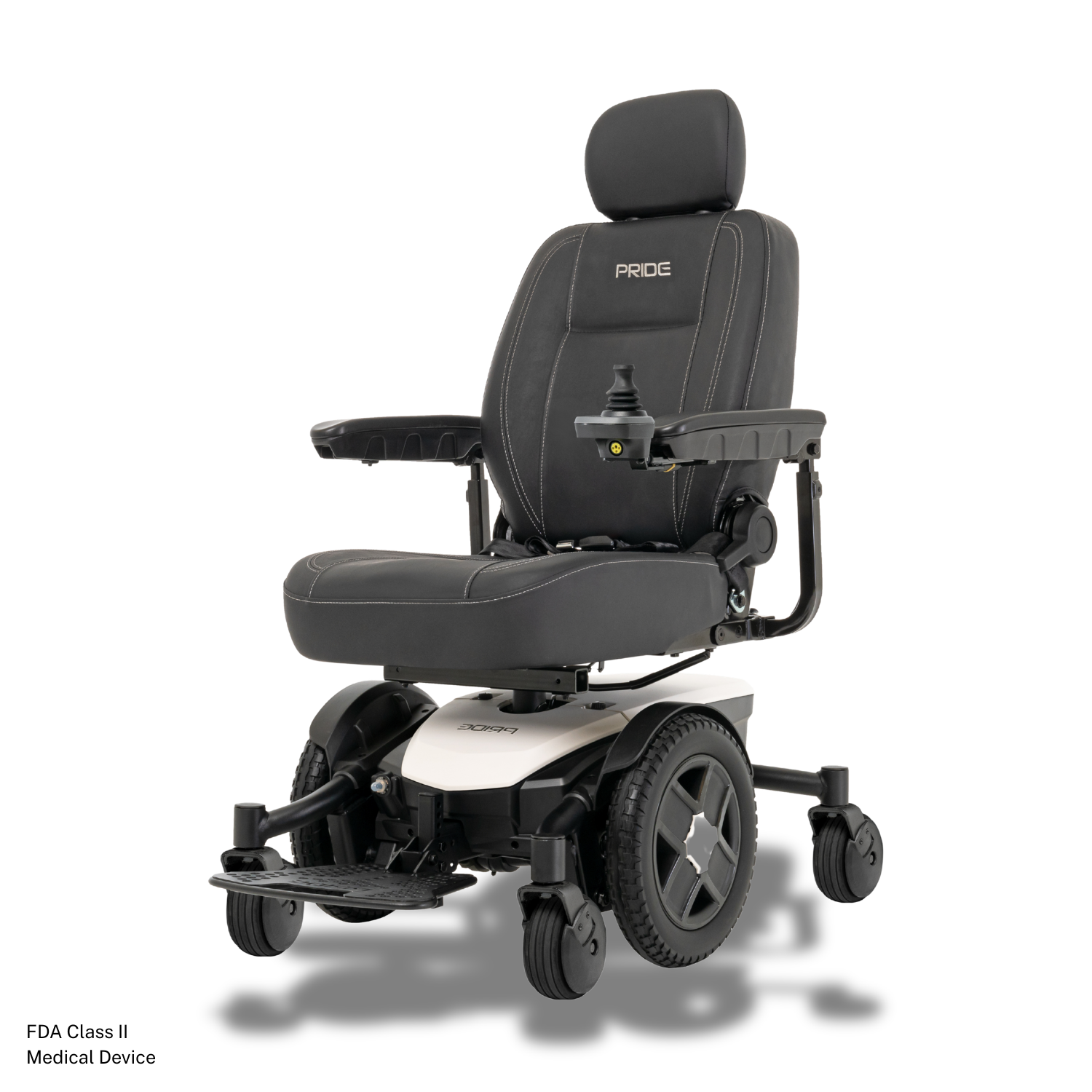

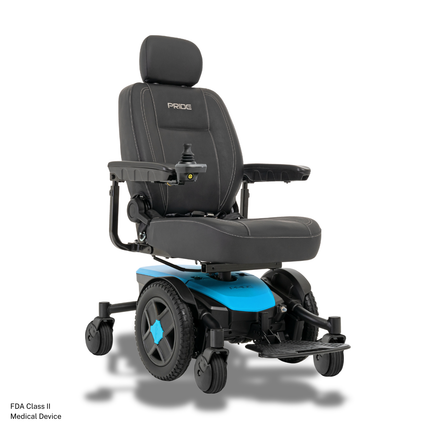

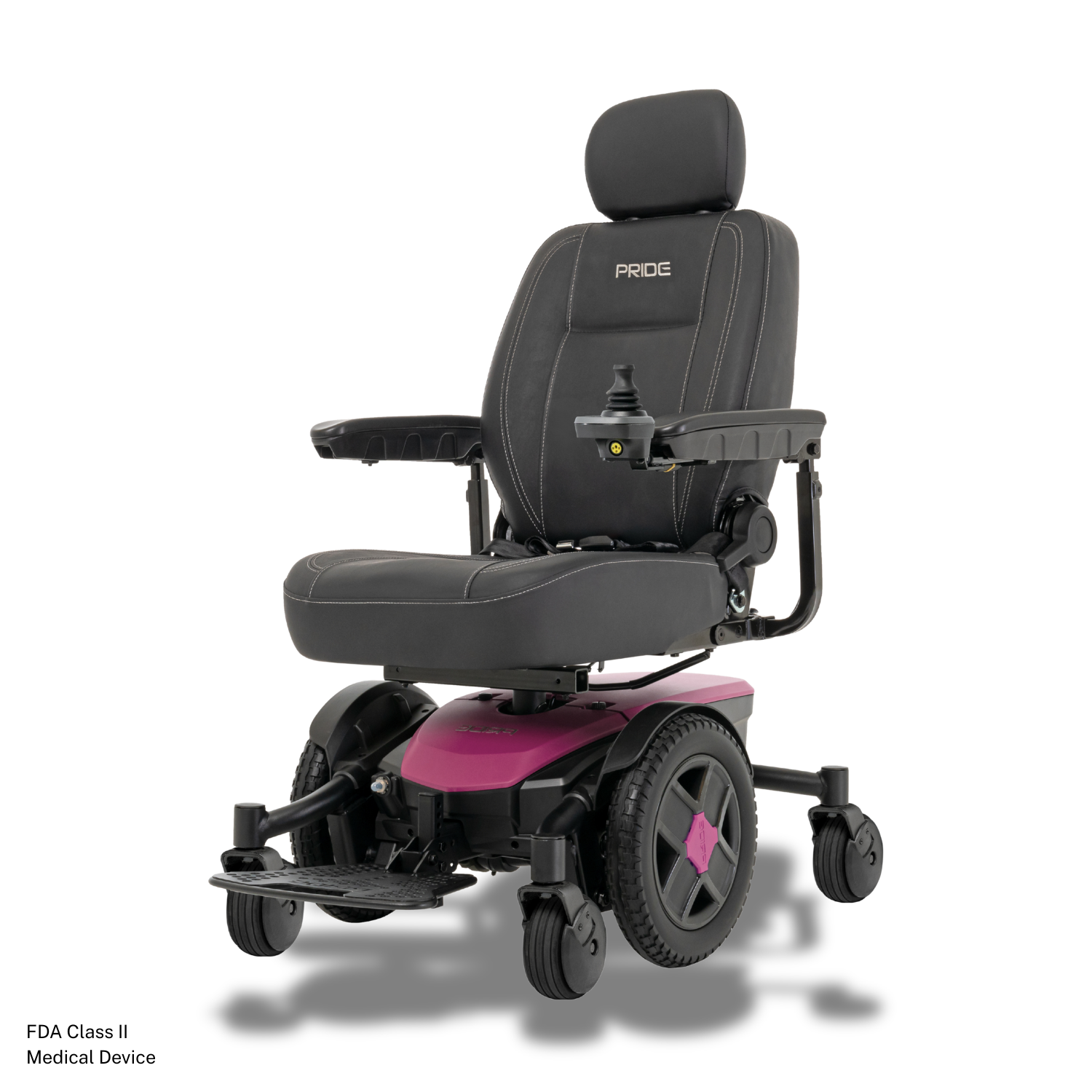

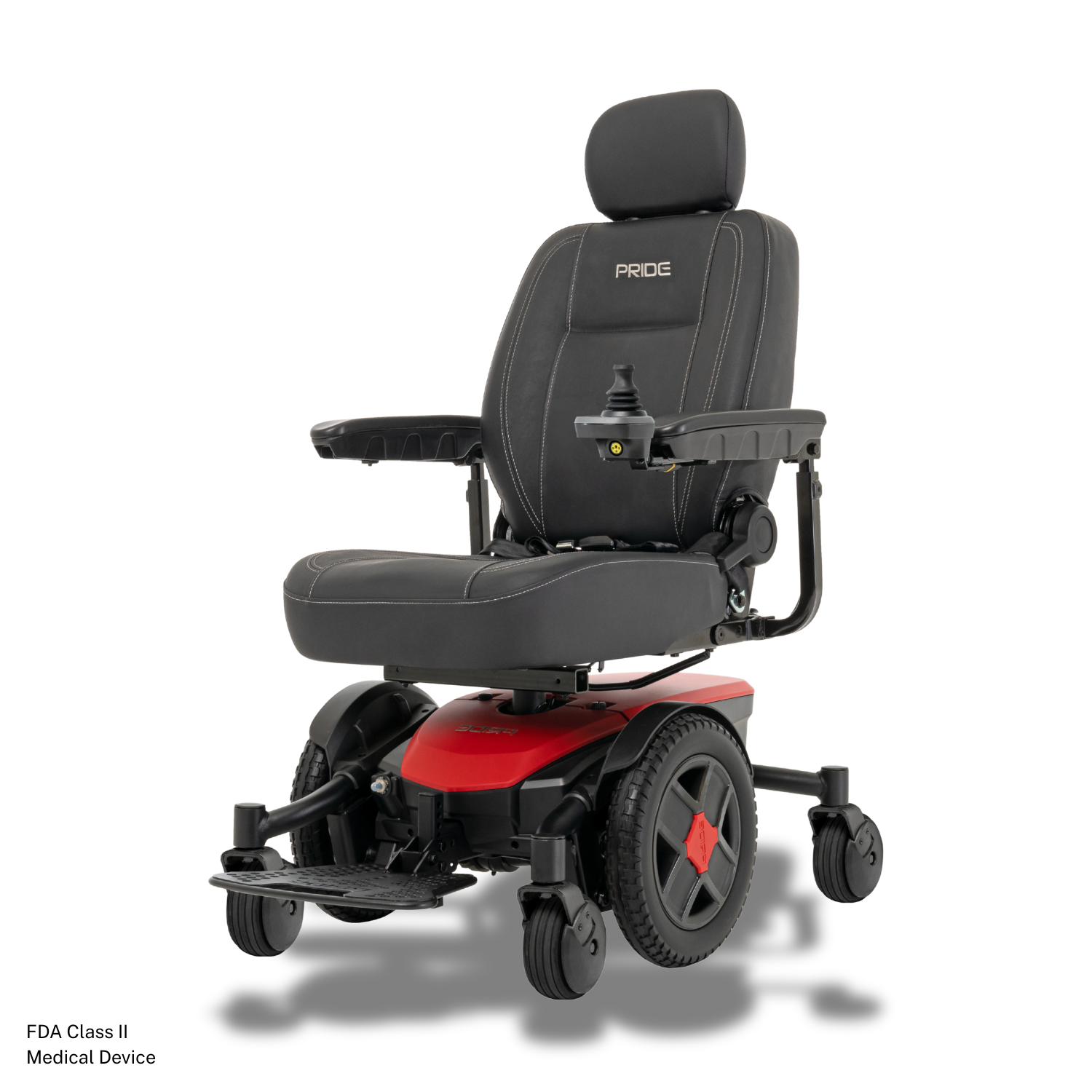

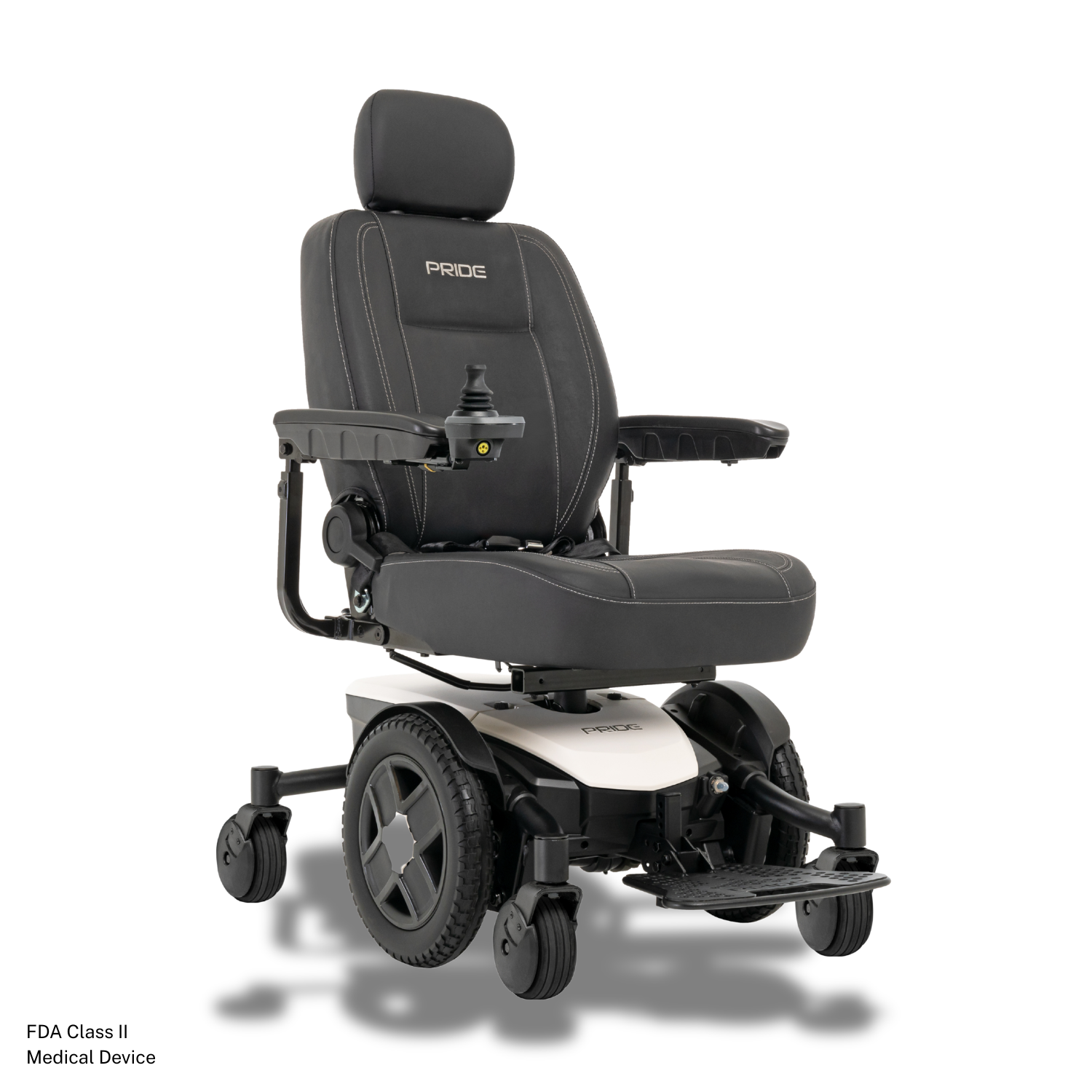

Pride Mobility Jazzy EVO 613 Group 2 Power Chair

Product Ships out in 12 Weeks

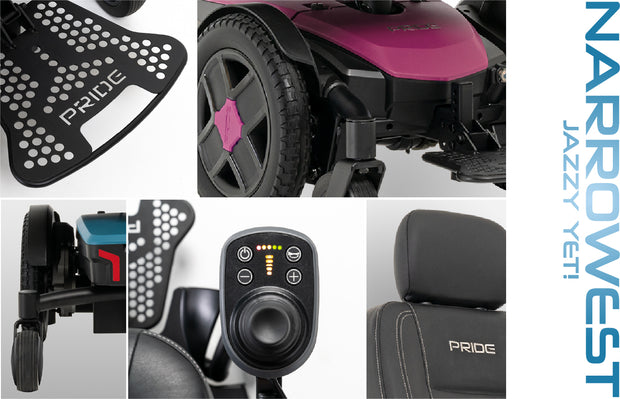

The all new Medicare-reimbursable Jazzy EVO 613 is here! The Jazzy EVO 613 provides the freedom to navigate small spaces and tight corners indoors with a narrow base width of only 22”.

• 300 lb. weight capacity
• Narrow base width of only 22"
• Maximum speed up to 5.1 mph
• 13" solid drive tires
• Mid-wheel 6 Technology offers tight turning radius around doorways and corners
• Pride's patented Active-Trac (ATX) Suspension ensures a smooth ride experience over uneven surfaces

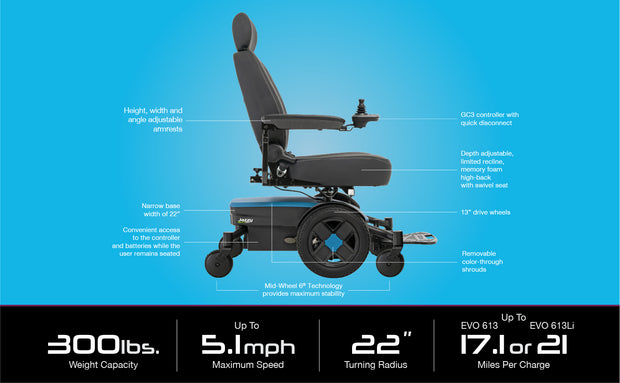

Model: Jazzy EVO 613

Weight Capacity: 300 lbs.

Turning Radius: 22”

Width: 22”

Length: 41” with footrest (35” without)

Maximum Speed: Up to 5.1 mph

Ground Clearance: 3”

Front Wheels: 5” Casters

Drive Wheels: 13” solid

Rear Wheels: 5” Casters

Drivertrain: Two motor, in-line, mid-wheel drive

Braking Sytem: Regenerative and electromechanical

Suspension Type: Active-Trac (ATX)

High-Back Seat (max. size): 16”x16-18”, 18”x18-20”, 20”x18-20”

High-Back Seat-to-Floor Range:

Standard Electronics: 40A, PG GC3

Battery Size (2 required): 12 volt, U-1

Standard Battery Charger: 3.5 amp, off-board

Per-Charge Range: Up to 14 miles at 300 lbs.; Up to 17.1 miles at 200 lbs.

NOTE: FOR RETURN REQUESTS, CUSTOMERS ARE RESPONSIBLE FOR A 25% RE-STOCKING FEE OF THE ORIGINAL ITEM PRICE + $115.00 BACKFREIGHT CHARGE

Return Policy

◦ 5-YEAR WARRANTY ON FRAME

For five (5) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

• Main Frame

◦ 3-YEAR LIMITED WARRANTY

For three (3) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

• Fixed-position Seat Post

◦ 13-MONTH LIMITED WARRANTY

For thirteen (13) months from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

Electronic Assemblies including:

• Charger Assembly
• Controller
• Joystick

Main Frame Assemblies, including:

• Metal Seat Framing

Other components, including:

• Electrical Harnesses
• Accessories
• Anti-tip Forks
• Front Riggings
• Bearings and Bushings
• Motor/Gearbox Assembly
• Brakes (Electronic Function ONLY)
• Caster Forks
• Front Rigging Mounting Brackets

◦ BATTERY 13-MONTH WARRANTY

The batteries are covered by a separate thirteen (13) month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.

◦ WARRANTY EXCLUSIONS

This warranty does not extend to those items which may require replacement due to normal wear and tear.

• ABS Plastic Shrouds
• Brake Pads
• Motor Brushes
• Tires and Tubes
• Upholstery and Seating
• Fuses/Bulbs
• Circumstances beyond the control of Pride
• Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products
• Repairs and/or modifications made to any part without specific consent from Pride

Exclusions also include components with damage or failure caused by:

• Parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider.
• Contamination
• Abuse, misuse, accident, or negligence
• Battery fluid spillage or leakage
• Use other than normal design specifications
• Improper operation, maintenance, or storage

Warranty Insert

**NOTE: After the end of your warranty, please contact WSR Solutions at 1-888-584-3095 for all your repair requests.

Brochures

◦ Jazzy EVO Series Brochure (US)
