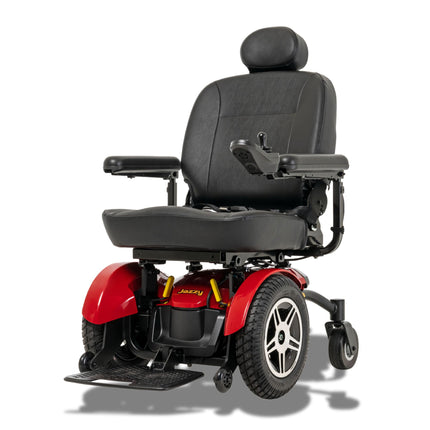

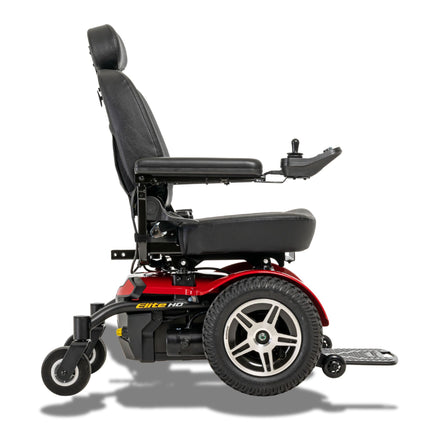

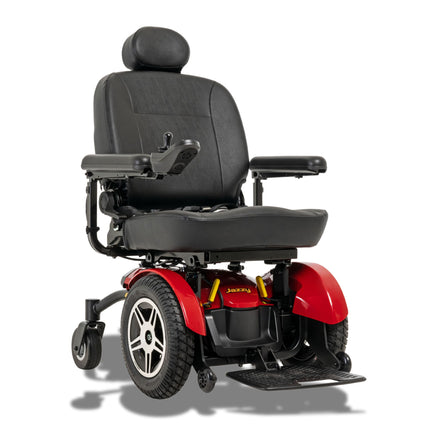

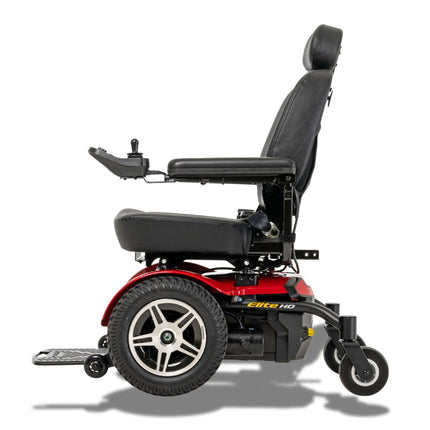

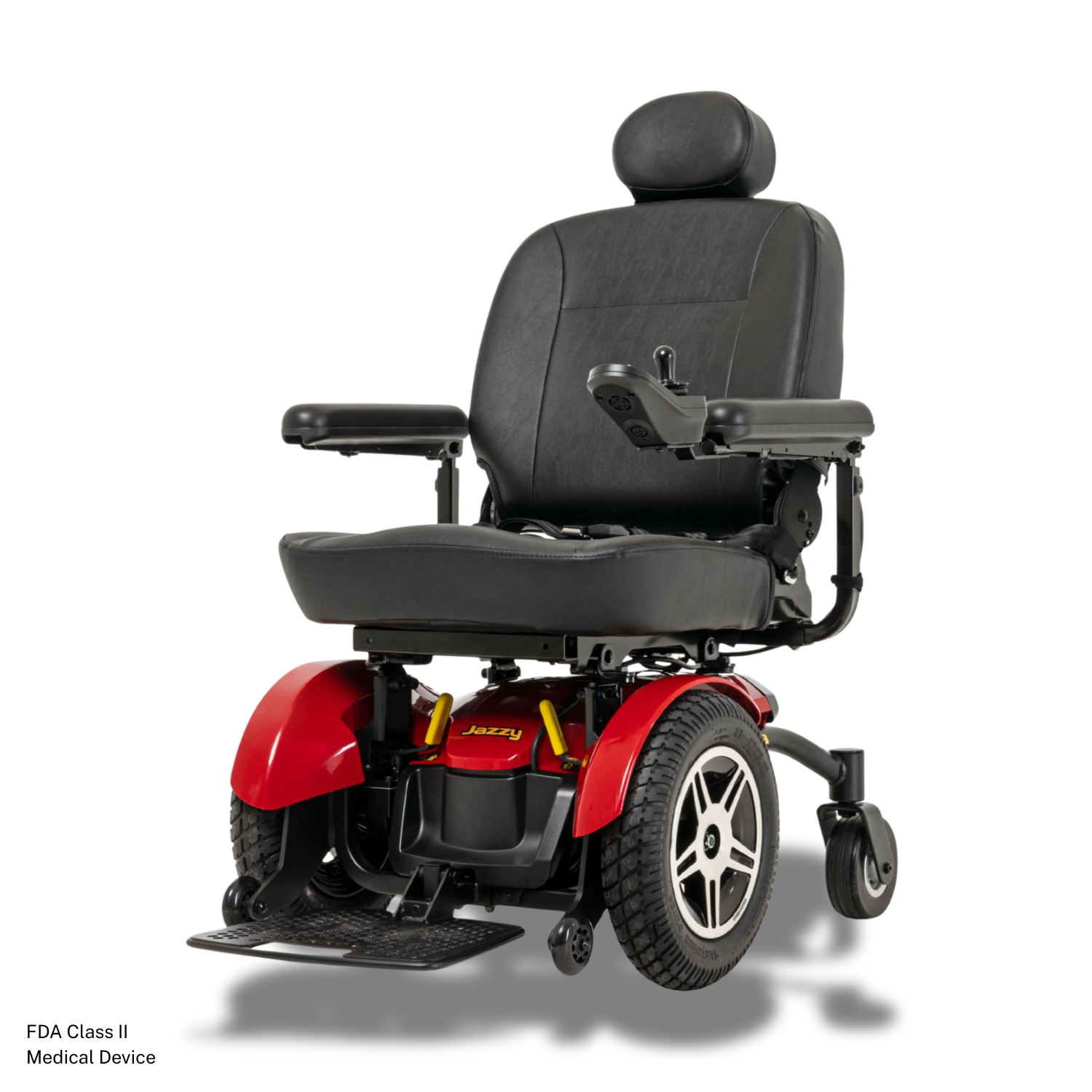

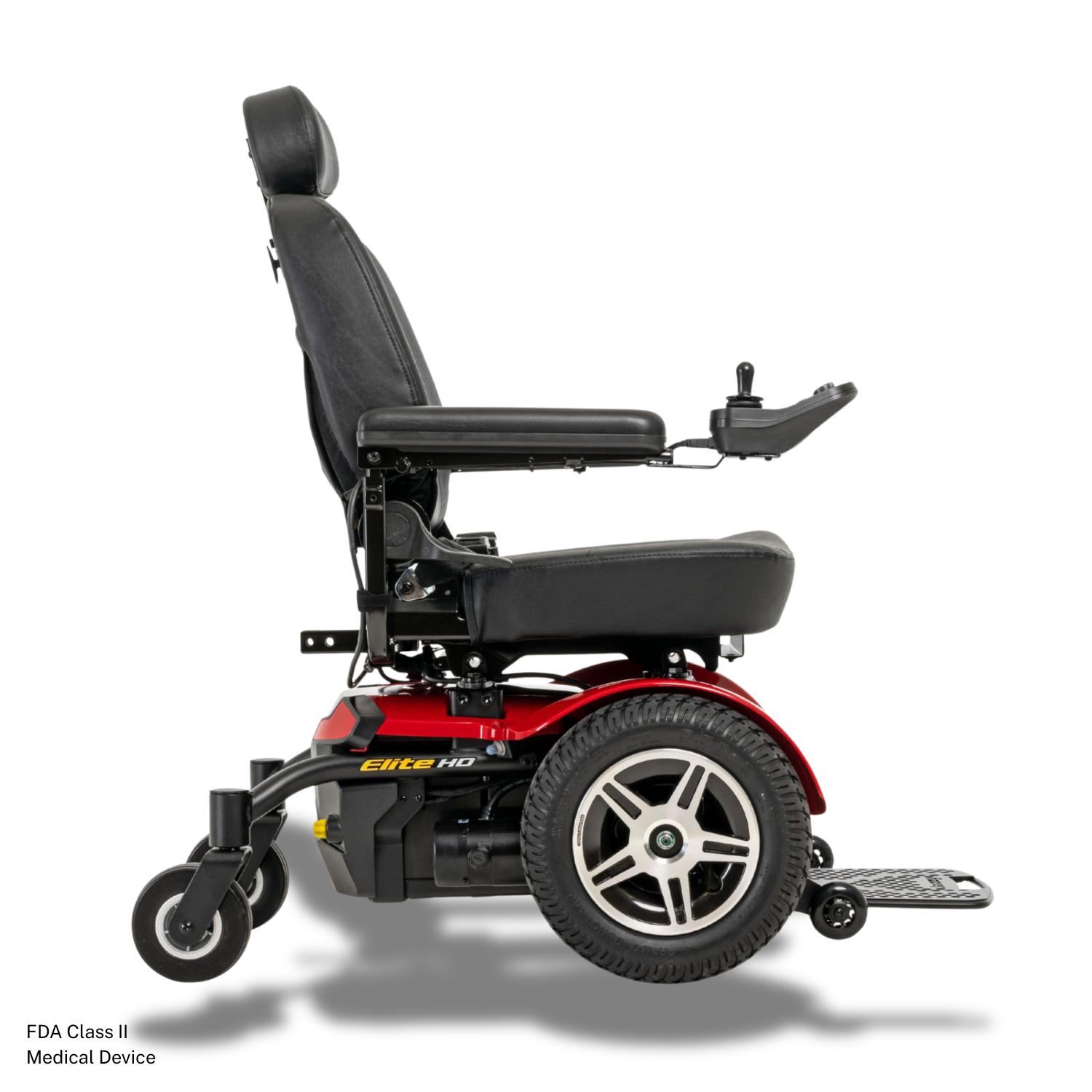

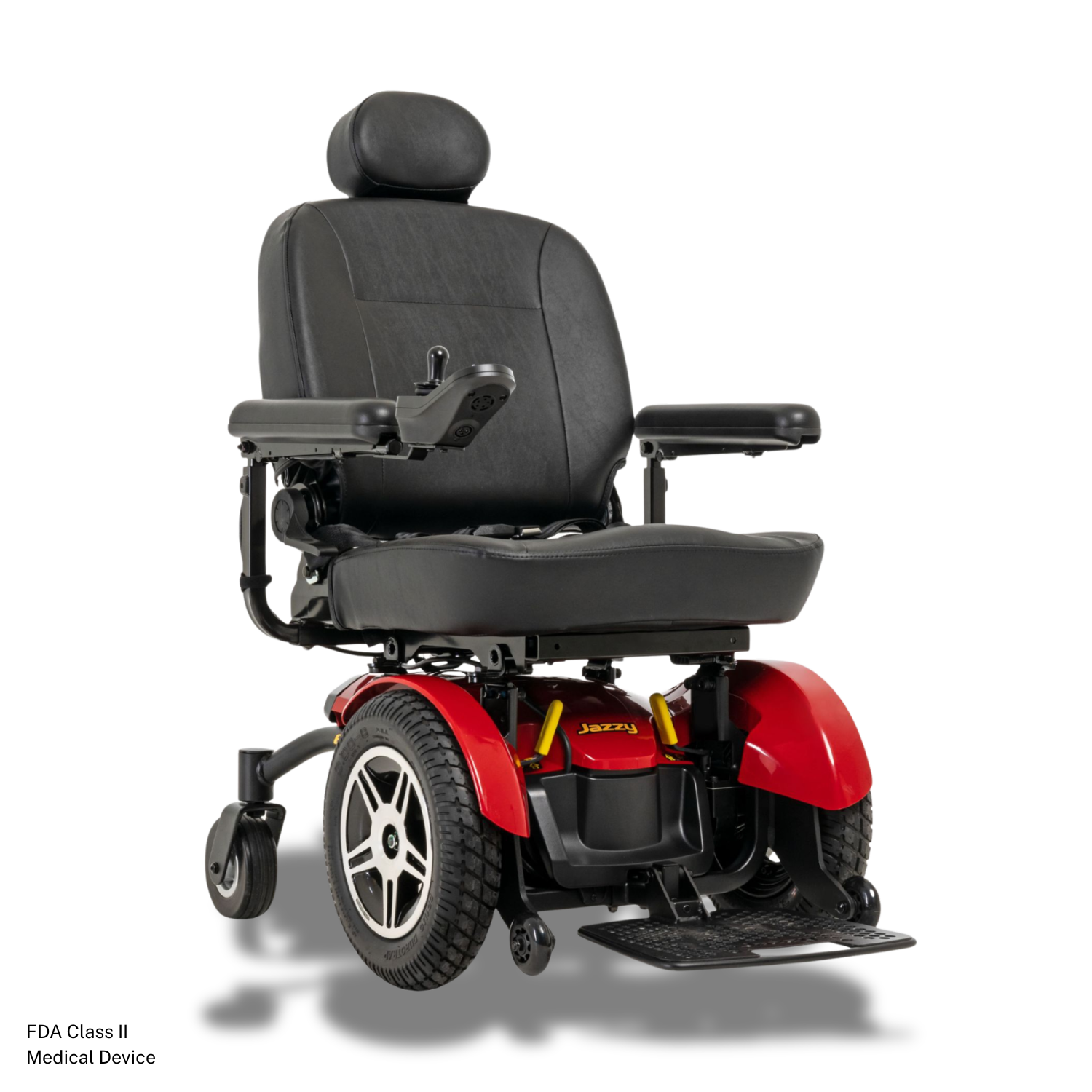

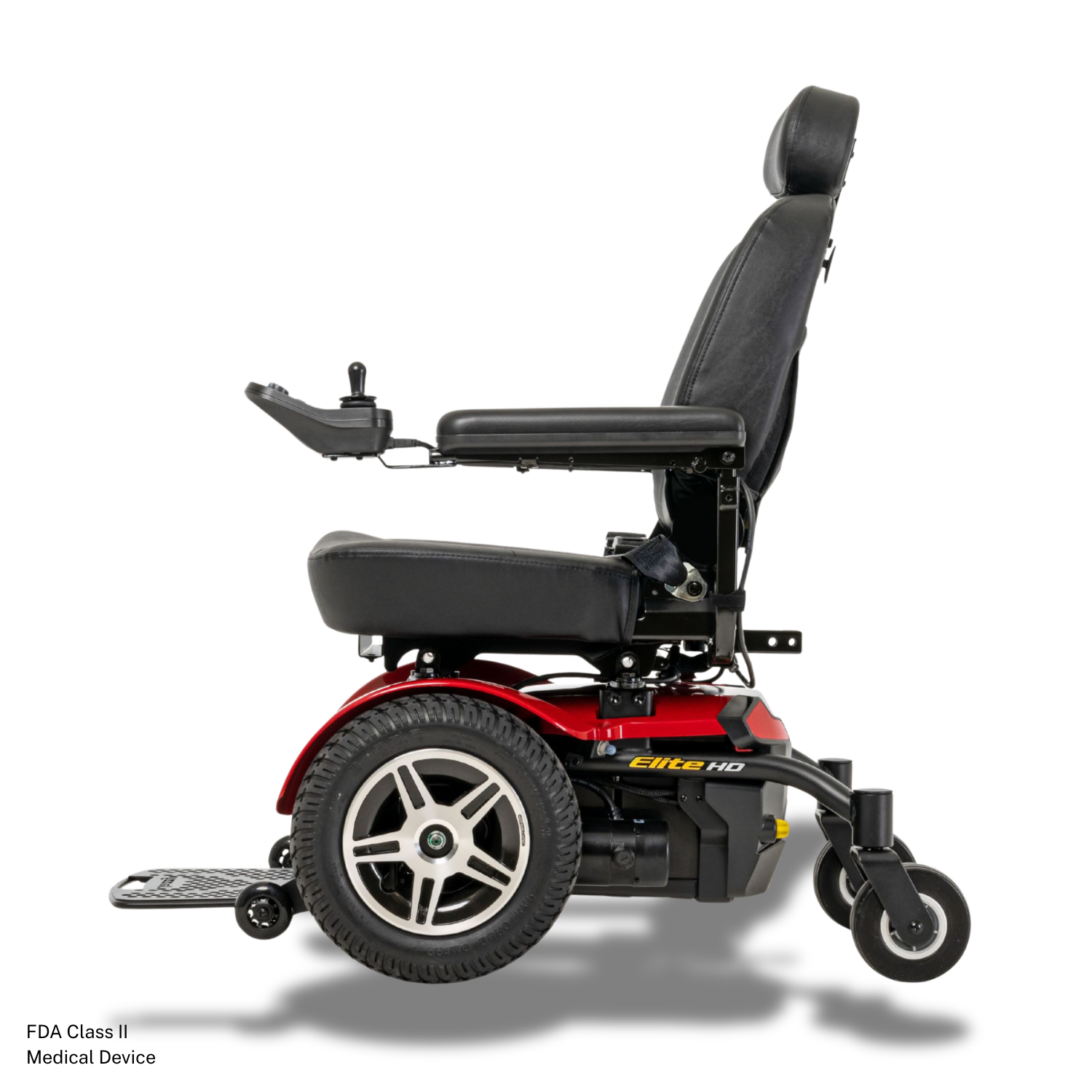

Pride Mobility Jazzy Elite HD Group 2 Heavy Duty Power Chair

The Jazzy Elite HD features two-motor, front-wheel drive technology and heavy-duty construction.

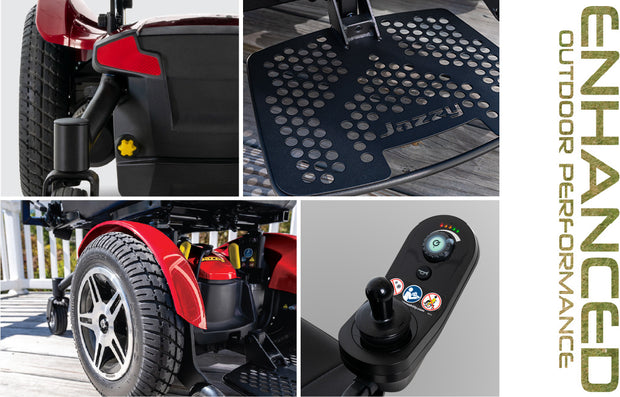

The Jazzy Elite HD features 14” drive wheels for enhanced outdoor performance combined with a front-wheel drive design to provide tight turns for optimal indoor maneuverability in small spaces.

Large front wheels add extra absorption for superb climbing capabilities and combine with front anti-tip wheels for handling various terrains with ease.

• Enhanced 450 lbs. weight capacity
• Front-wheel drive design for excellent maneuverability
• 14" knobby tires and optimum weight distribution provide superior traction
• Larger foot platform
• 60 amp controller
• 5-year limited on frame; 13- month limited on electronics; 13-month limited on drive motors; 13-month limited on batteries

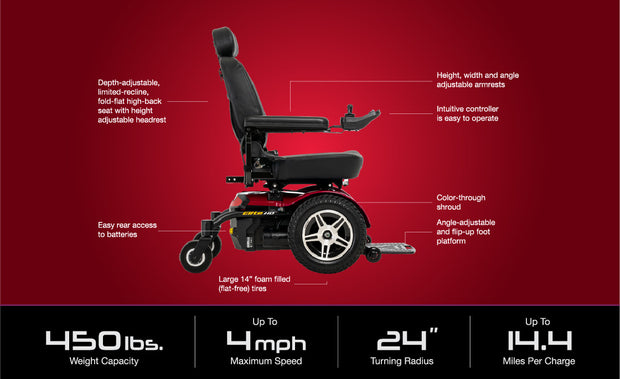

Additional Specifications

• Weight of Heaviest Piece: 99 lbs.
• Standard Seat Weight: 52 lbs. (high-back)
• Standard Seat Size: 18"Wx18"-20", 20"Wx18"-20", 22"Wx20"-22"

Model: Jazzy Elite HD

Weight Capacity: 450 lbs

Turning Radius: 24"

Width: 24.25"

Length: 35.5"

Maximum Speed: Up to 4 mph

Ground Clearance: 3"

Front Wheels: 3" solid anti-tips

Drive Wheels: 14" foam-filled

Rear Wheels: 6" Solid casters

Drivertrain: Two-motor, front-wheel drive

Braking Sytem: Regenerative and electro-mechanical

Suspension Type: Limited

High-Back Seat (max. size): 24"W x 24"D

High-Back Seat-to-Floor Range: 20" - 22"

Standard Electronics: 60A, Dynamic Shark

Battery Size (2 required): 12 volt, NF-22

Standard Battery Charger: 5A, off-board

Per-Charge Range: Up to 12.5 miles

Battery Weight: 37 lbs. each

5-Year limited warranty on frame.

13-month limited warranty on electronics.

13-month limited warranty on drive motors.
