The Jazzy Elite ES delivers a reliable blend of power, performance and style for your active lifestyle.
The in-line, front-wheel drive technology provides tight turns around corners for optimal indoor maneuverability in small spaces and large front wheels for extra absorption over obstacles.
With superb climbing capabilities combined with front anti-tip wheels for transitioning over grade changes easily, the Jazzy Elite ES handles various terrains with ease.
- In-line, front-wheel drive technology
- 40 amp, PG GC 3 controller
- Simple main frame design for easy serviceability
- Comfort high-back seat with headrest
- Jazzy Armor controller guard to protect from daily wear and tear
- Basic Jazzy Armor shroud decals
Additional Specifications
- Weight of Heaviest Piece: 69 lbs.
- Standard Seat Weight: 50.2 lbs. (comfort, high-back)
- Standard Seat Size: 16"x16"-18"; 18"x18"-20"; 20"x18"-20"

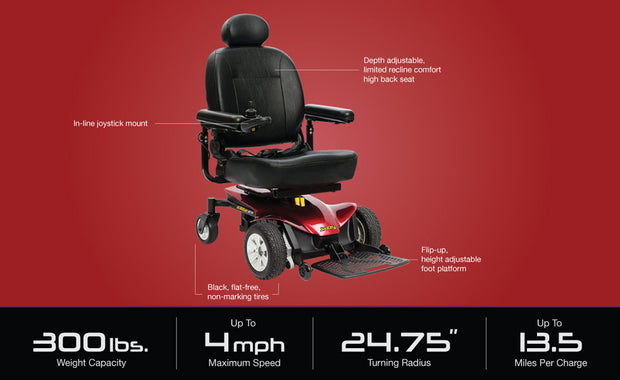

Model: Jazzy Elite ES
Weight Capacity: 300 lbs
Turning Radius: 24.75"
Width: 22.75"
Length: 34.75"/41" (with footplate)
Maximum Speed: Up to 4 mph
Ground Clearance: 1.85" at motors
Front Wheels: 3" solid anti-tips
Drive Wheels: 9" solid
Rear Wheels: 6" solid casters
Drivertrain: Two-motor, in-line, front-wheel drive
Braking Sytem: Regenerative and electro-mechanical
Suspension Type: Limited
High-Back Seat (max. size): 20"W x 20"D
High-Back Seat-to-Floor Range: 21.5" - 23.5"
Standard Electronics: 40A, PG GC3
Battery Size (2 required): 12 volt, U-1
Standard Battery Charger: 3.5A, off-board
Per-Charge Range: Up to 15 miles
Battery Weight: 25 lbs. each
NOTE: FOR RETURN REQUESTS, CUSTOMERS ARE RESPONSIBLE FOR A 25% RE-STOCKING FEE OF THE ORIGINAL ITEM PRICE + $115.00 BACKFREIGHT CHARGE
◦ 5-YEAR WARRANTY ON FRAME
For five (5) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
- Main Frame
◦ 3-YEAR LIMITED WARRANTY
For three (3) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
- Fixed-position Seat Post
◦ 13-MONTH LIMITED WARRANTY
For thirteen (13) months from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Electronic Assemblies including:
- Charger Assembly
- Controller
- Joystick
Main Frame Assemblies, including:
- Metal Seat Framing
Other components, including:
- Electrical Harnesses
- Accessories
- Anti-tip Forks
- Front Riggings
- Bearings and Bushings
- Motor/Gearbox Assembly
- Brakes (Electronic Function ONLY)
- Caster Forks
- Front Rigging Mounting Brackets
◦ BATTERY 13-MONTH WARRANTY
The batteries are covered by a separate thirteen (13) month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.
◦ WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
- ABS Plastic Shrouds
- Brake Pads
- Motor Brushes
- Tires and Tubes
- Upholstery and Seating
- Fuses/Bulbs
- Circumstances beyond the control of Pride
- Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products
- Repairs and/or modifications made to any part without specific consent from Pride
Exclusions also include components with damage or failure caused by:
- Parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider.
- Contamination
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Use other than normal design specifications
- Improper operation, maintenance, or storage
**NOTE: After the end of your warranty, please contact WSR Solutions at 1-888-584-3095 for all your repair requests.
