SKU: 3125569
Barcode: 606509600798
$2,539.00
Owner's Guides
Jazzy Carbon Owner's Manual
Power Chair Consumer Safety Guide
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
**Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Carbon and its lithium ion battery are permitted.
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Jazzy® Carbon
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24" |
| Maximum Speed1 | Up to 3.7 mph |
| Ground Clearance3 | 2" |
| Overall Length3 | 37" |
| Overall Width3 | 24" |
| Seat-to-Ground Height | 19" |
| Seat-to-Foot Platform Height | 14.5" (no adjustment) |
| Front Wheels | 7" |
| Rear Wheels | 8.5" |
| Seat-to-Floor Range with Standard Cushion | 20.75" |
| Seat-to-Floor Range without Cushion | 18.75" |
| Power Elevating Seat | NA |
| Seat Weight(s) | NA |
| Battery Sizes | 24V 12AH (288WH) |
| Suspension | Front |
| Total Weight Without Batteries3,5 | 39 lbs. |
| Total Weight With Batteries3,5 | 43.6 lbs. |
| Heaviest Piece When Disassembled3 | N/A |
| Standard Seating | Material: Black, Foam Dimensions: 17" x 17" |
| Maximum Seat Size | 17" x 17" |
| Per Charge Range | Up to 9.3 miles |
| Drivetrain | 24v/250W Brushless motors |
| Standard Electronics | 35A Brushless Micon |
| HCPCS Codes | Non-coded: K0899 |
| Braking System | Regenerative and electromechanical |
| Battery Weight4 | 4 lbs. |
| Battery Charger | Off-board, 2-amp lithium-ion |
| Weight of Heaviest Piece | NA unit folds and doesn't disassemble |
| Warranty | Frame: Lifetime limited; Drivetrain: 1-year limited; Electronics: 1year limited; Batteries: 1-year limited |
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.
All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.
Some of the items our testing criteria include are:

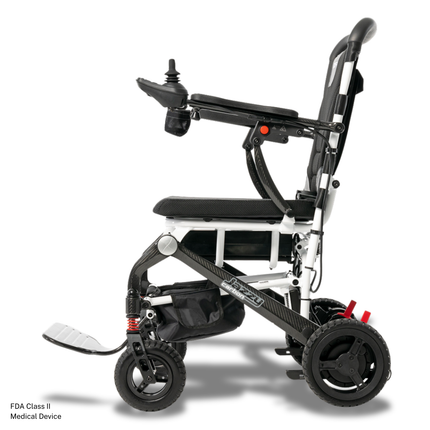

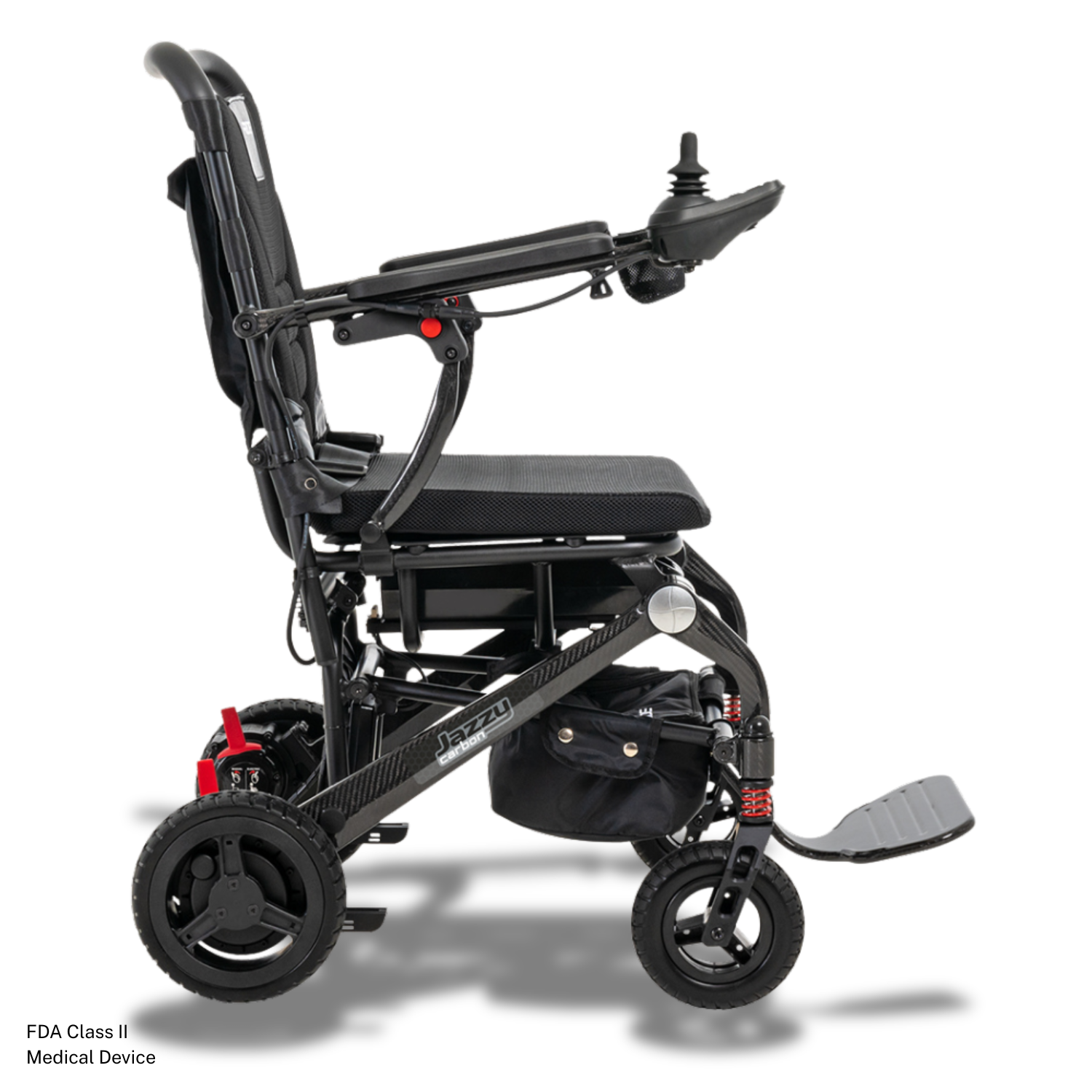

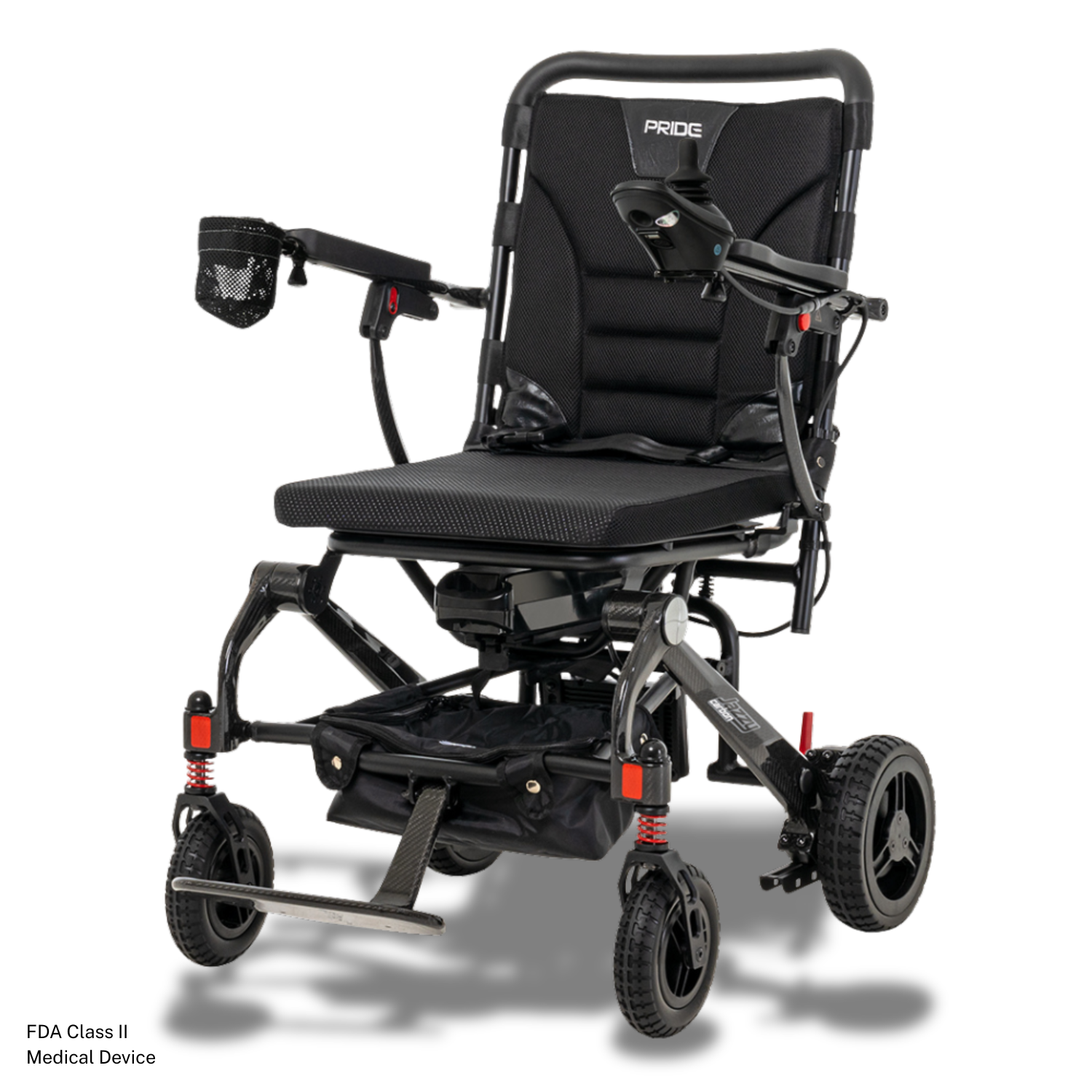

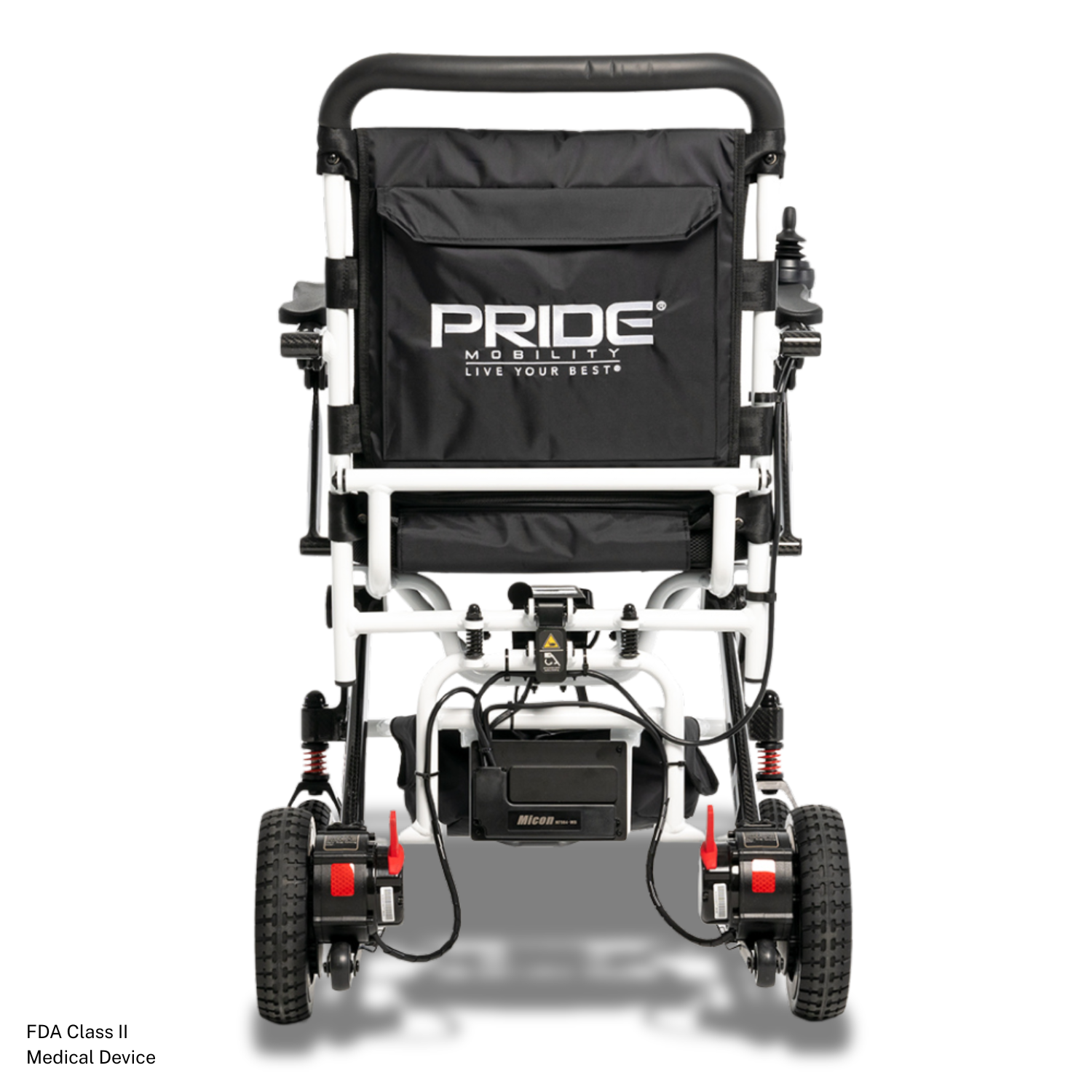

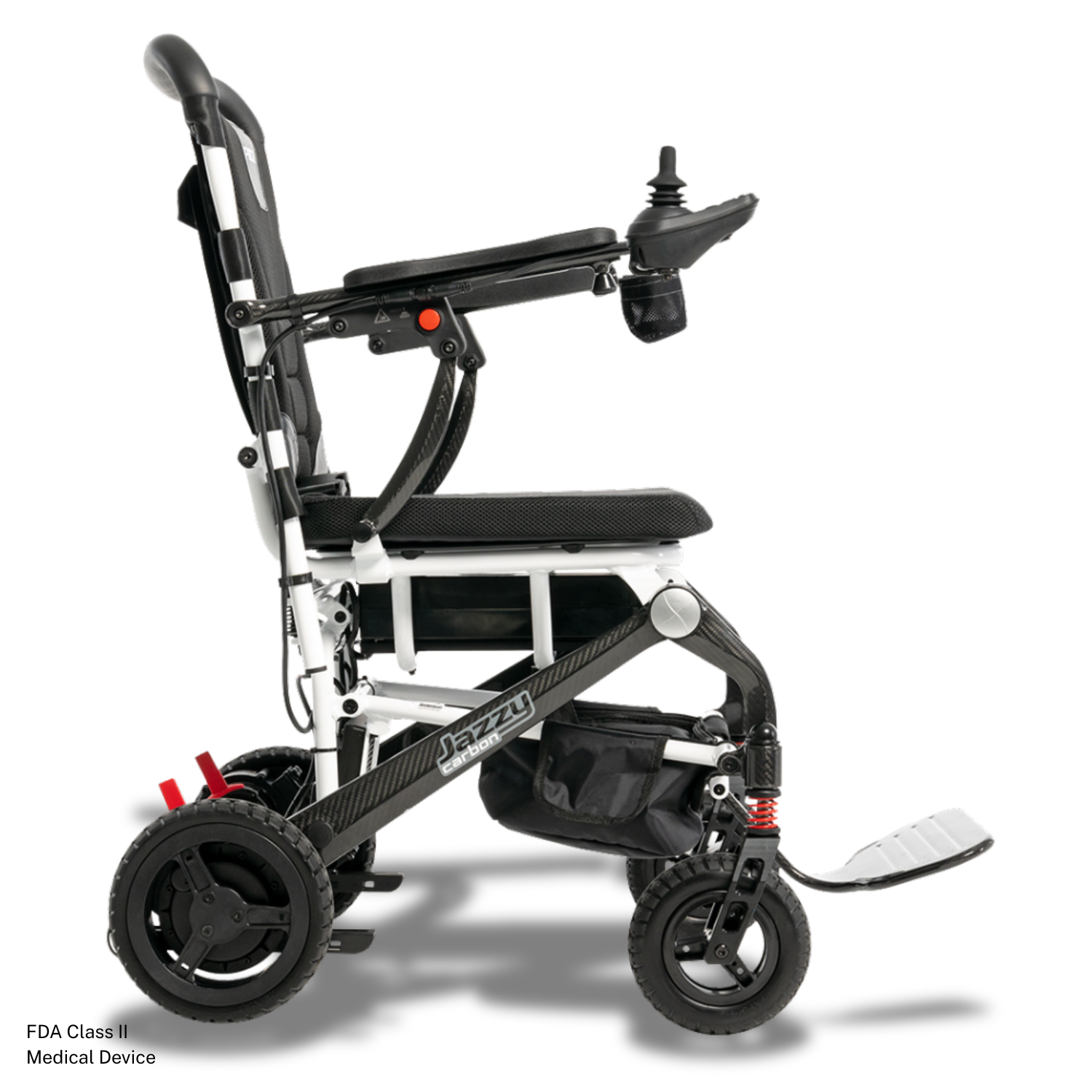

You know Jazzy® for its industry-leading performance and quality. Now let’s talk about portability.

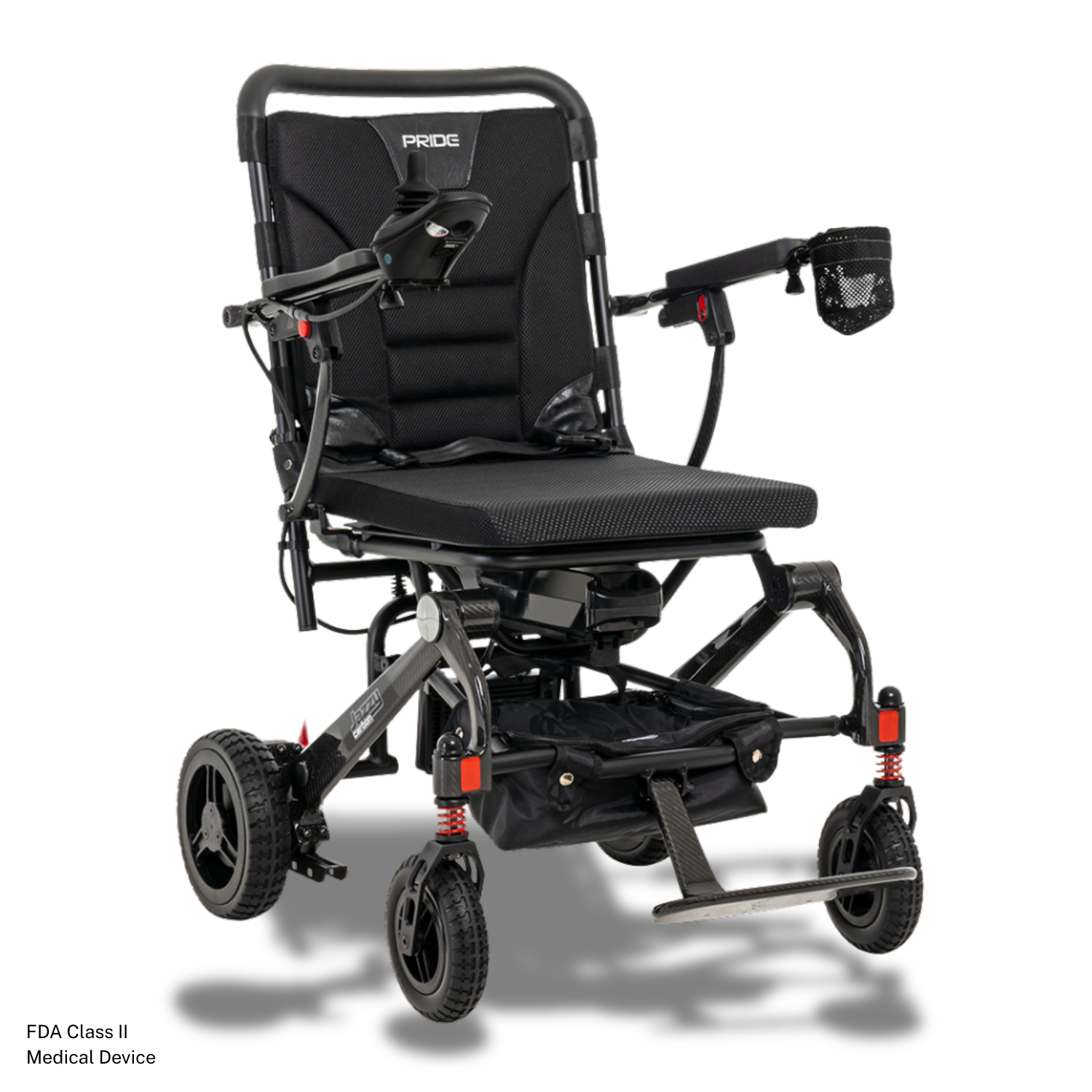

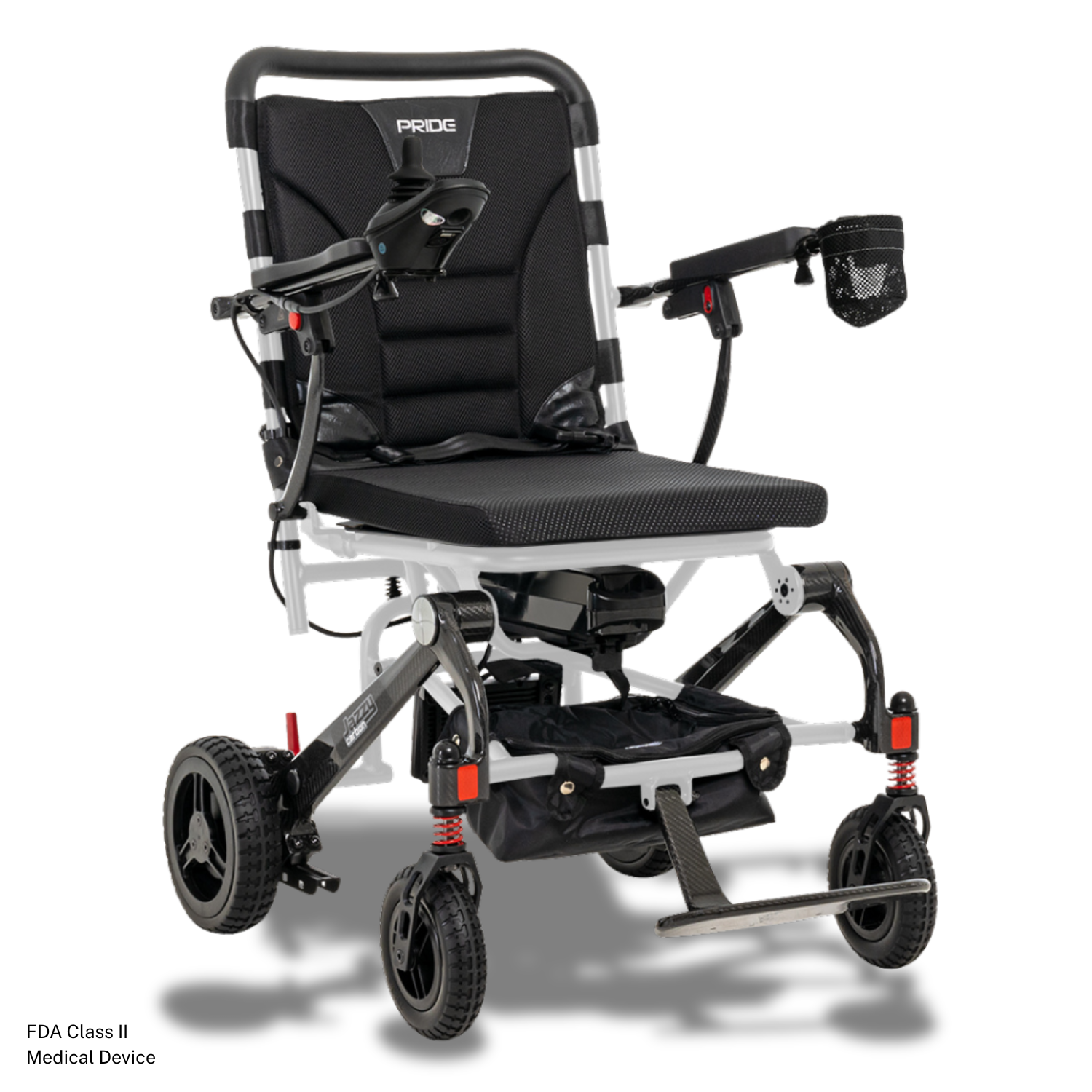

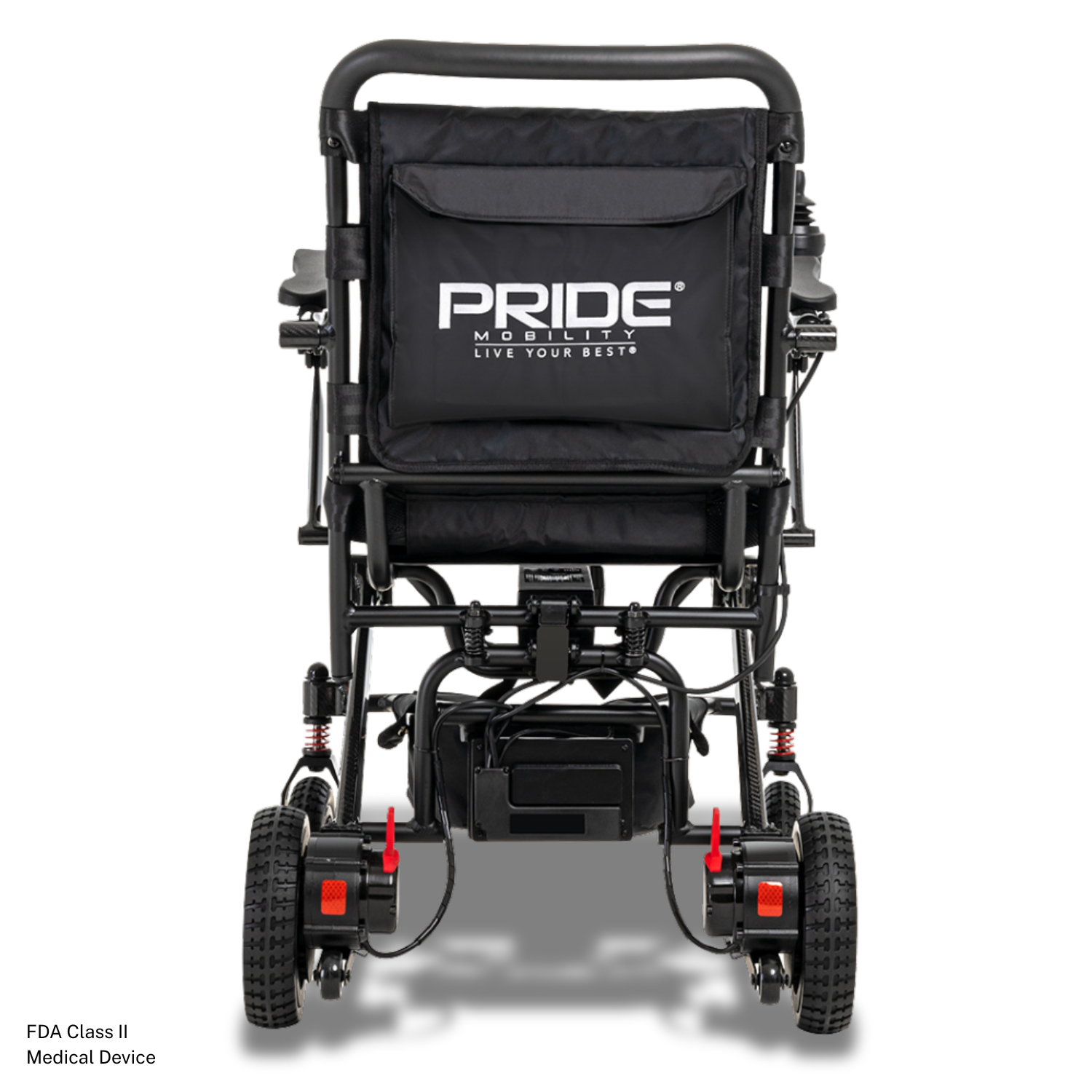

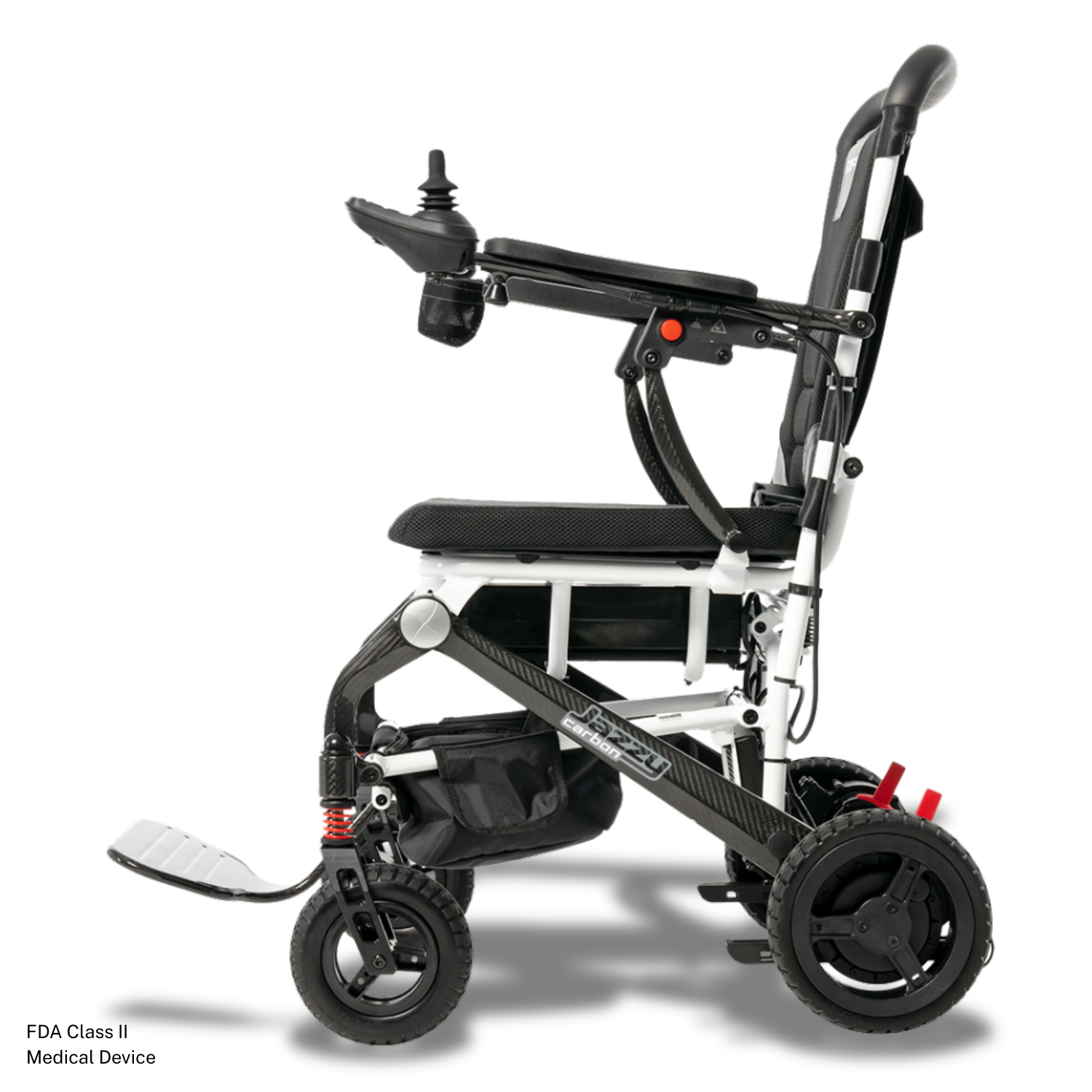

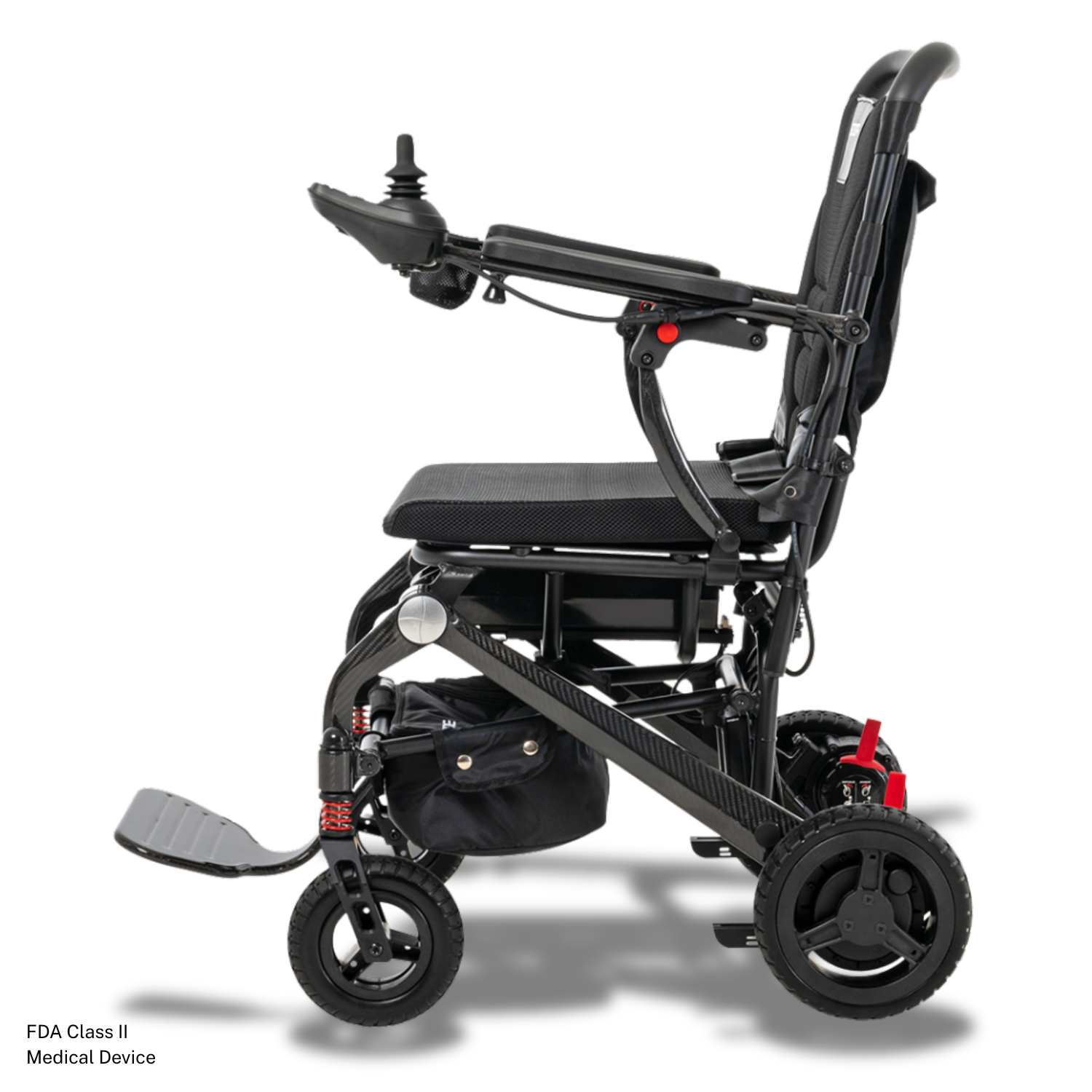

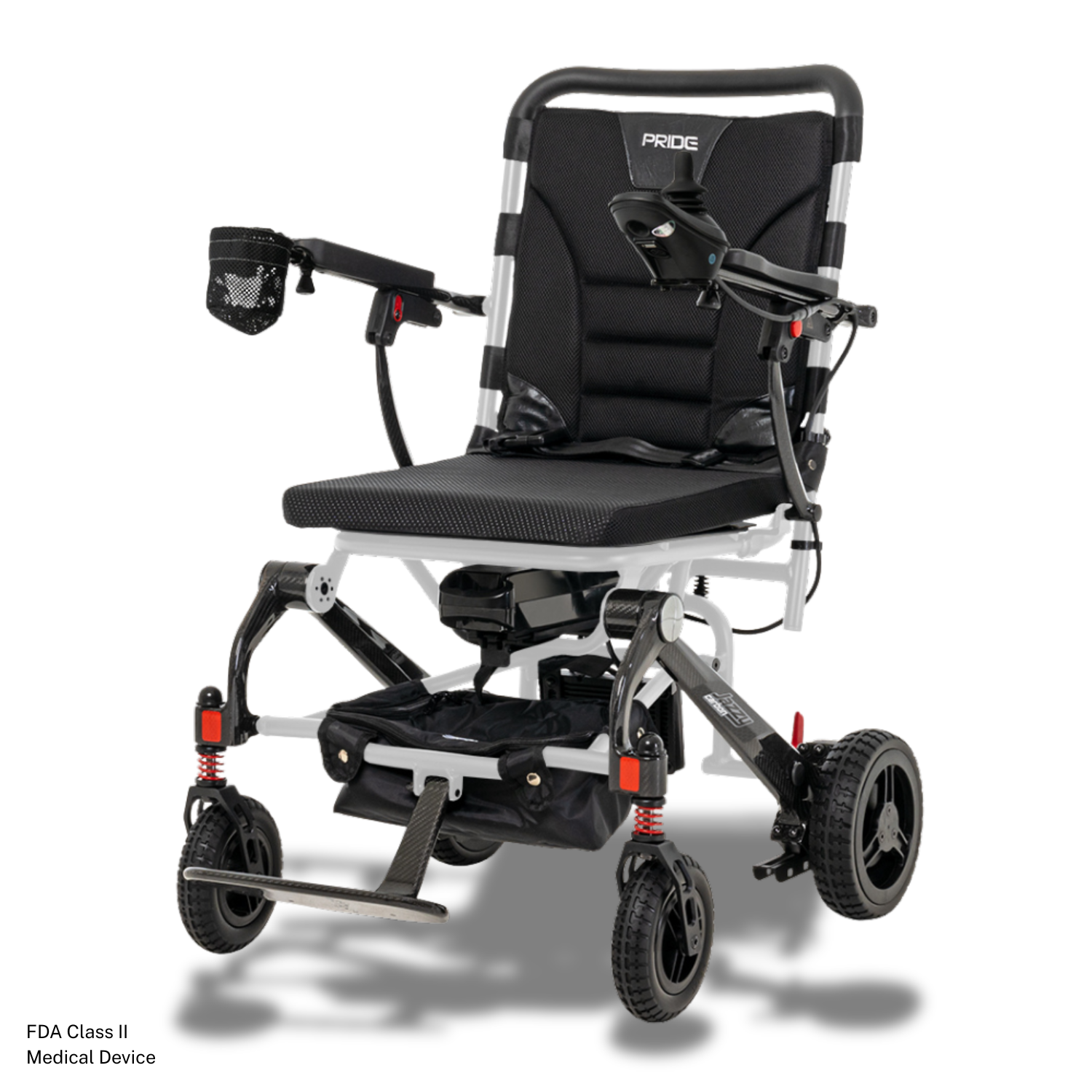

Jazzy Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.
Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels.
Weighing in at a stunning 39 pounds without the battery, Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.

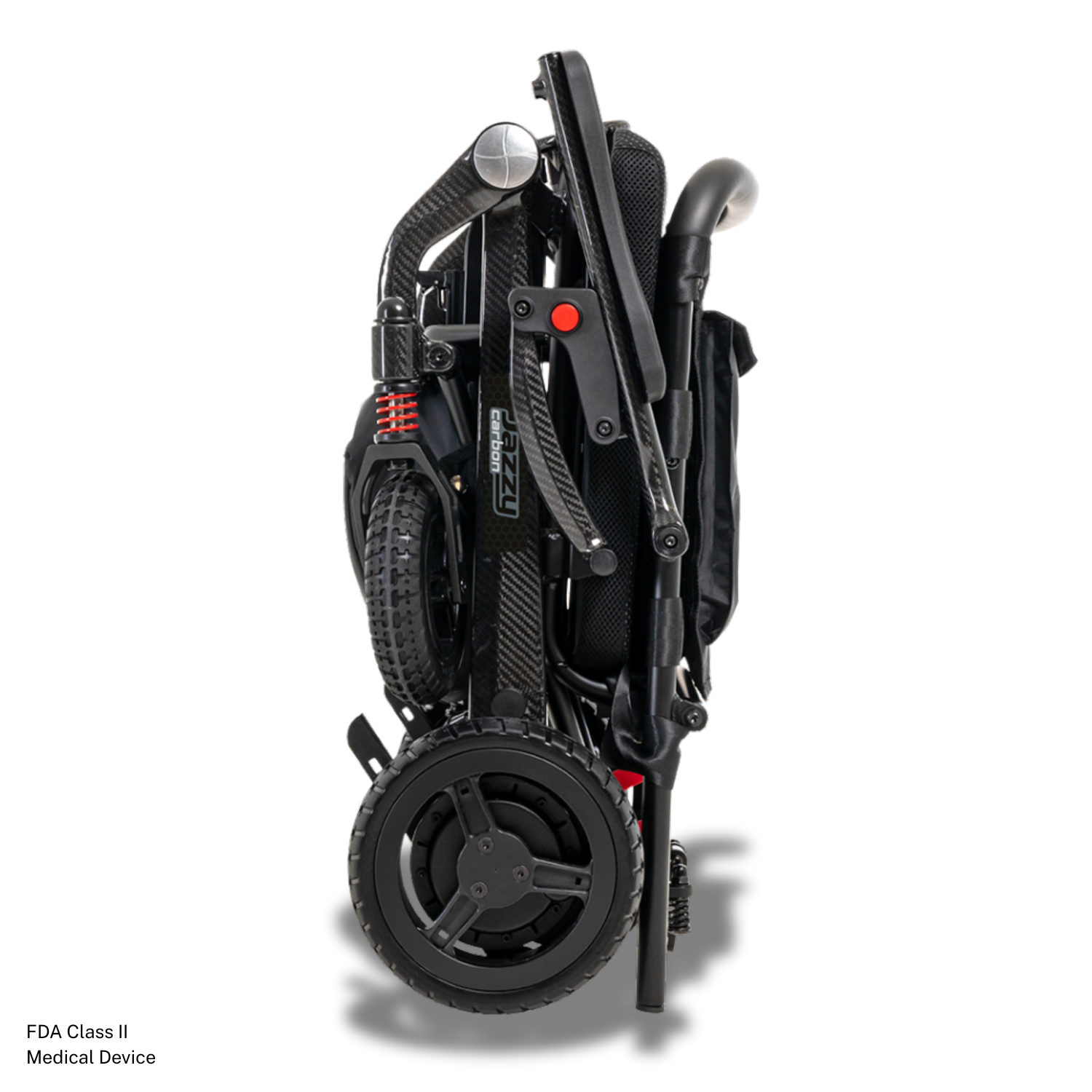

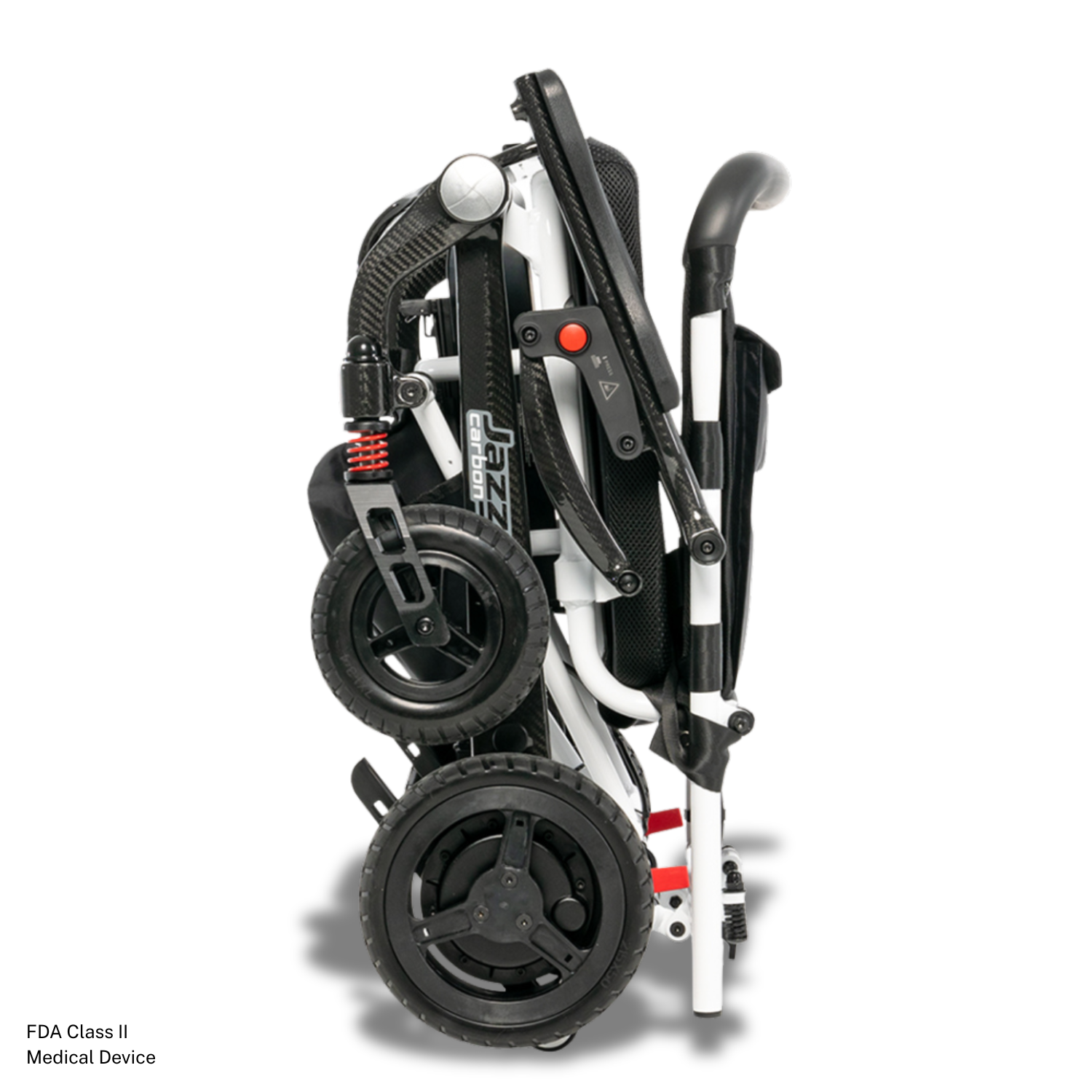

Jazzy Carbon folds down in just a few quick motions, which makes it easier to transport in cars, planes and trains. But don’t let portability fool you. Jazzy Carbon has tall, terrain-dominating wheels and a front-end suspension system, plus a comfy seat cushion to sustain you through everything your busy day throws at you.
Maybe you’re taking a weekend trip to visit the grandkids, and they’ve got your Saturday booked with stops at all their favorite places.
Or maybe you and your pals are taking a once-in-a-lifetime trip to an all-inclusive resort, and you don’t want to miss a single moment of it.
Jazzy Carbon gives you mobility and control to do it all.
