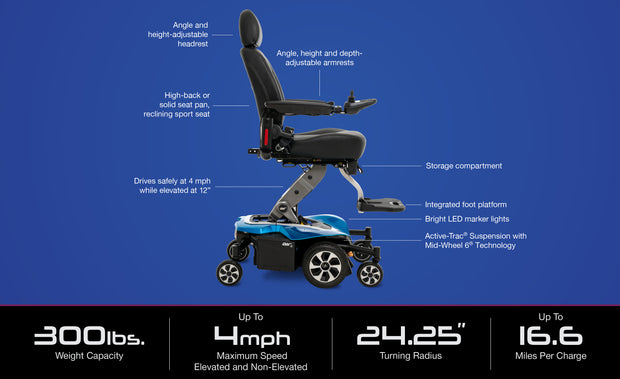

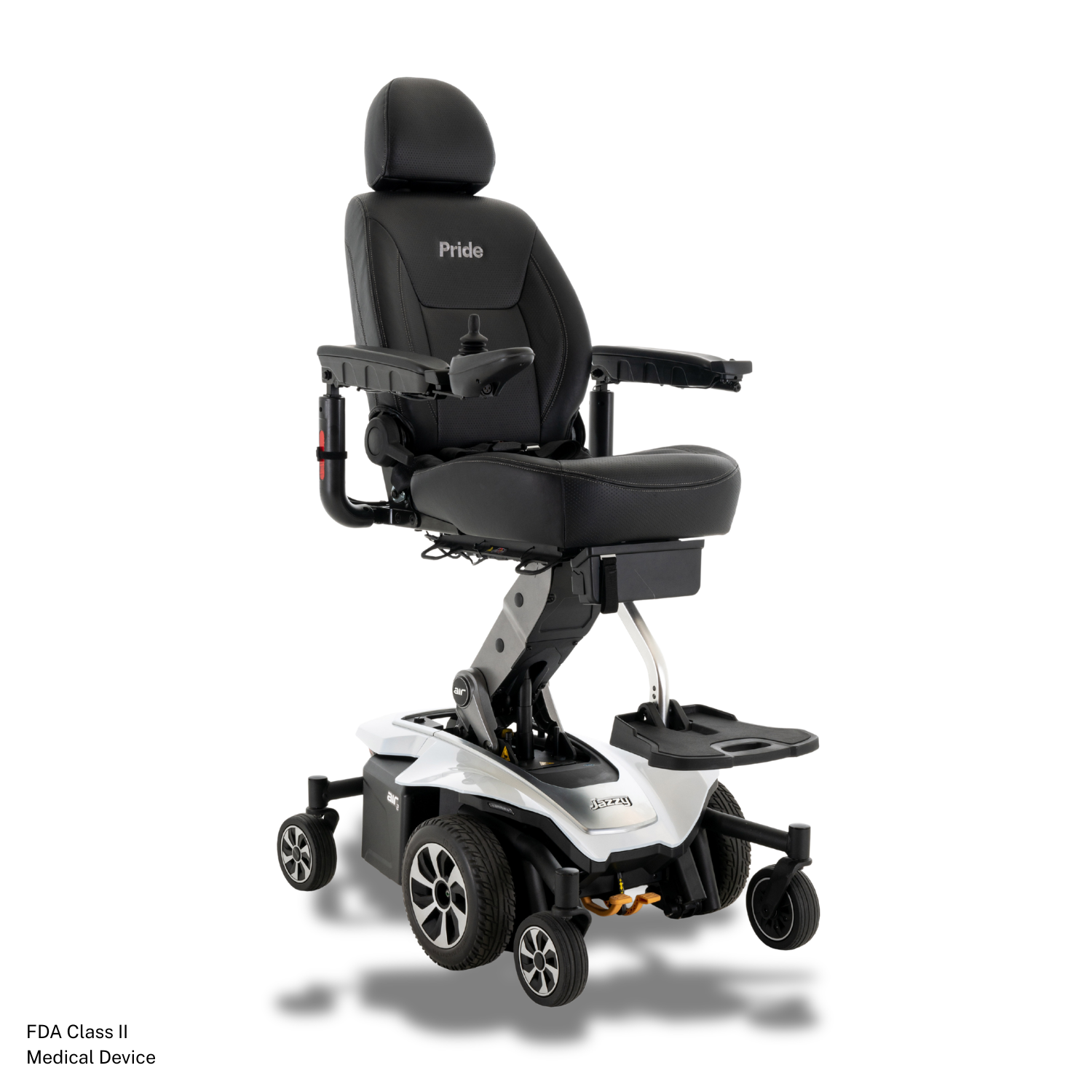

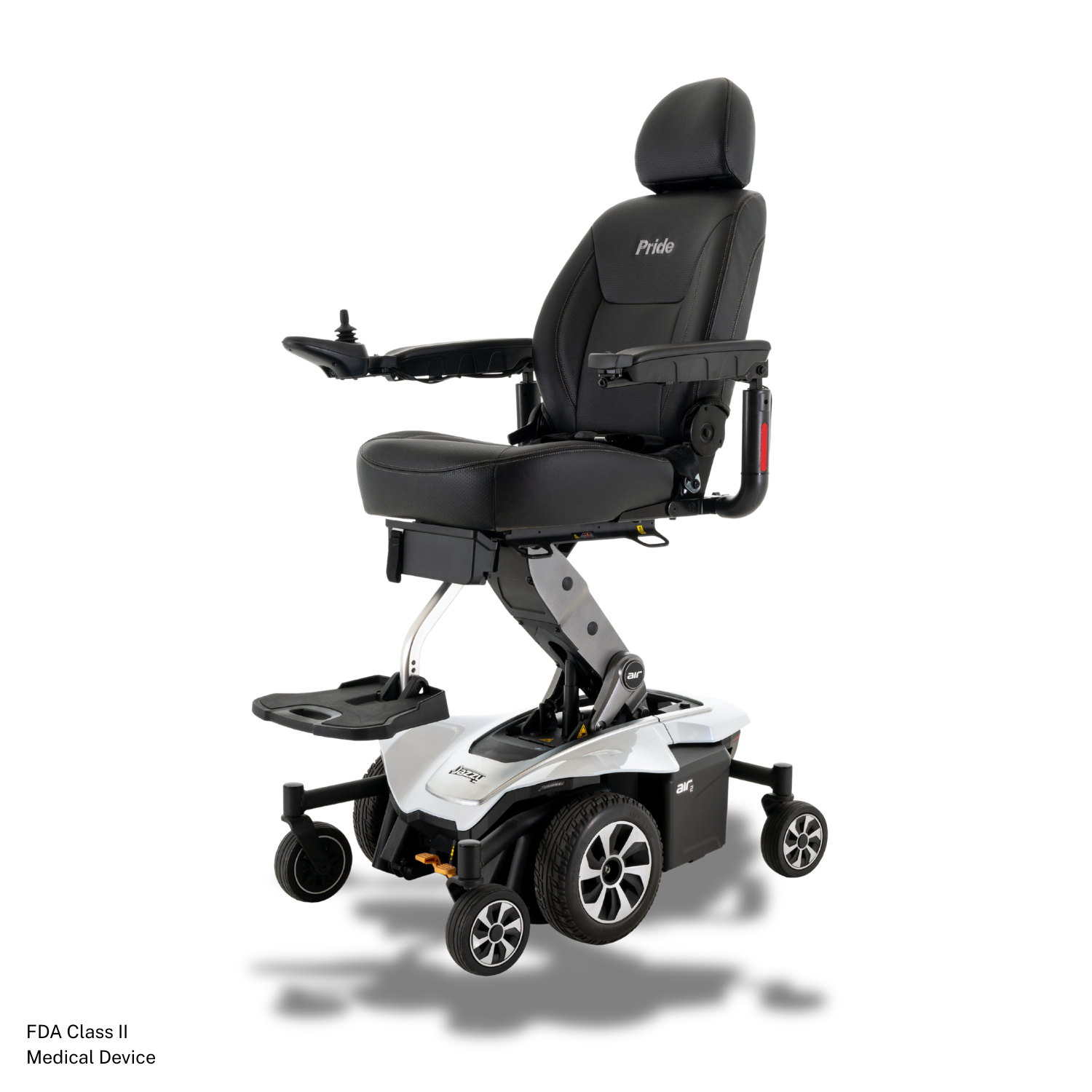

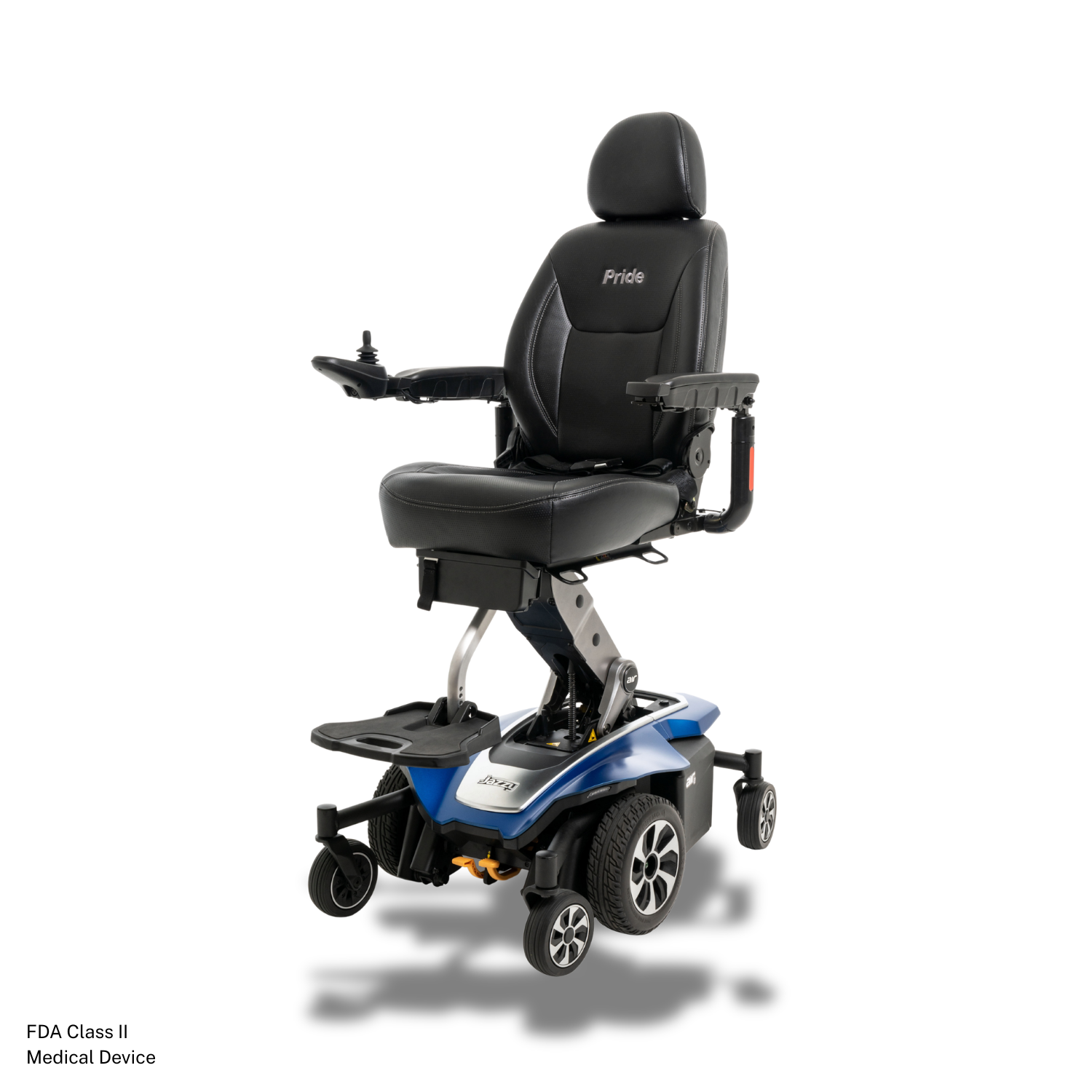

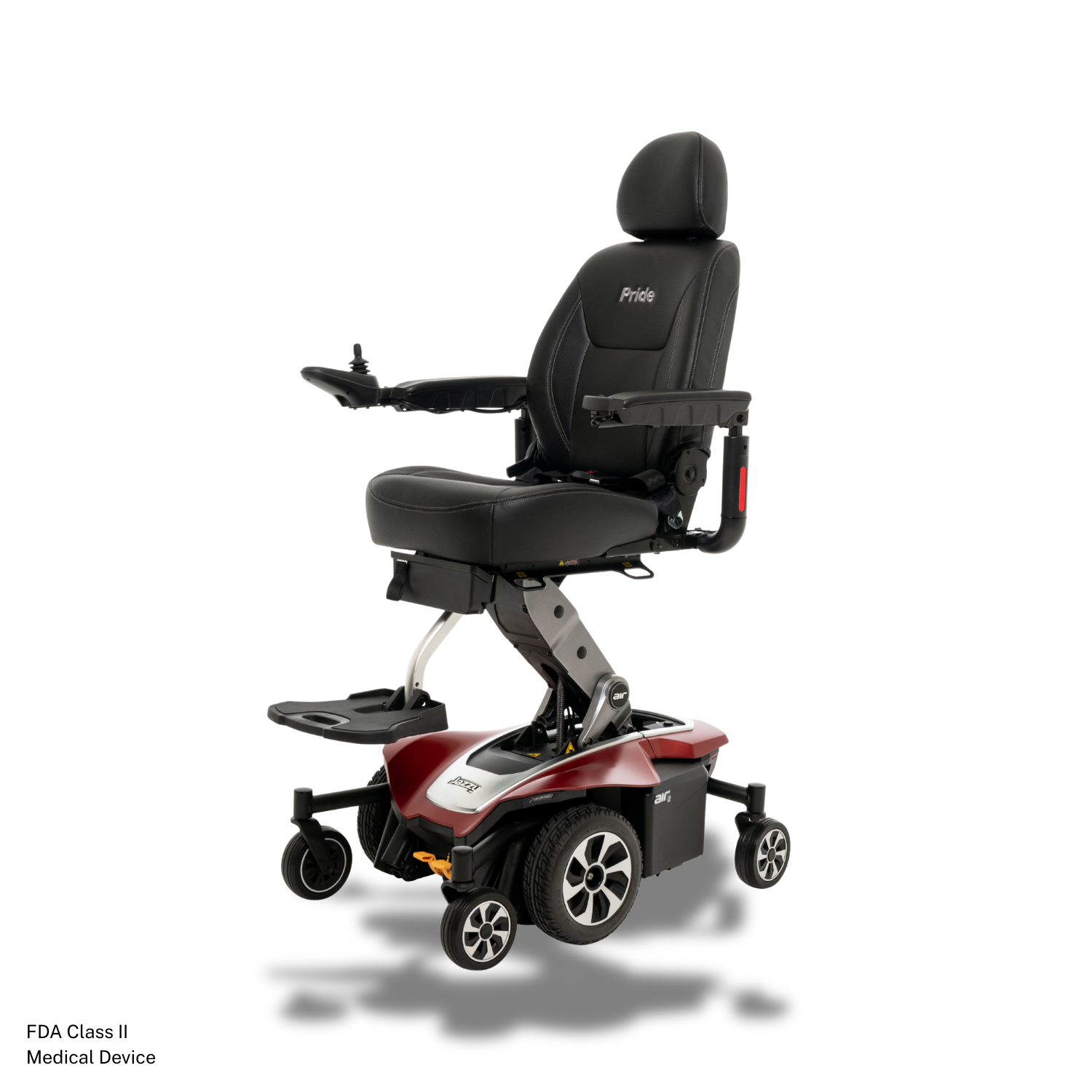

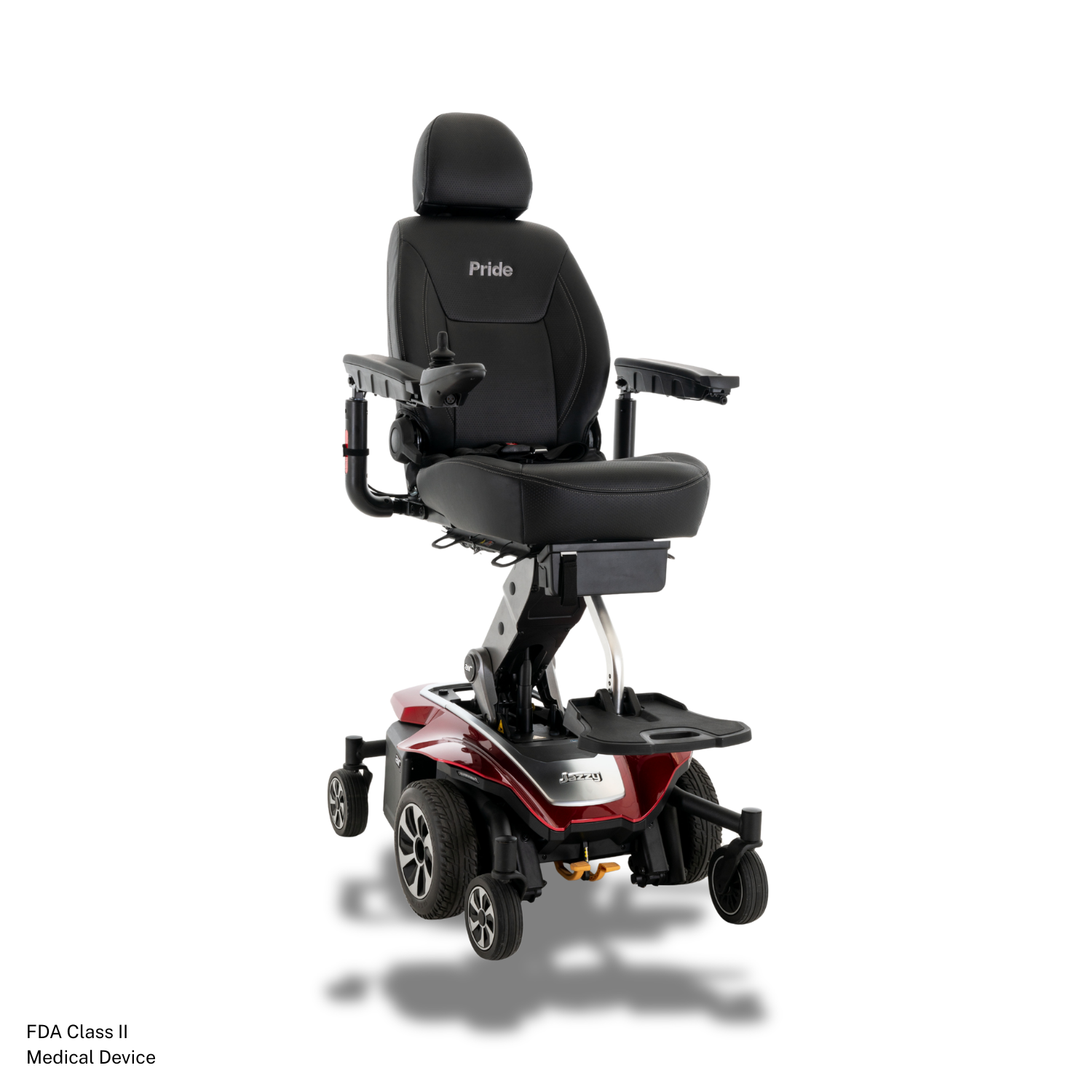

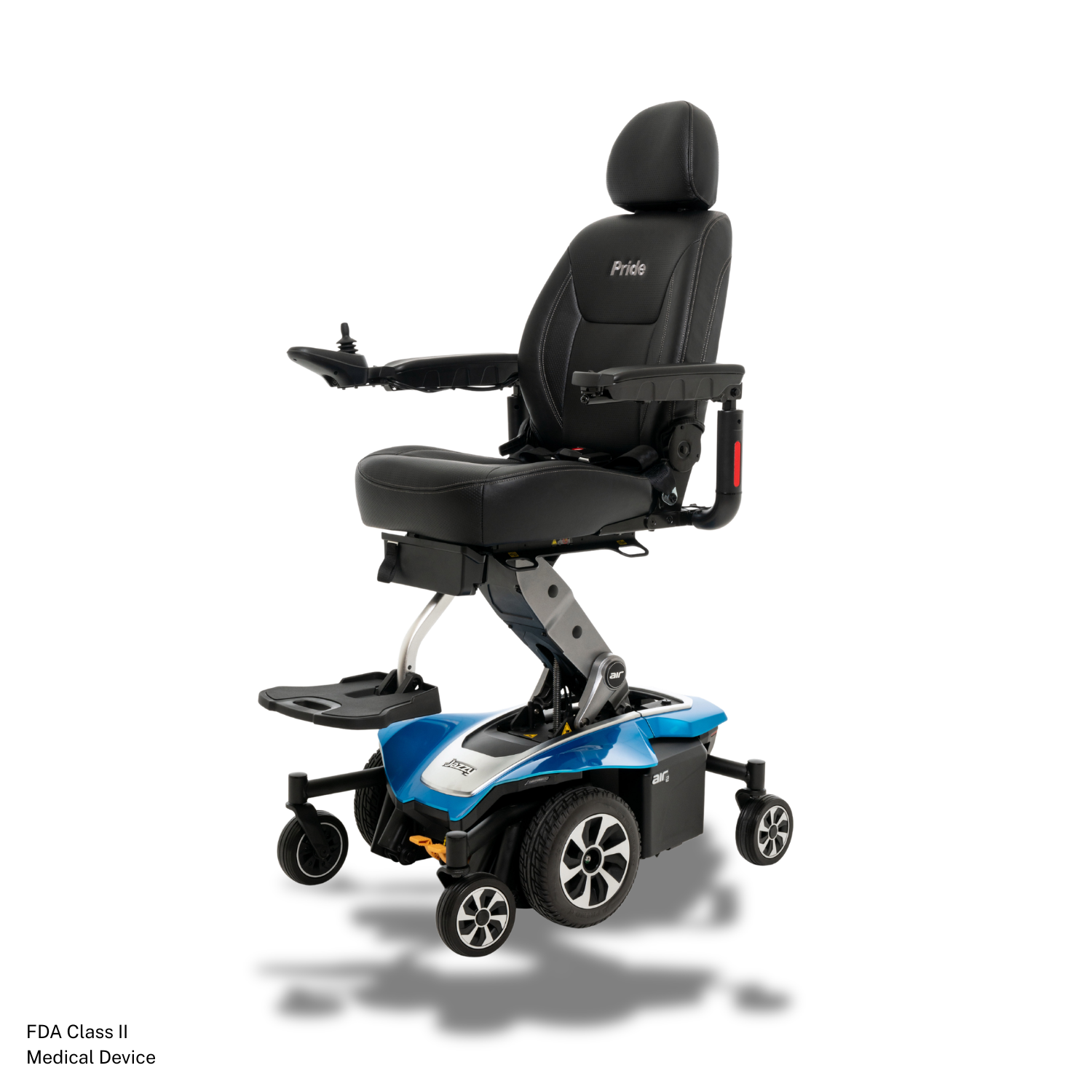

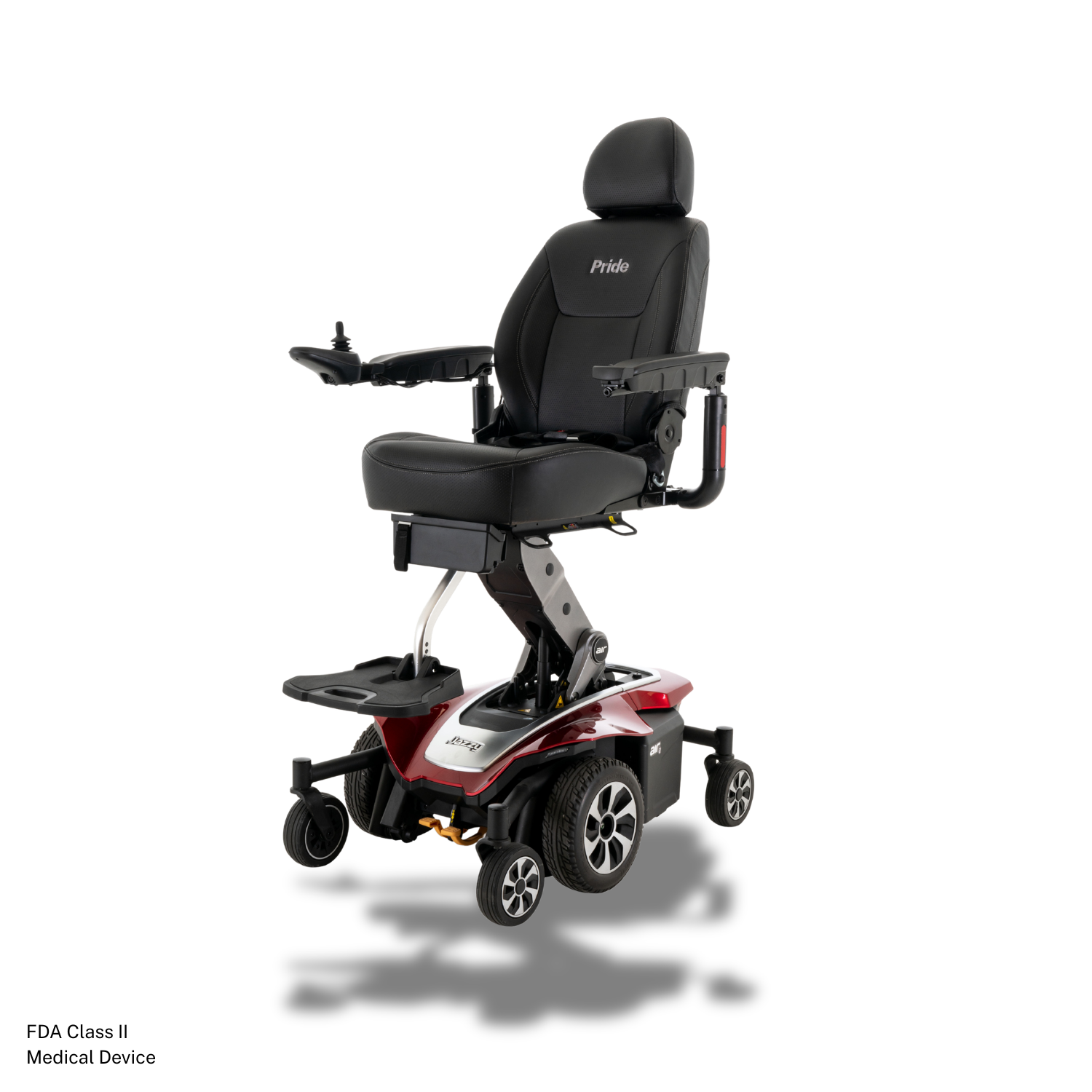

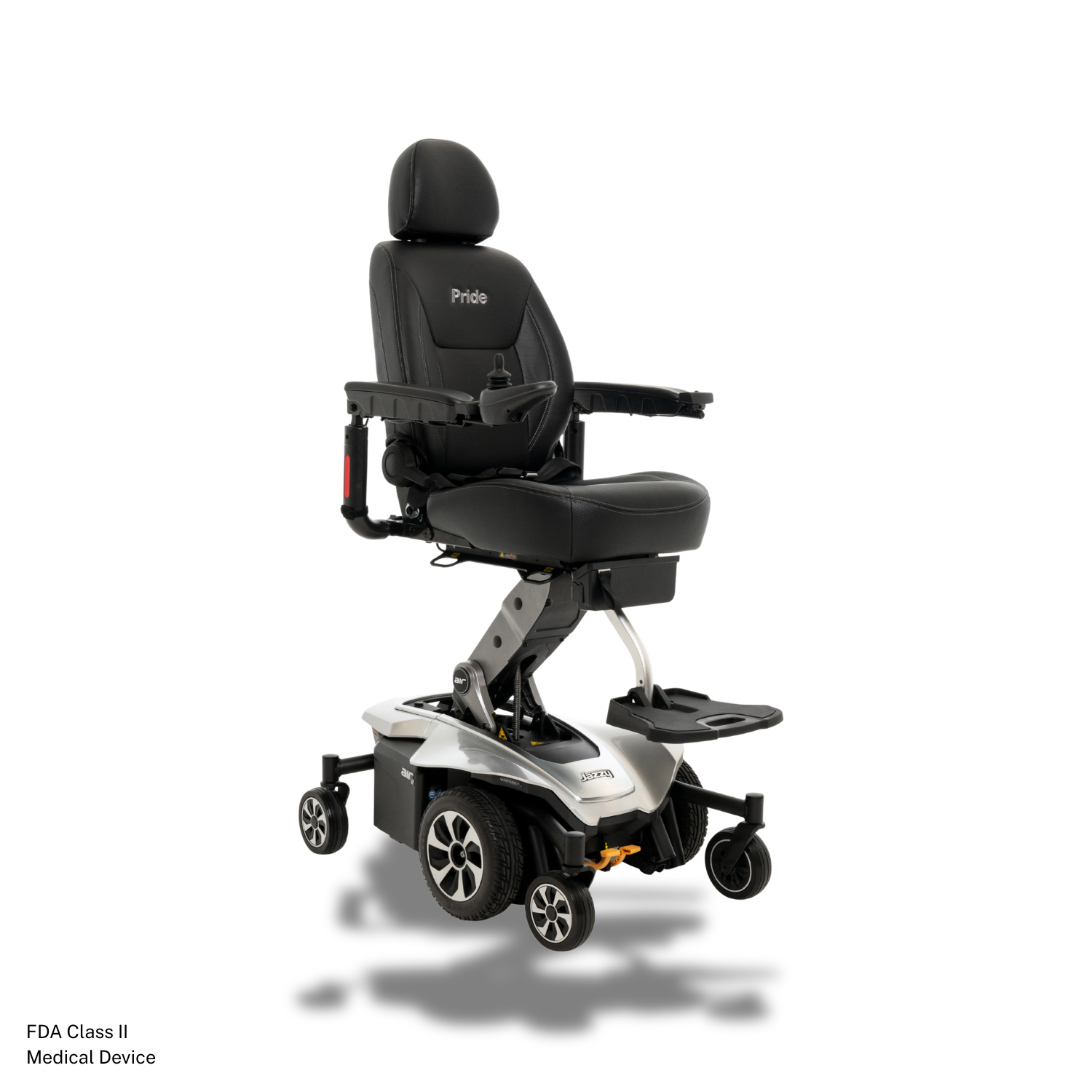

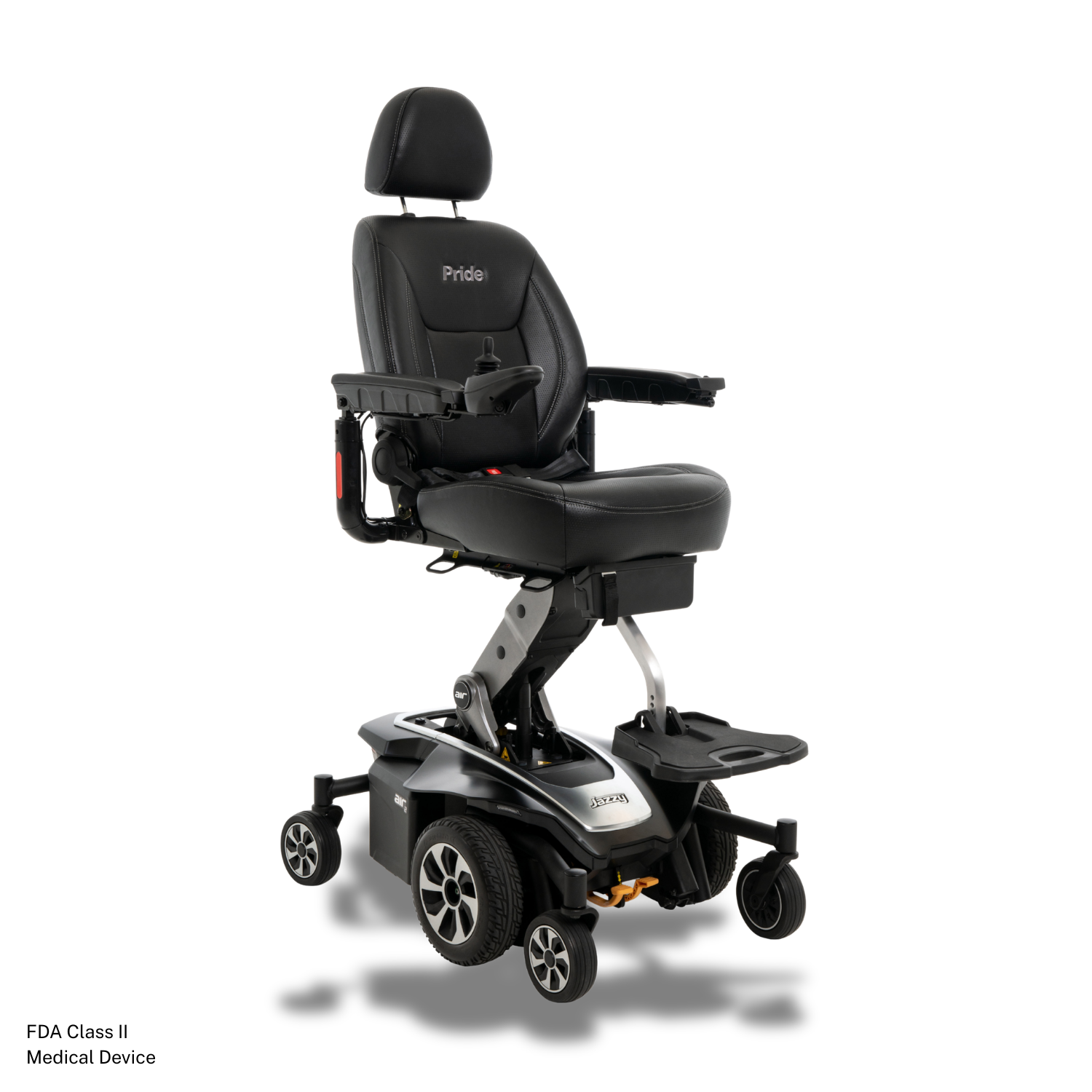

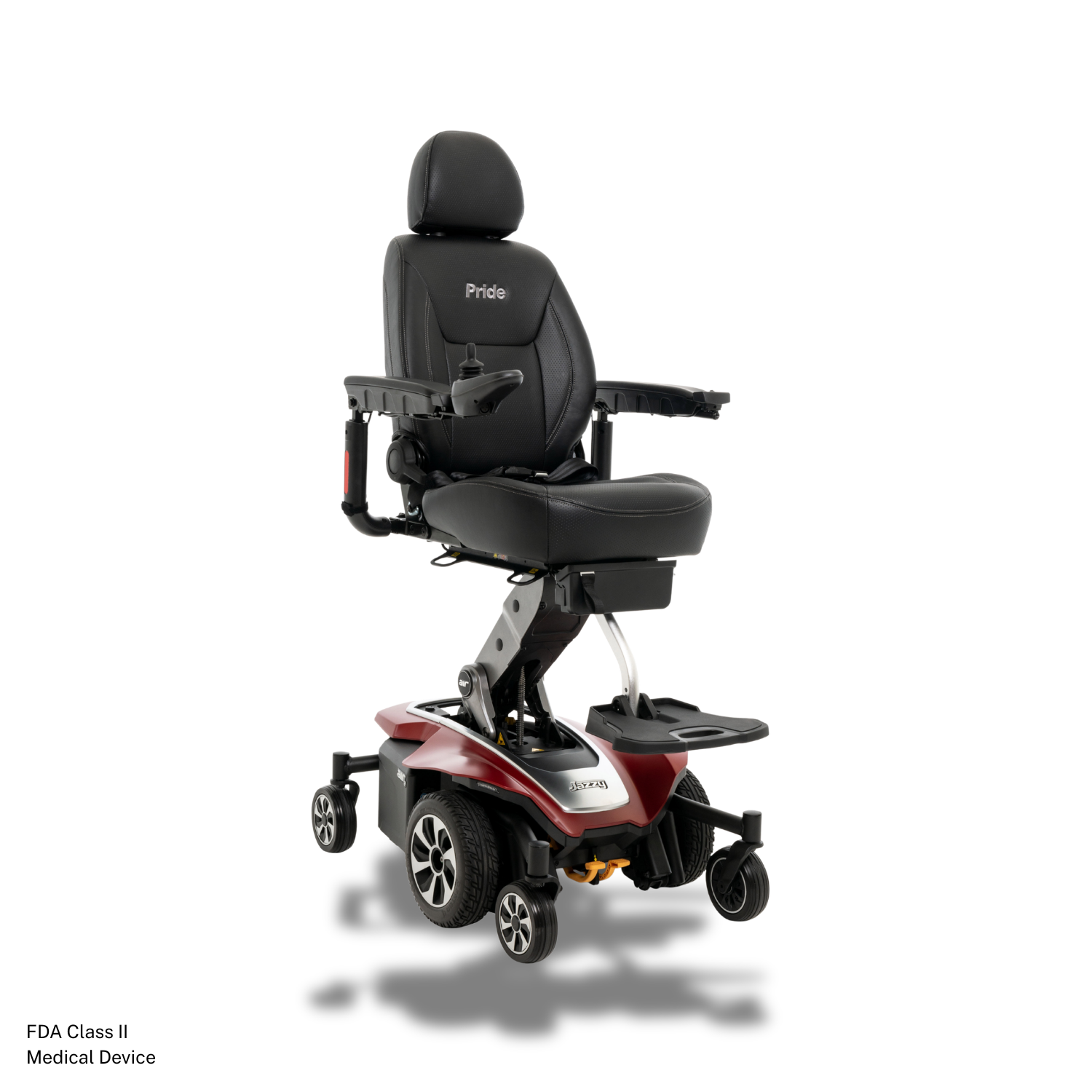

At the touch of a switch, the Jazzy Air 2 elevates 12” in just 11 seconds. With a sleek, more modern look, this power chair safely drives at speeds up to 4 mph while elevated, allowing users to enjoy face-to-face social engagement. With Mid-Wheel 6 Drive and Active-Trac Suspension, the Jazzy Air 2 offers enhanced performance and stability both indoors and out.
- High-back or solid seat pan, reclining sport seat. Seat features 2” of depth adjustment. Choice of 16”x16”-18”, 18”x18”-20”, 20”x20”-22”
- Angle, height and depth adjustable armrests
- Height adjustable headrest
- Newly re-designed lift features:
- 2” lower seat-to-floor height enables user to sit comfortably at standard table or desk
- Raises and lowers in 11 seconds by using the Air switch or VR2 joystick
- Additional features:
- Drives safely at 4 mph in the elevated position
- Integrated foot platform with rubber insert and 2”of adjustment for comfort in both the elevated and non-elevated positions

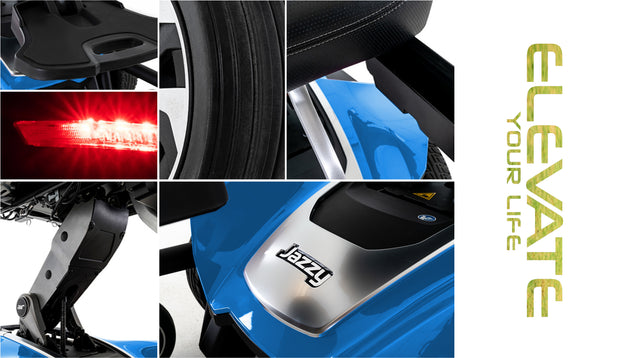

- Bright LED marker lights offers visibility in all environments
- Active-Trac suspension with Mid-Wheel 6 Technology allows for maximum stability in the elevated and non-elevated positions
- Single-sided caster forks for enhanced maneuverability
- Under seat front storage compartment keeps your valuables accessible
Additional Specifications
- Standard Battery Charger: 5 amp, off-board
- Per-Charge Range: Up to 16.8 miles (U1)

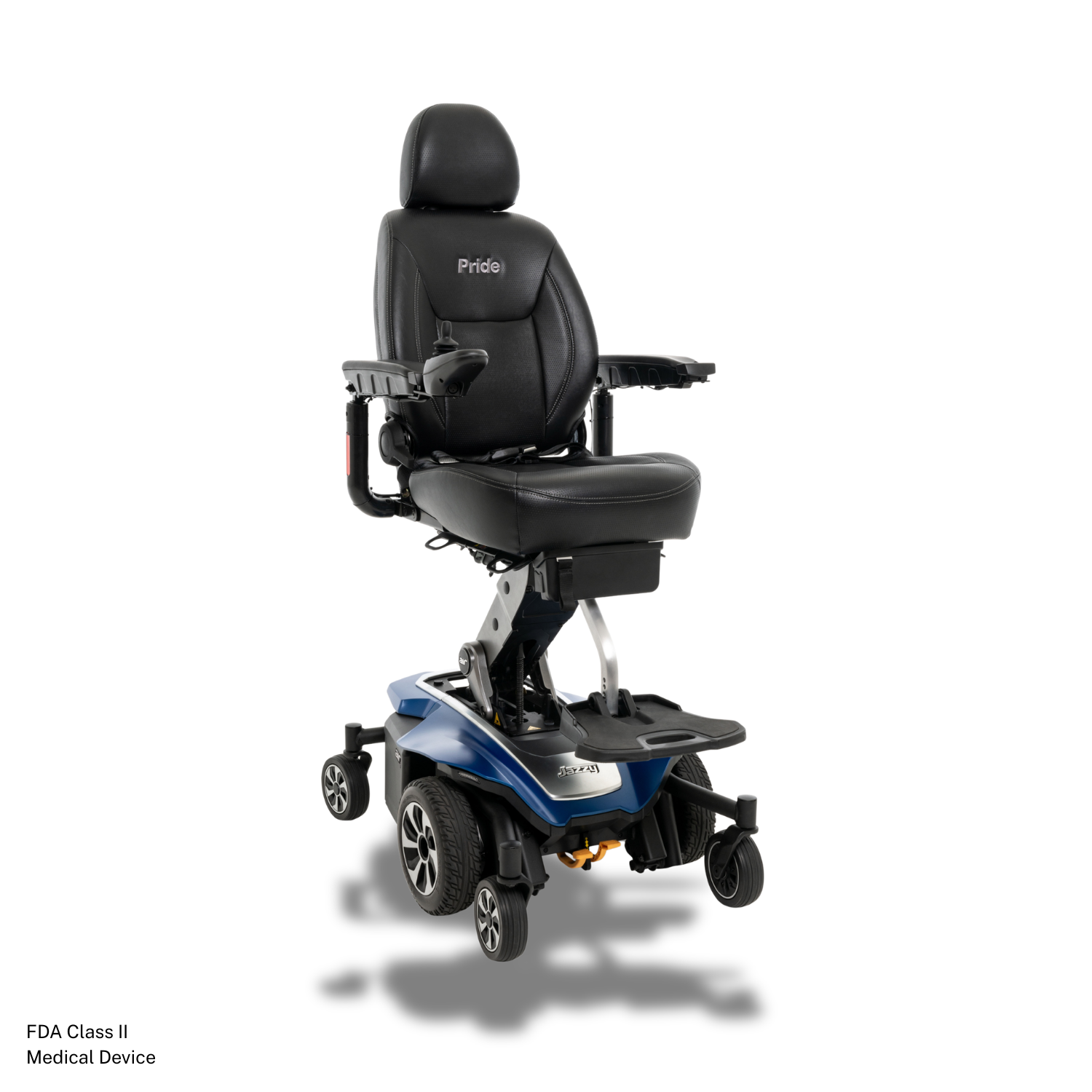

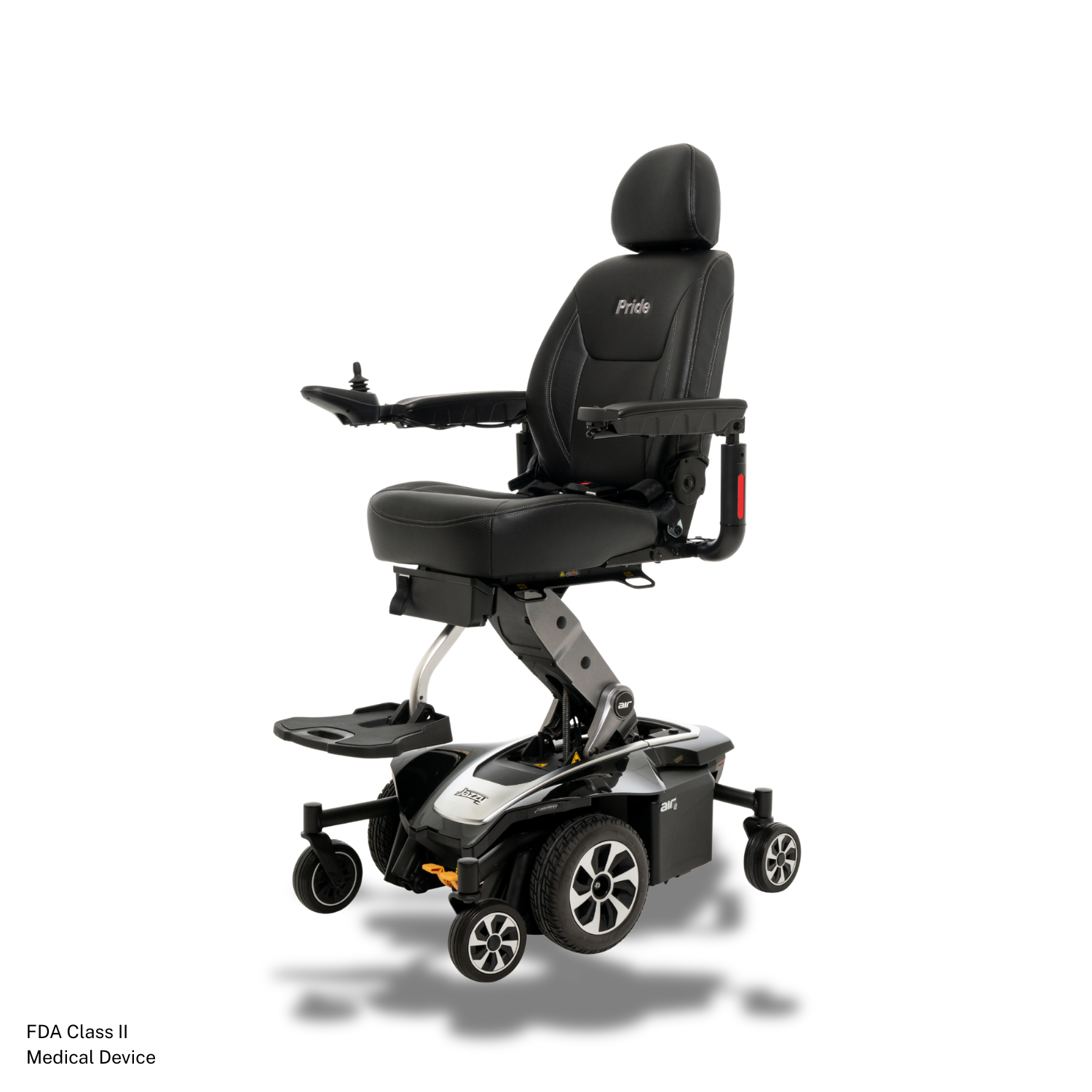

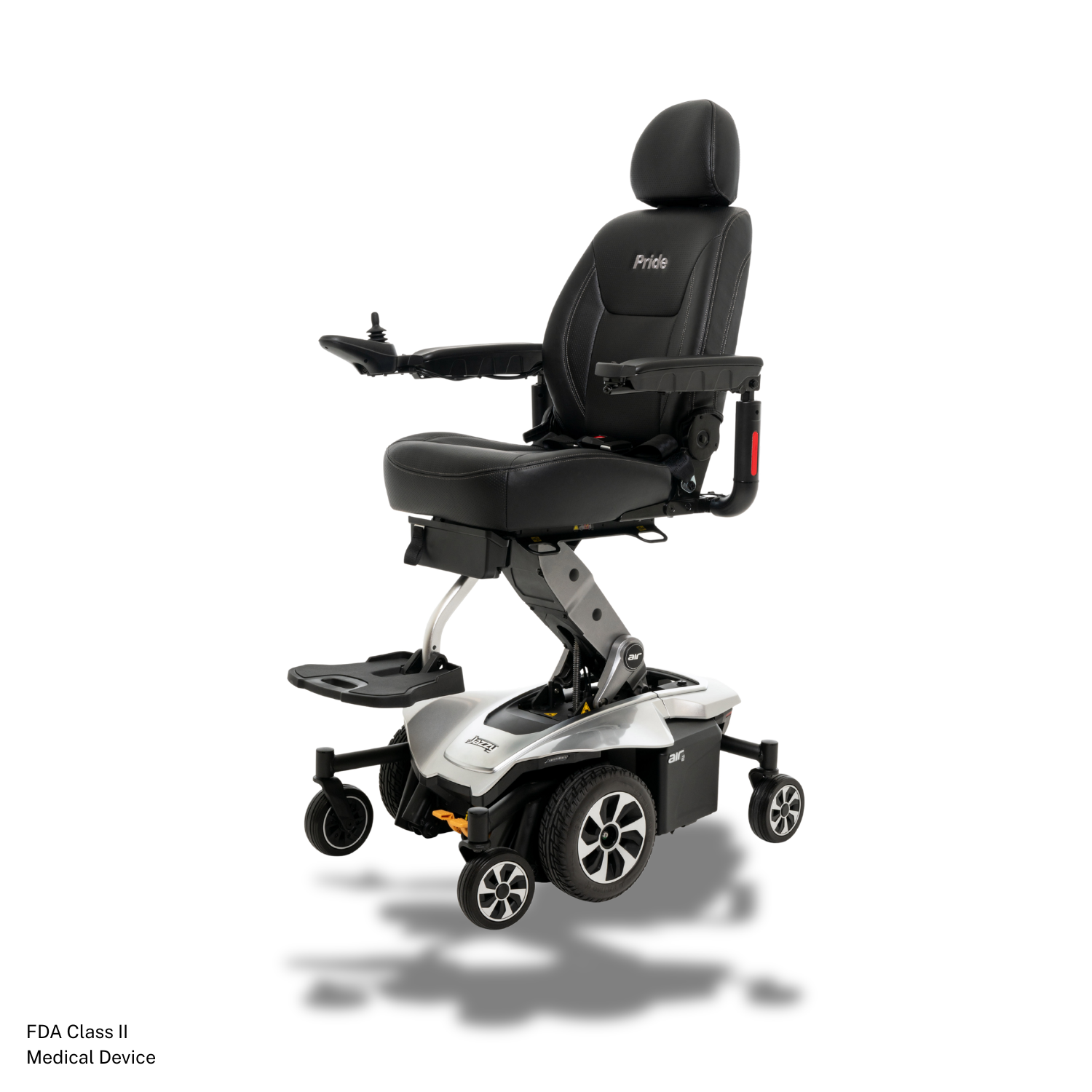

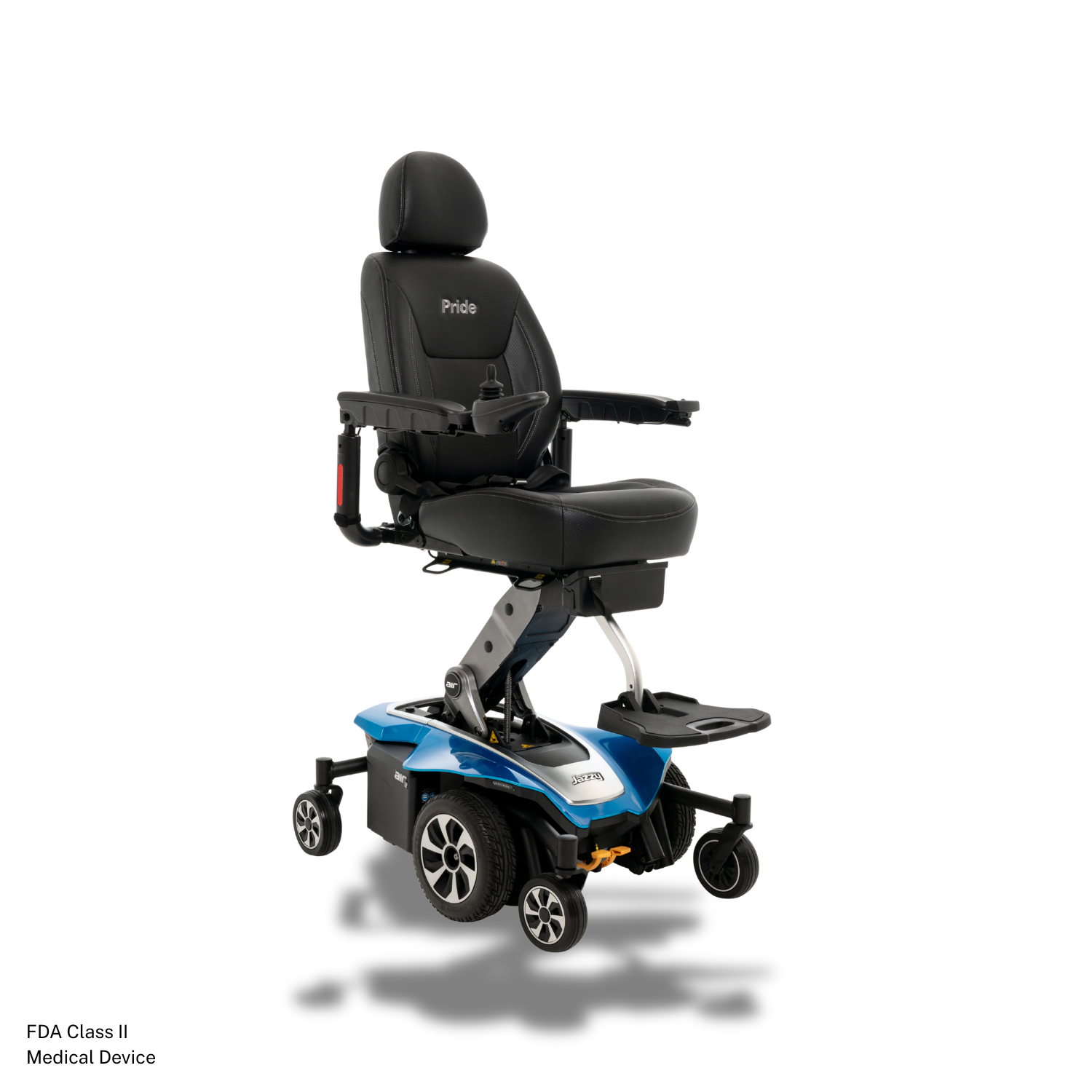

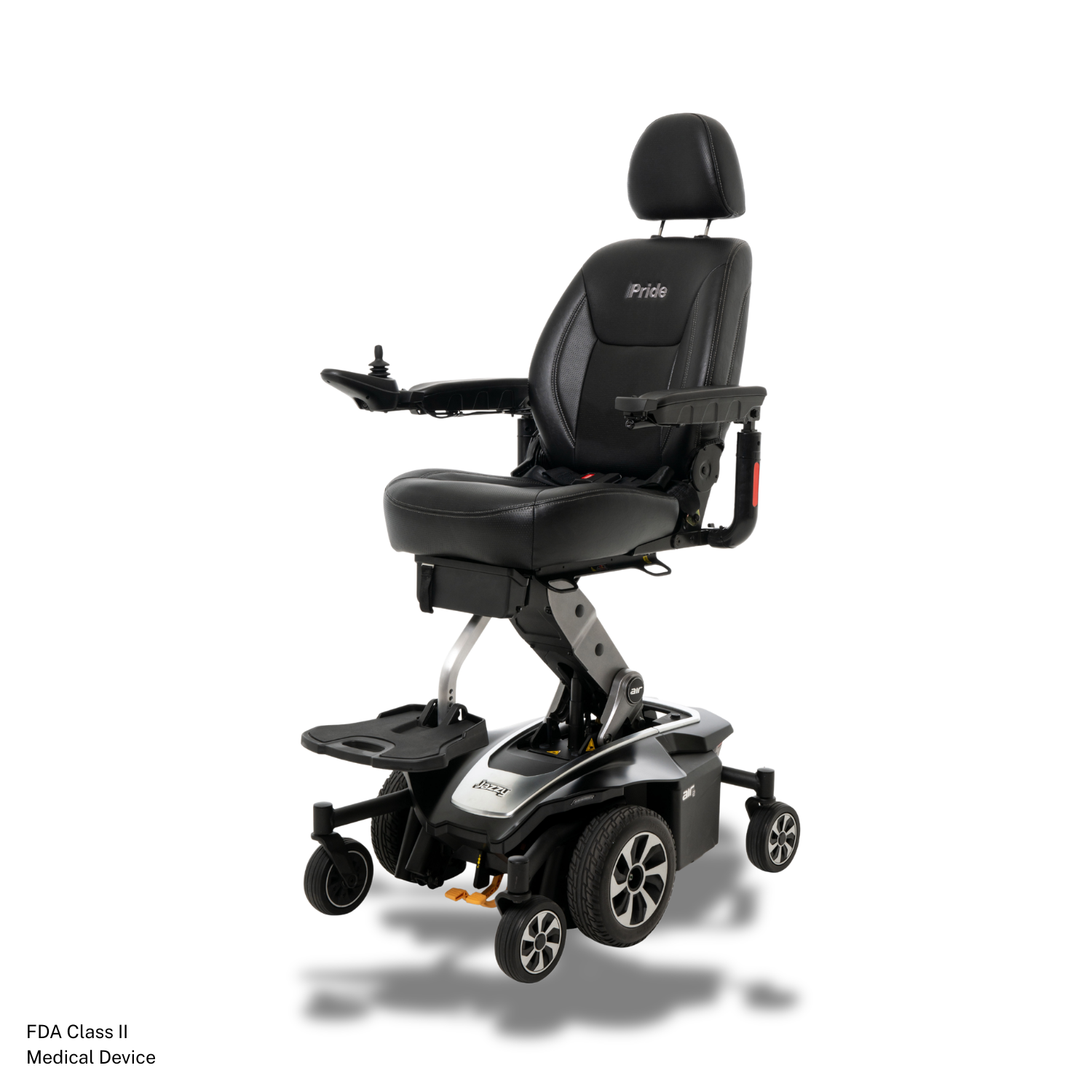

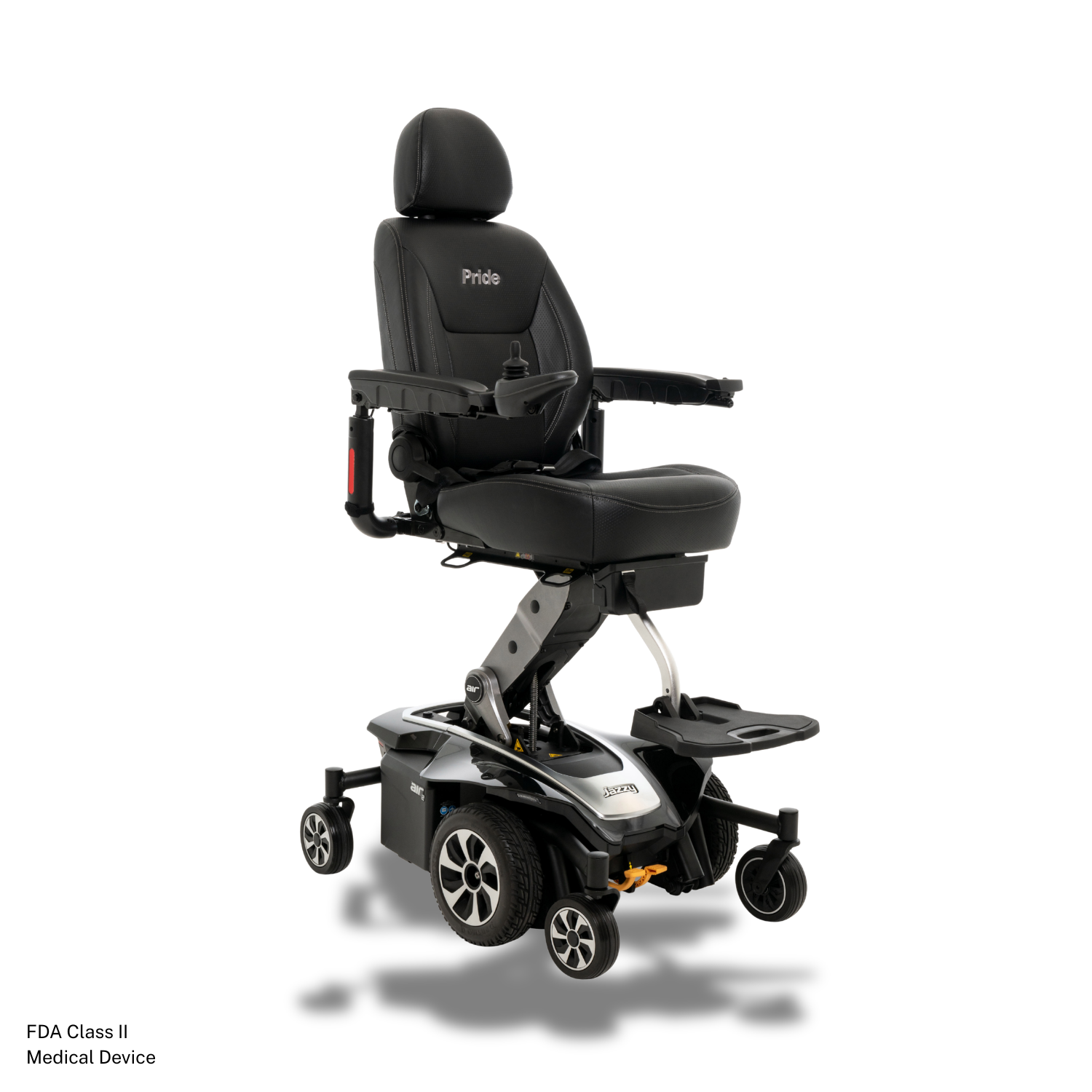

Model: Jazzy Air 2
Weight Capacity: 300 lbs.
Turning Radius: 24.25”
Width: 23.25"
Length: 33.21"/42" (with footplate)"
Maximum Speed: Up to 4.0 mph (elevated and non-elevated position)
Ground Clearance: 1" at motor bracket
Front Wheels: 6" solid casters
Drive Wheels: 10" flat free
Rear Wheels: 6" solid casters
Drivertrain: Two motor, Mid-Wheel 6 drive
Braking Sytem: Regenerative and Electro-mechanical
Suspension Type: Active-Trac with Mid-Wheel 6 Technology
High-Back Seat (max. size): 20"W x 20"-22"D
High-Back Seat-to-Floor Range: 21.25” – 33”
Battery Size (2 required): 12 volt, U-1
Standard Battery Charger: 5 amp, off-board
Per-Charge Range: Up to 16.8 miles (U1)
Battery Weight: U1 Batteries: 24.5 lbs.
NOTE: FOR RETURN REQUESTS, CUSTOMERS ARE RESPONSIBLE FOR A 25% RE-STOCKING FEE OF THE ORIGINAL ITEM PRICE + $115.00 BACKFREIGHT CHARGE
Return Policy
◦ 5-YEAR WARRANTY ON FRAME
For five (5) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
◦ 3-YEAR LIMITED WARRANTY
For three (3) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
◦ 13-MONTH LIMITED WARRANTY
For thirteen (13) months from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Electronic Assemblies including:
- Charger Assembly
- Controller
- Joystick
Main Frame Assemblies, including:
Other components, including:
- Electrical Harnesses
- Accessories
- Anti-tip Forks
- Front Riggings
- Bearings and Bushings
- Motor/Gearbox Assembly
- Brakes (Electronic Function ONLY)
- Caster Forks
- Front Rigging Mounting Brackets
◦ BATTERY 13-MONTH WARRANTY
The batteries are covered by a separate thirteen (13) month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.
◦ WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
- ABS Plastic Shrouds
- Brake Pads
- Motor Brushes
- Tires and Tubes
- Upholstery and Seating
- Fuses/Bulbs
- Circumstances beyond the control of Pride
- Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products
- Repairs and/or modifications made to any part without specific consent from Pride
Exclusions also include components with damage or failure caused by:
- Parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider.
- Contamination
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Use other than normal design specifications
- Improper operation, maintenance, or storage
Warranty Insert
**NOTE: After the end of your warranty, please contact WSR Solutions at 1-888-584-3095 for all your repair requests.
