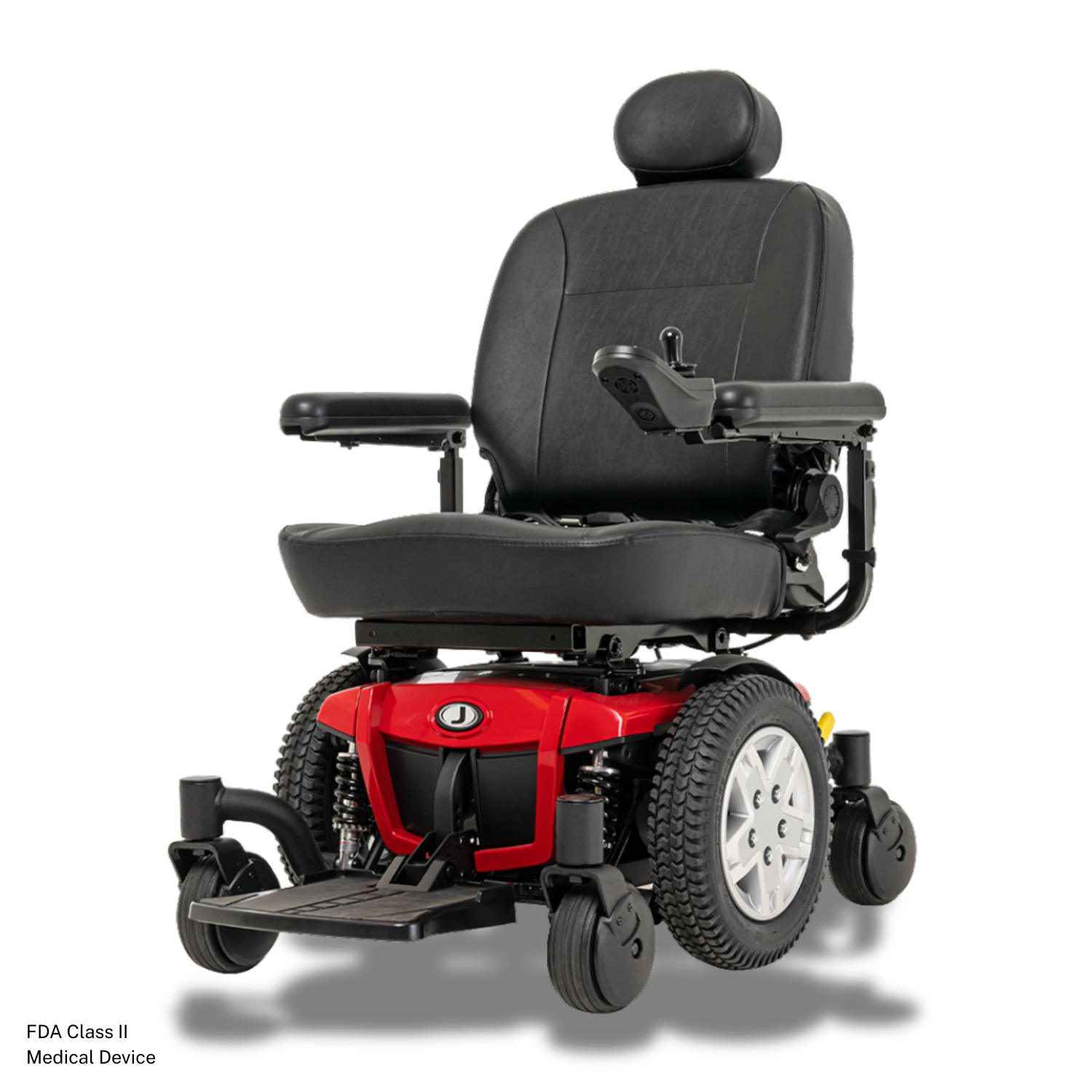

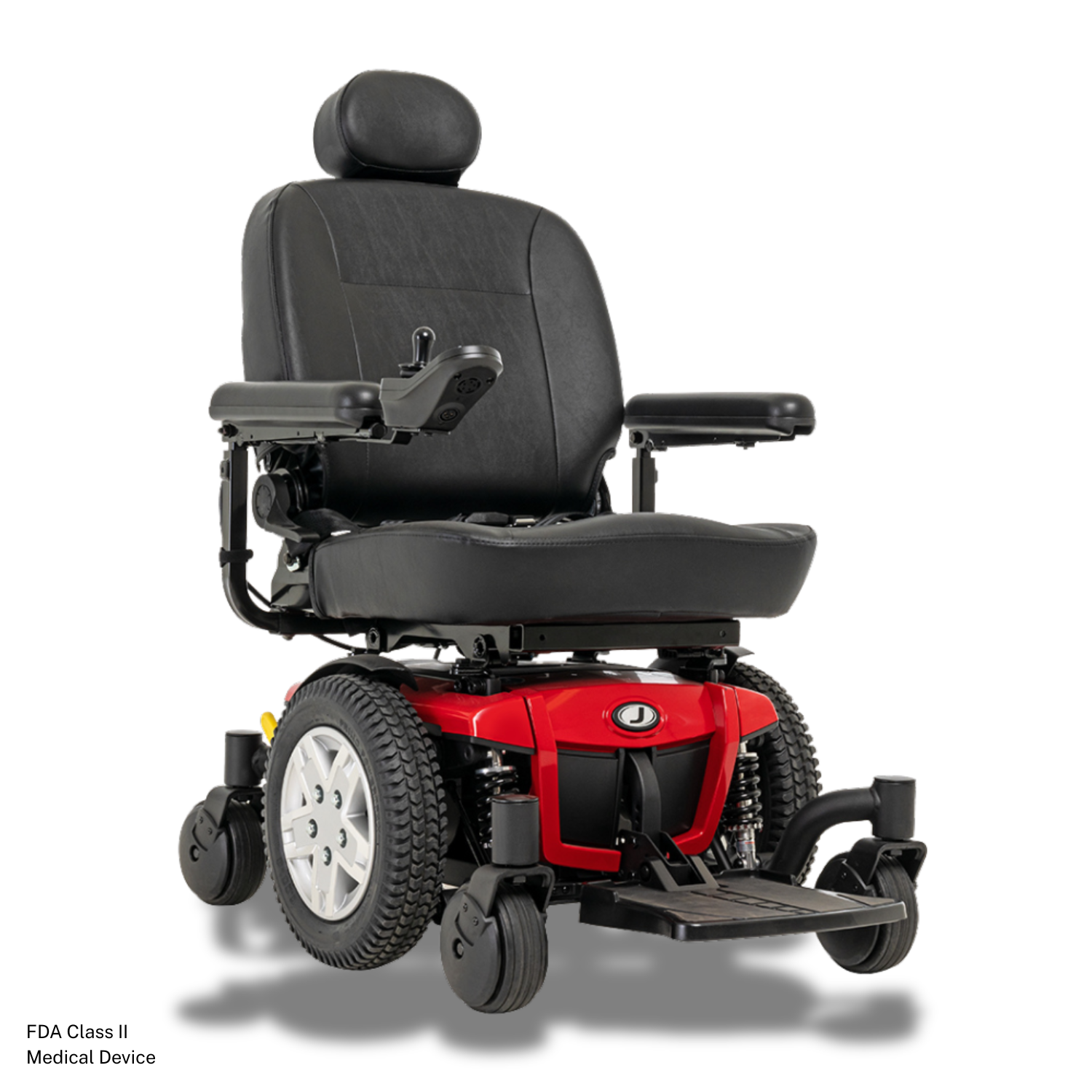

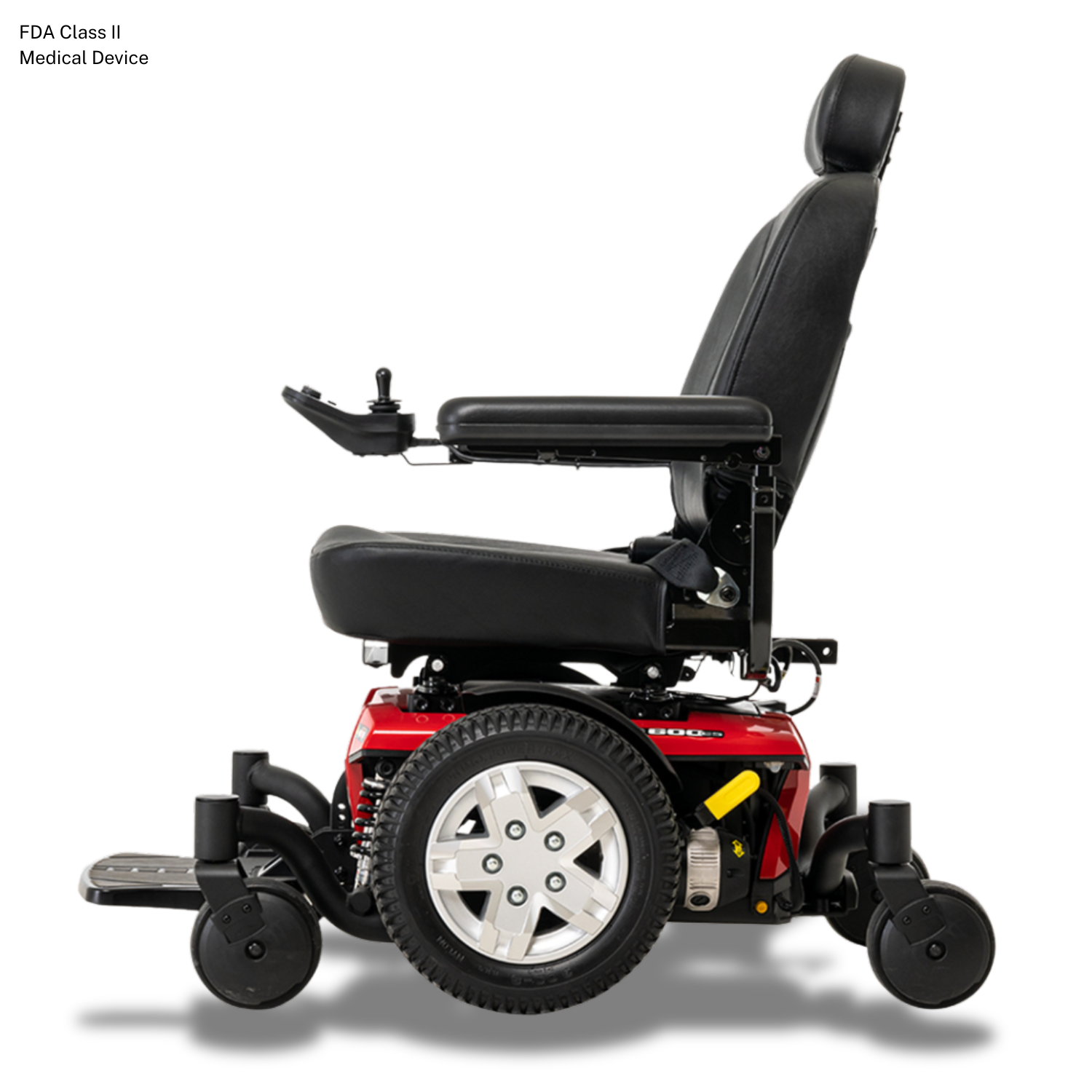

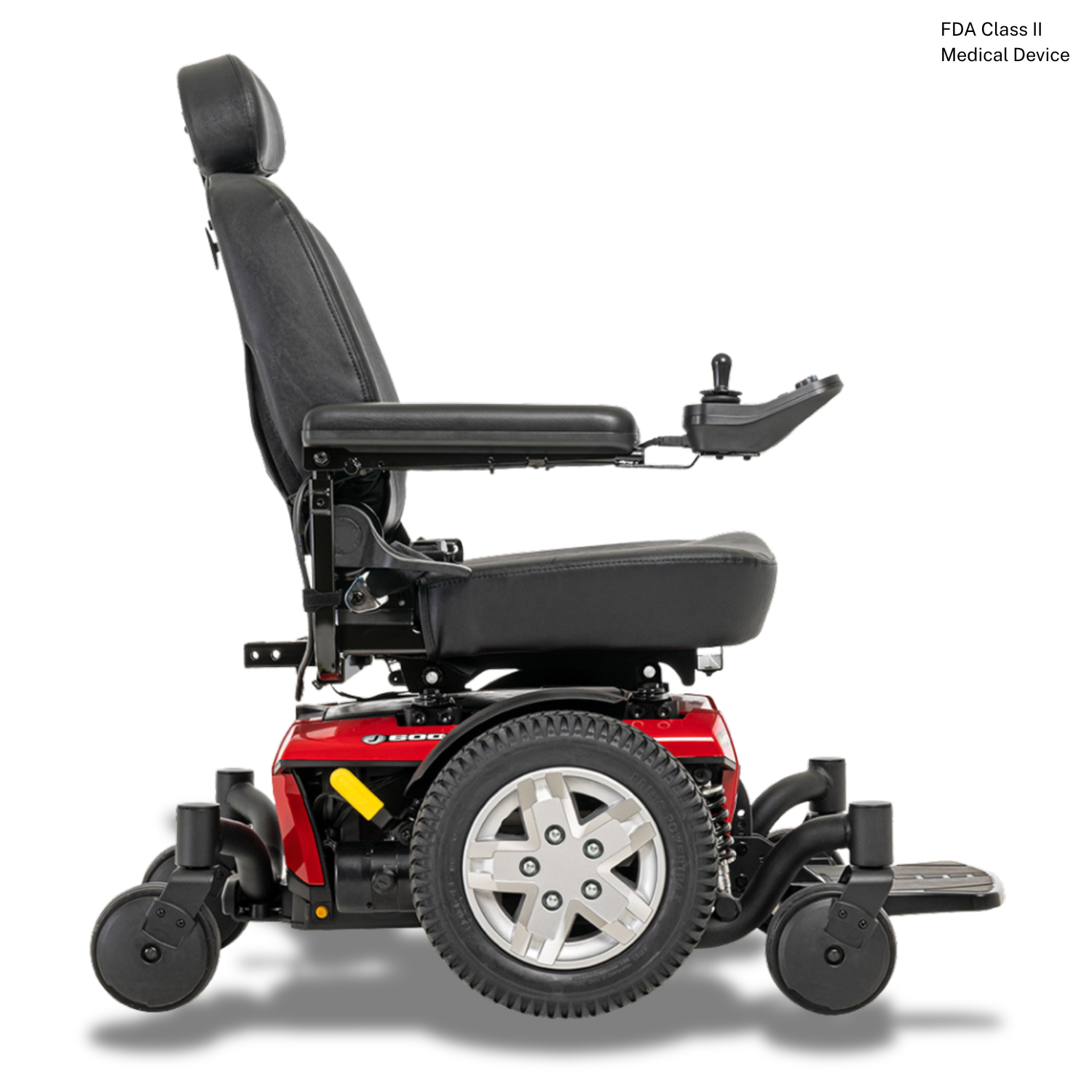

Pride Mobility Jazzy 600 ES Group 2 Power Chair

The Jazzy 600 ES features patented Mid-wheel 6 technology and Active-Trac ATX Suspension for an extraordinary level of performance, maneuverability and the tightest turning radius in the Jazzy line.

Mid-wheel 6 technology incorporates ATX Suspension for extra stability with independent front casters that raise and lower as needed to compensate instantly for changes in terrain and ease of transitions.

The Jazzy 600 ES offers true all-around performance indoors and out, transitions curbs smoothly and is rated for climbing and aggressive performance, making it an excellent power chair choice.

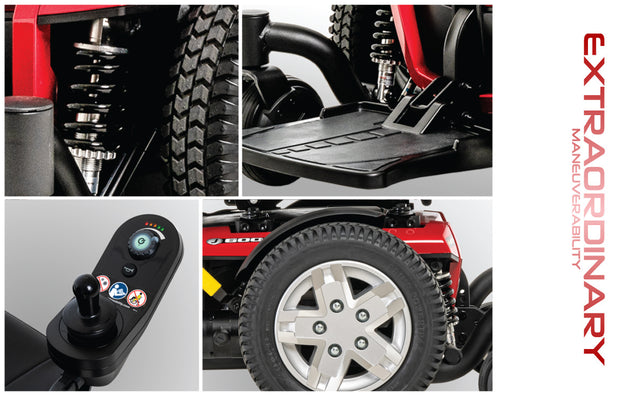

• OMNI-Casters (nylon, spherical-shaped casters) on front and rear to prevent wheel hang-ups
• Side-mounted, easily accessible freewheel levers
• Active-Trac ATX Suspension for enhanced performance over more varied terrain
• Easy front access to batteries

Additional Specifications

• Synergy Seating: 20"W x 20"D
• Synergy Seat-to-Floor Range: 17.25" - 19.25"
• Weight of Heaviest Piece: 124 lbs.
• Standard Seat Weight: 52 lbs. (high-back)
• Standard Seat Size: 18" x 18"-20" / 20" x 18"-20"

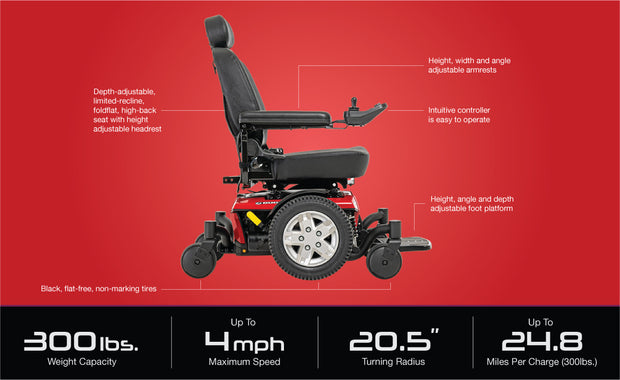

Model: Jazzy 600 ES

Weight Capacity: 300 lbs.

Turning Radius: 20.5"

Width: 24.5"

Length: 35.5"/40.25" (with footplate)

Maximum Speed: Up to 4 mph

Ground Clearance: 2.75"

Front Wheels: 6" solid OMNI-Casters

Drive Wheels: 14" foam-filled

Rear Wheels: 6" solid OMNI-Casters

Drivertrain: Two-motor, mid-wheel drive

Braking Sytem: Regenerative and electro-mechanical

Suspension Type: Active-Trac (ATX)

High-Back Seat (max. size): 20"W x 20"D

High-Back Seat-to-Floor Range: 20.5”-22.5”

Standard Electronics: 50A, Dynamic Shark

Battery Size (2 required): 12 volt, NF-22

Standard Battery Charger: 5A, off-board

Per-Charge Range: up to 24.8 miles 300lbs.), up to 29.5miles (200lbs.)

Battery Weight: 37 lbs. each

NOTE: FOR RETURN REQUESTS, CUSTOMERS ARE RESPONSIBLE FOR A 25% RE-STOCKING FEE OF THE ORIGINAL ITEM PRICE + $115.00 BACKFREIGHT CHARGE

Return Policy

◦ 5-YEAR WARRANTY ON FRAME

For five (5) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

• Main Frame

◦ 3-YEAR LIMITED WARRANTY

For three (3) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

• Fixed-position Seat Post

◦ 13-MONTH LIMITED WARRANTY

For thirteen (13) months from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

Electronic Assemblies including:

• Charger Assembly
• Controller
• Joystick

Main Frame Assemblies, including:

• Metal Seat Framing

Other components, including:

• Electrical Harnesses
• Accessories
• Anti-tip Forks
• Front Riggings
• Bearings and Bushings
• Motor/Gearbox Assembly
• Brakes (Electronic Function ONLY)
• Caster Forks
• Front Rigging Mounting Brackets

◦ BATTERY 13-MONTH WARRANTY

The batteries are covered by a separate thirteen (13) month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.

◦ WARRANTY EXCLUSIONS

This warranty does not extend to those items which may require replacement due to normal wear and tear.

• ABS Plastic Shrouds
• Brake Pads
• Motor Brushes
• Tires and Tubes
• Upholstery and Seating
• Fuses/Bulbs
• Circumstances beyond the control of Pride
• Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products
• Repairs and/or modifications made to any part without specific consent from Pride

Exclusions also include components with damage or failure caused by:

• Parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider.
• Contamination
• Abuse, misuse, accident, or negligence
• Battery fluid spillage or leakage
• Use other than normal design specifications
• Improper operation, maintenance, or storage

Warranty Insert

**NOTE: After the end of your warranty, please contact WSR Solutions at 1-888-584-3095 for all your repair requests.

Brochures

◦ Jazzy 600 ES Brochure (US)

◦ Jazzy Power Chairs Catalog (US)

Owner's Guides

◦ Jazzy 600 ES Owner's Manual (US/Canada-English)

◦ Jazzy 600 ES Specification Sheet (US/Canada-English)

◦ Power Chair Consumer Safety Guide (US/Canada-English)
