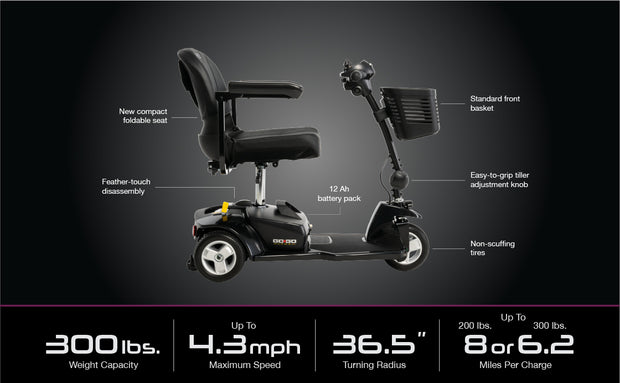

- 300 lbs. weight capacity
- (3W) Up to 4.3 mph maximum speed; (4W) up to 4.1 mph maximum speed
- Up to 6.2 miles per charge at 300 lbs., (4W) up to 6.6 miles per charge at 300 lbs
- New! Mesh back, 17”x17” compact foldable seat
- Easy-to-grip tiller adjustment knob
- A standard front basket provides storage

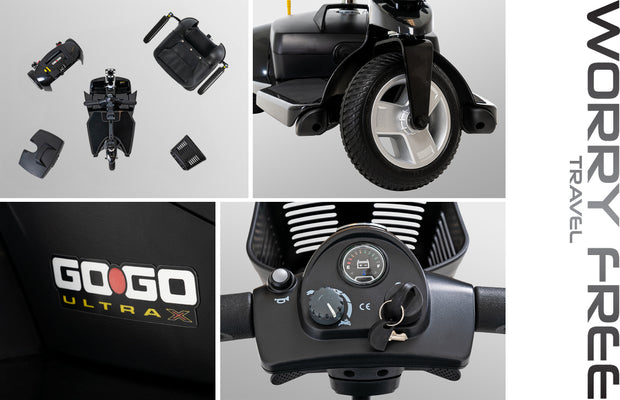

- Feather-touch disassembly easily disassembles into 5 lightweight pieces for transport and storage
- Charger port conveniently located on tiller to charge your scooter
- The dual voltage charger permits charging the battery pack on-board or off-board for added convenience
- Stable, front frame-mounted seat post
- Pride's exclusive black, non-scuffing tires

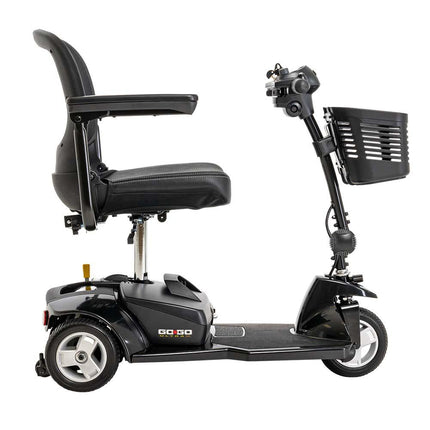

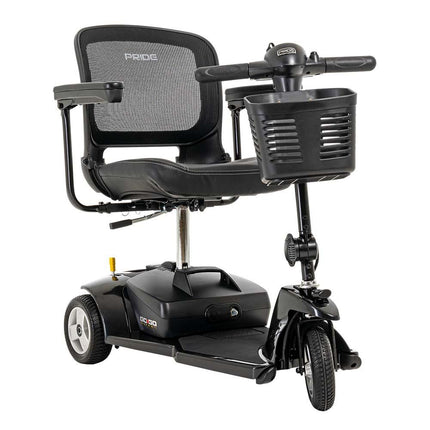

Model: Go-Go Ultra X 3-Wheel
Model Number:
Front Tires:
Rear Tires:
Maximum Speed: Up to 4.3 mph
Ground Clearance: 1.25”, 3.23" AT deck
Turning Radius: 36.5"
Overall Length: 40.25"
Overall Width of Base: 19.25"
Seat-to-Ground Height Range: 21.5"-23"
Seat Type: Compact, Foldable (17"x17")
Weight: 76.25 lbs. (w/out batteries)
Seat-to-Deck Height Range:
Battery Weight: 9 lbs. each (Battery pack is 20 lbs. with 12AH batteries.)
Battery Requirements: 12 AH Batteries
Maximum Range Per Charge: Up to 6.2 miles (300 lbs.); Up to 8 miles (200 lbs.)
Battery Charger: Off-board, 2A
Maximum Weight Capacity: 300 lbs.
Weight of Heaviest Piece: 29.5 lbs. (Front Section)
Standard Body Colors:
NOTE: FOR RETURN REQUESTS, CUSTOMERS ARE RESPONSIBLE FOR A 25% RE-STOCKING FEE OF THE ORIGINAL ITEM PRICE + $115.00 BACKFREIGHT CHARGE
◦ LIFETIME LIMITED WARRANTY ON FRAME
For the lifetime of your product from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Structural Frame Components, including:
- Main Frame
- Seat Post
- Fork
- Tiller Frame
◦ 2-YEAR LIMITED WARRANTY ON ELECTRONICS & DRIVETRAIN
For two (2) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship. Any warranty claims for electronic assemblies may become void if damage results from the use of parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider:
- Transaxle
- Bushings
- Brake
- Motor Brake (electronic function ONLY)
- Bearings
Also, Electronic Assemblies including:
- Electronic Controllers
- Harnesses
- Chargers
- Any Other Electrical Subassembly
◦ BATTERY SIX-MONTH WARRANTY
The battery is covered by a separate six-month warranty, provided by the battery manufacturer. The batteries are
not warranted by Pride.
◦ WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
- ABS Plastic Shrouds
- Brake Pads
- Motor Brushes
- Tires and Tubes
- Upholstery and Seating
- Fuses/Bulbs
- Circumstances beyond the control of Pride
- Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products
- Repairs and/or modifications made to any part without specific consent from Pride
Exclusions also include components with damage or failure caused by:
- Parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider.
- Contamination
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Use other than normal design specifications
- Improper operation, maintenance, or storage
**NOTE: After the end of your warranty, please contact WSR Solutions at 1-888-584-3095 for all your repair requests.
