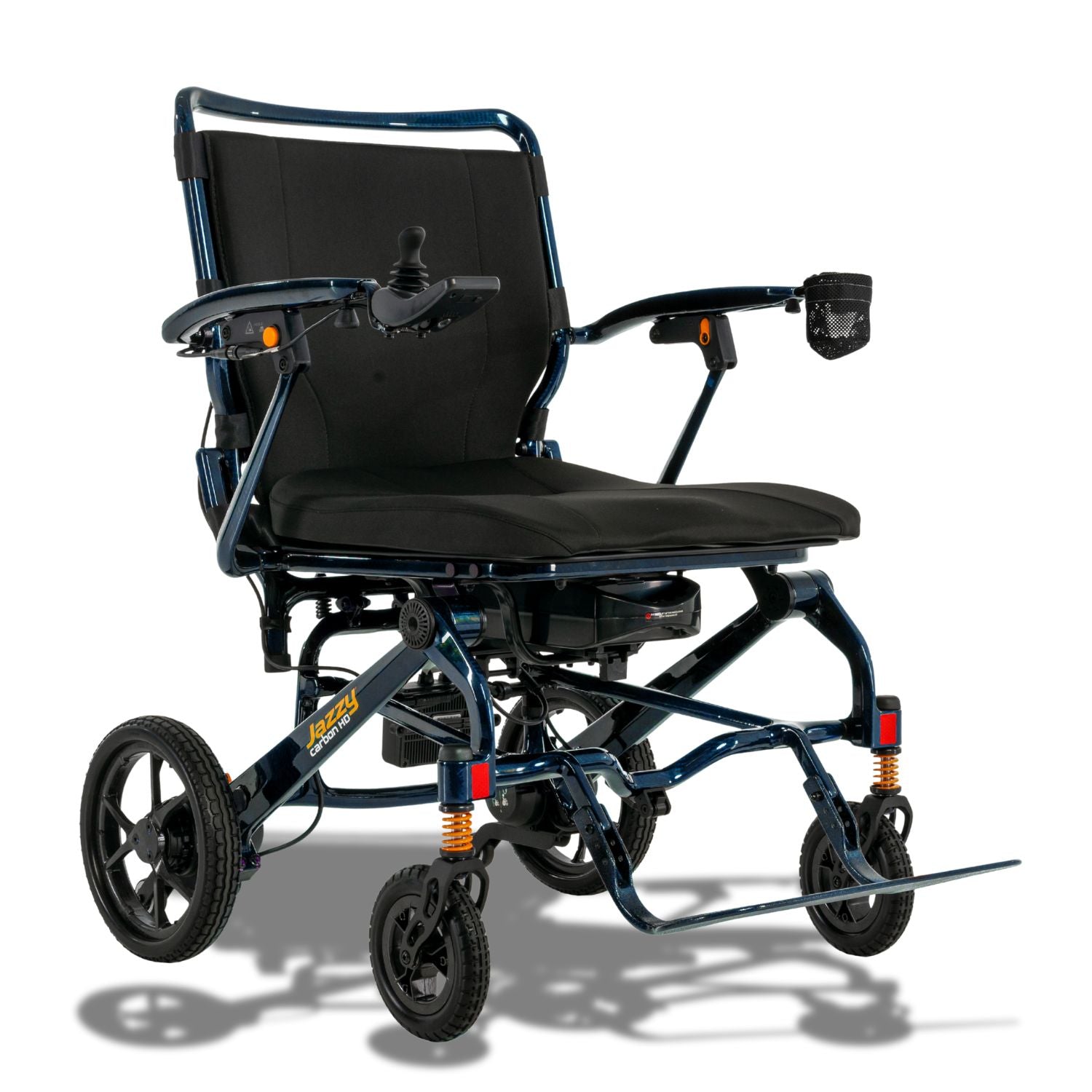

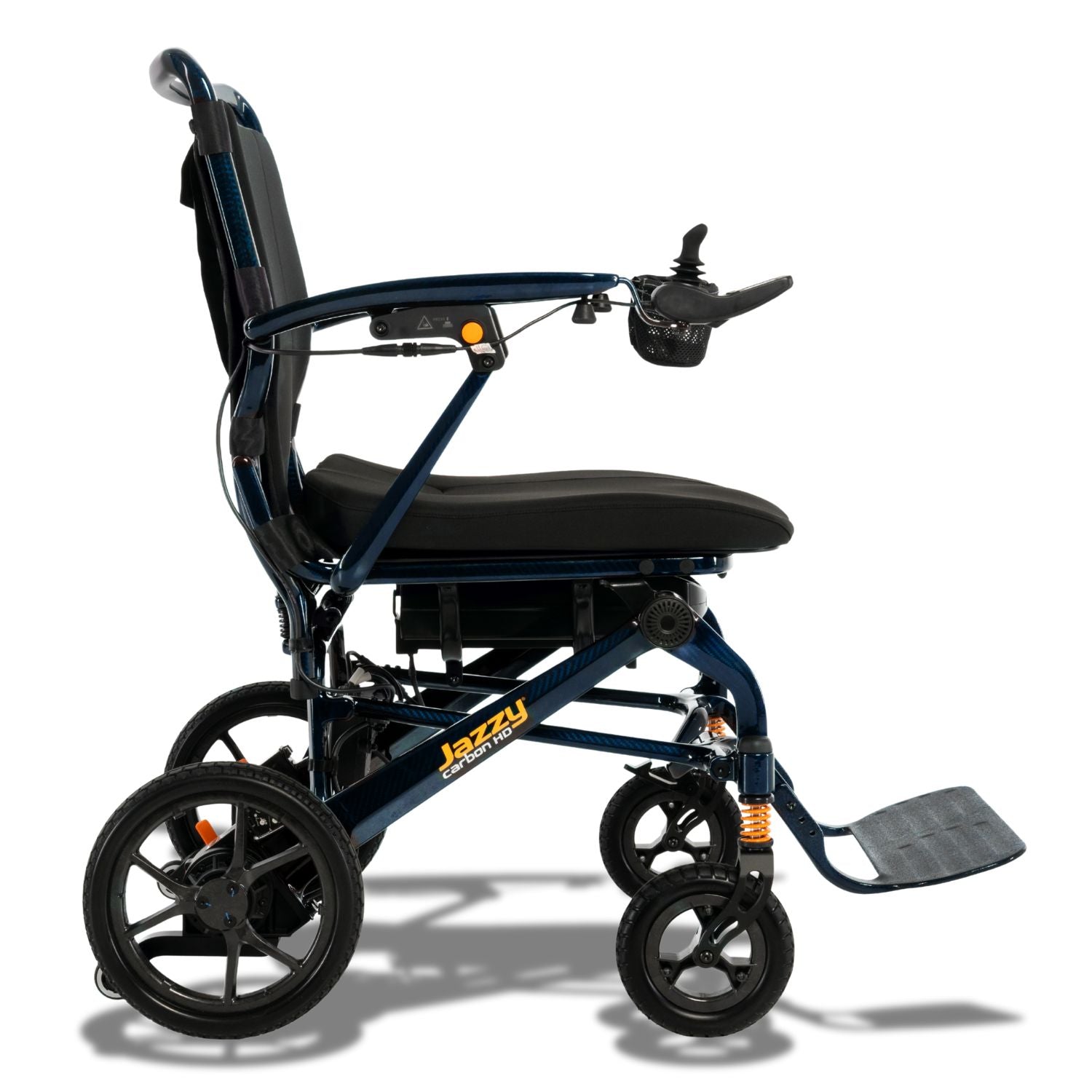

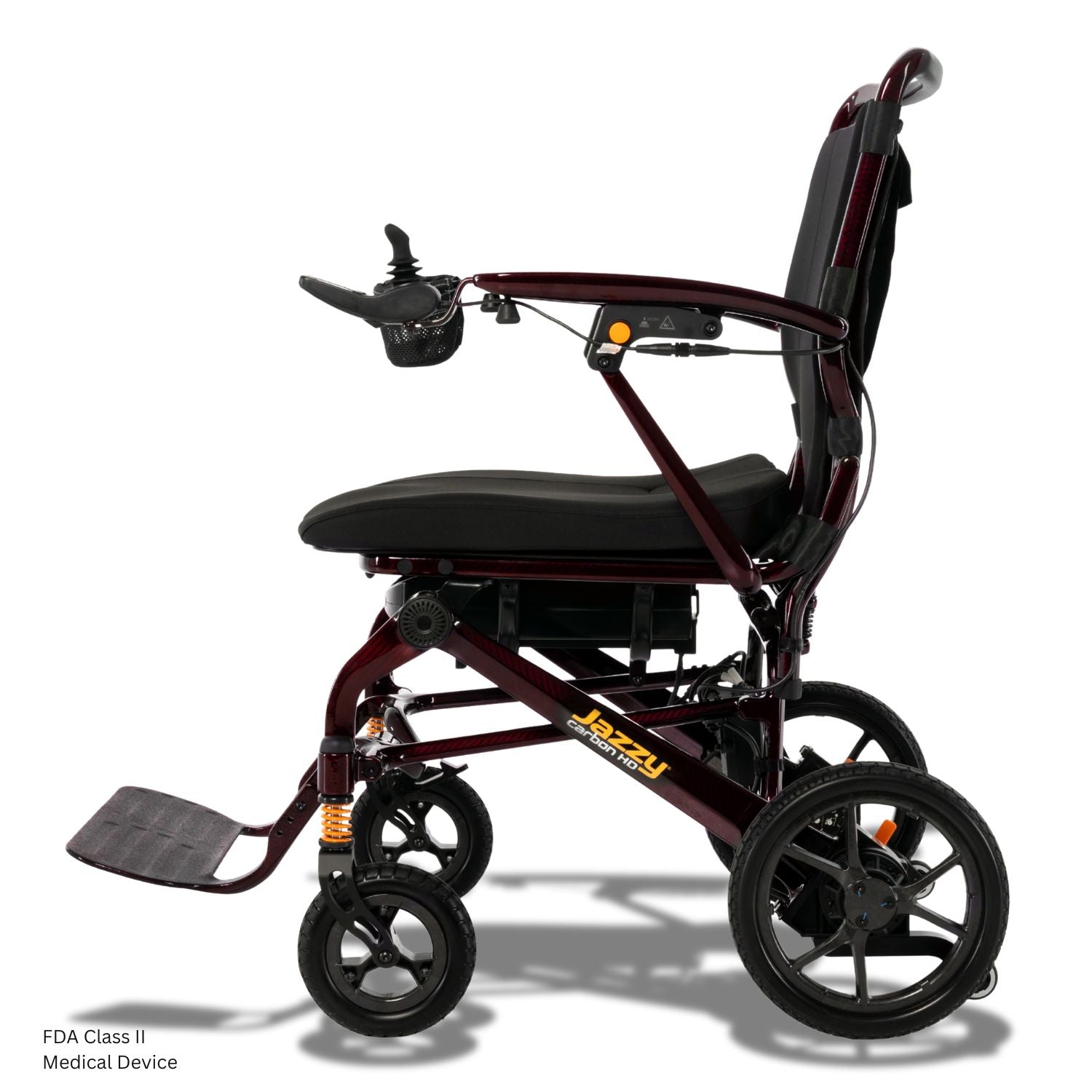

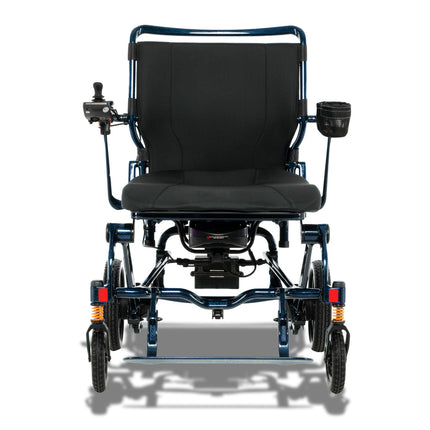

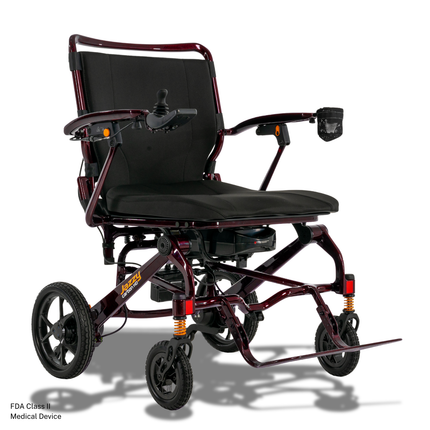

Jazzy Carbon HD Power Chair
- VendorPride Mobility
Same Day Shipping - Order by 1 PM ET.
$3,499.00
FDA Class II Medical Device
Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.

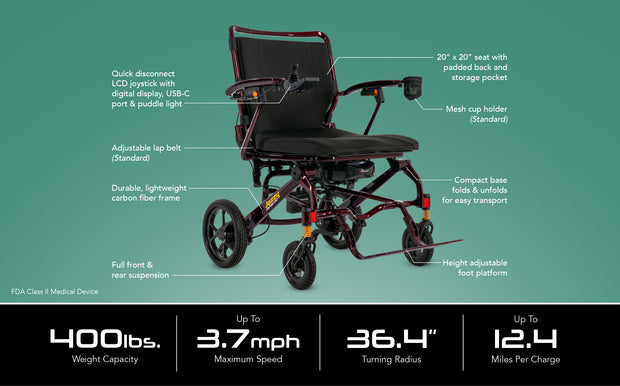

Features
- Unit weighs 32.2 lbs. without the battery
- 400-lb. weight capacity
- Durable carbon fiber frame
- Front and rear suspension
- Top speed of up to 3.7 mph
- Battery range of up to 12.4 miles
- 20" x 20" seat

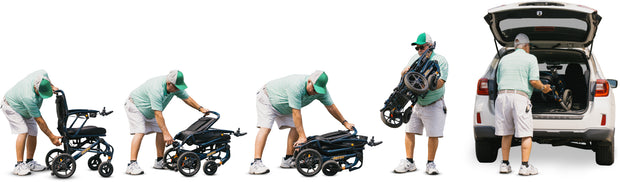

- Easy fold design that locks into folded position

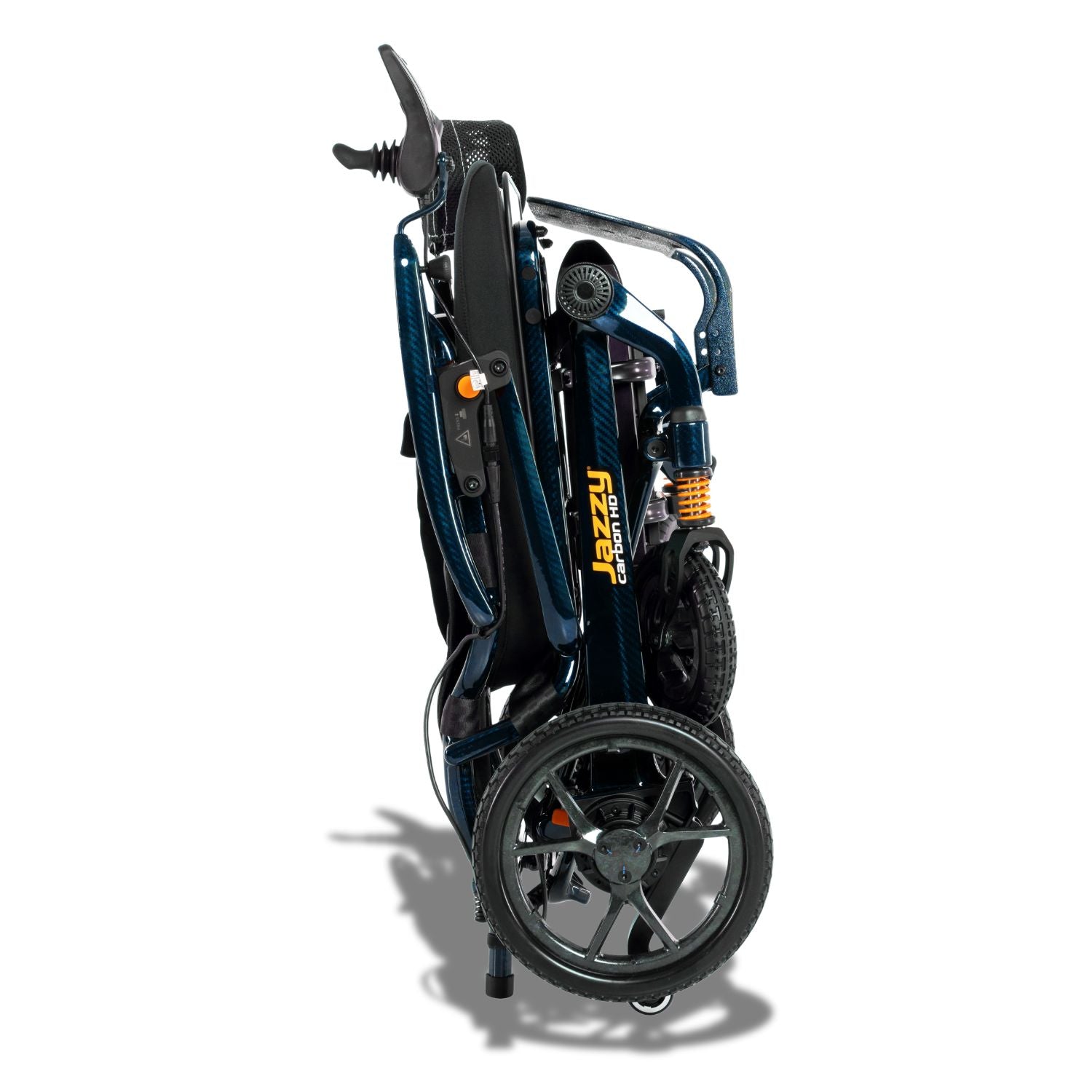

- Folded dimensions: 31.3” L x 26.4” W x 13 H
- Flip up lightweight carbon fiber arms
- Padded seat back with removable cushion
- Extra-wide adjustable foot platform 17.25” W x 5.9” D
- 20 Ah lithium battery (standard)

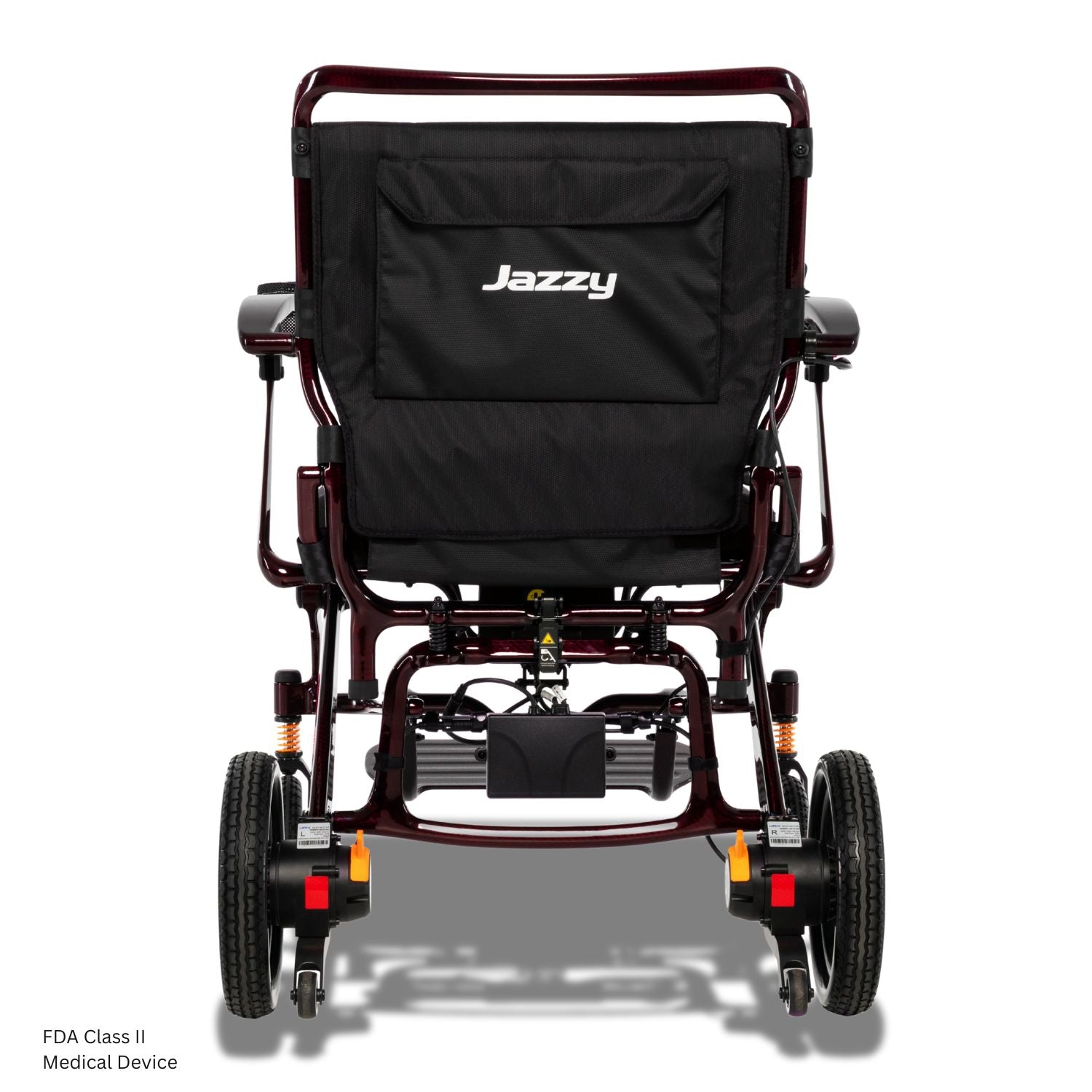

- Storage pocket on back of seat

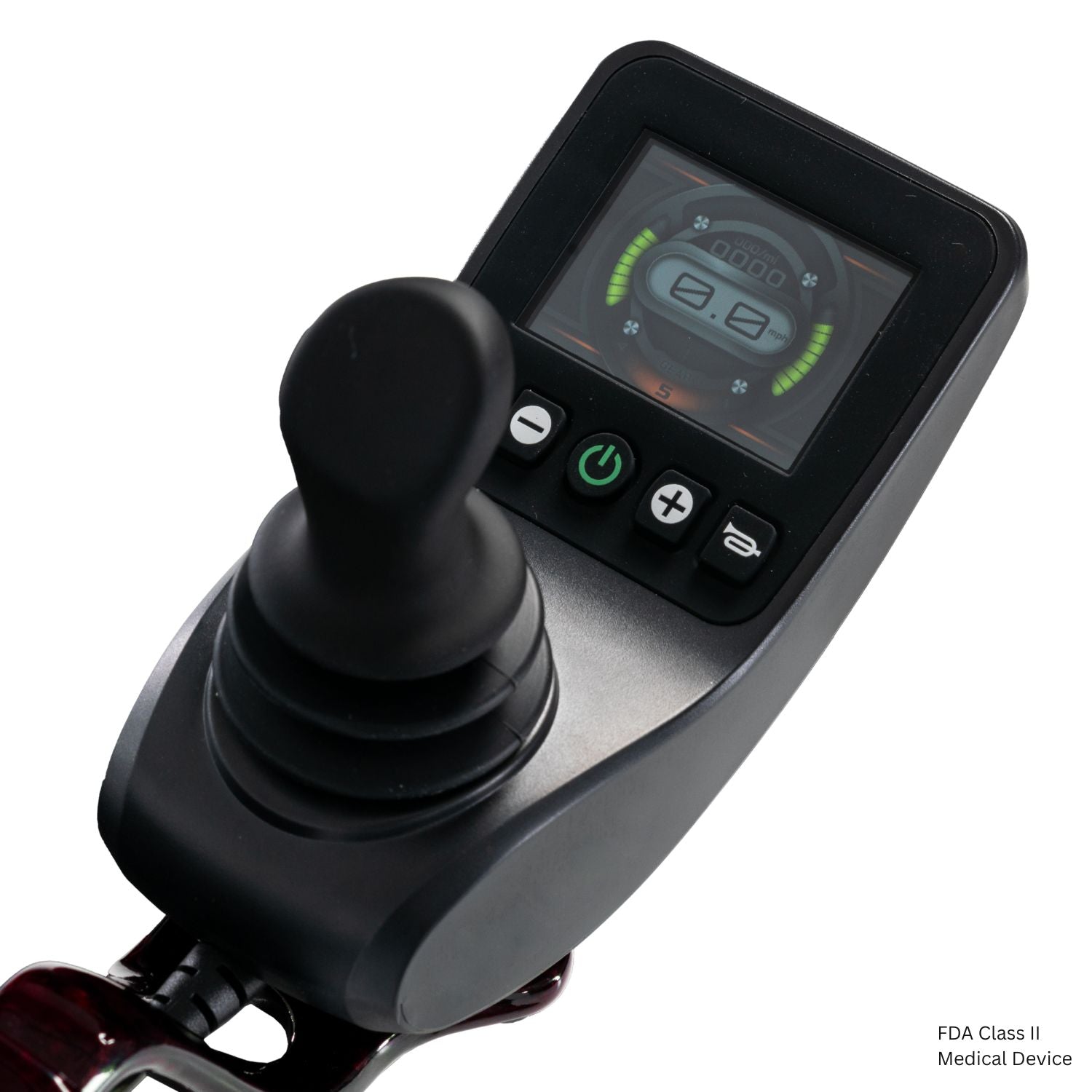

- Quick disconnect LCD joystick with digital display, USB-C port & puddle light
- Mesh cup holder, cushion, and adjustable lap belt, (standard)
- K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria.

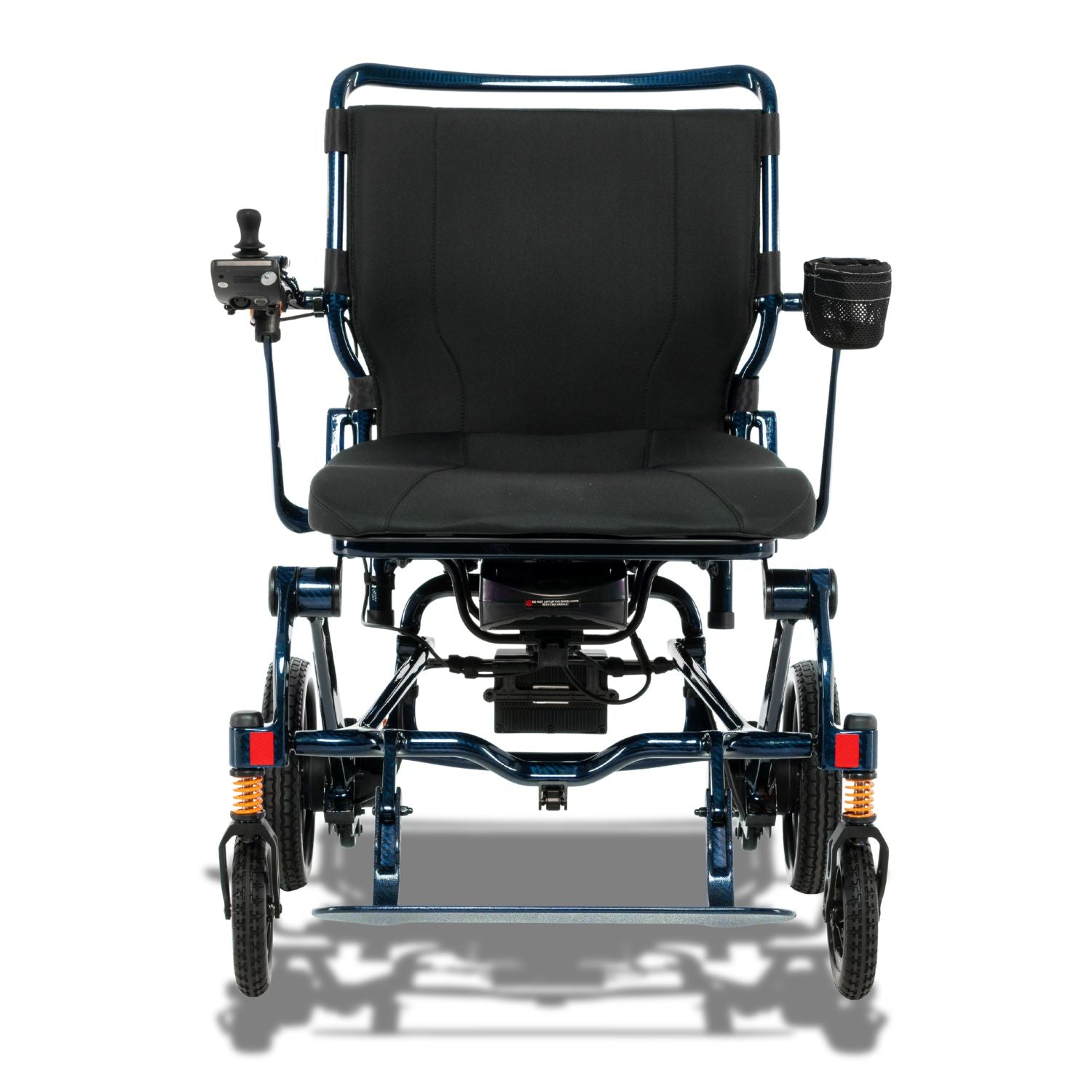

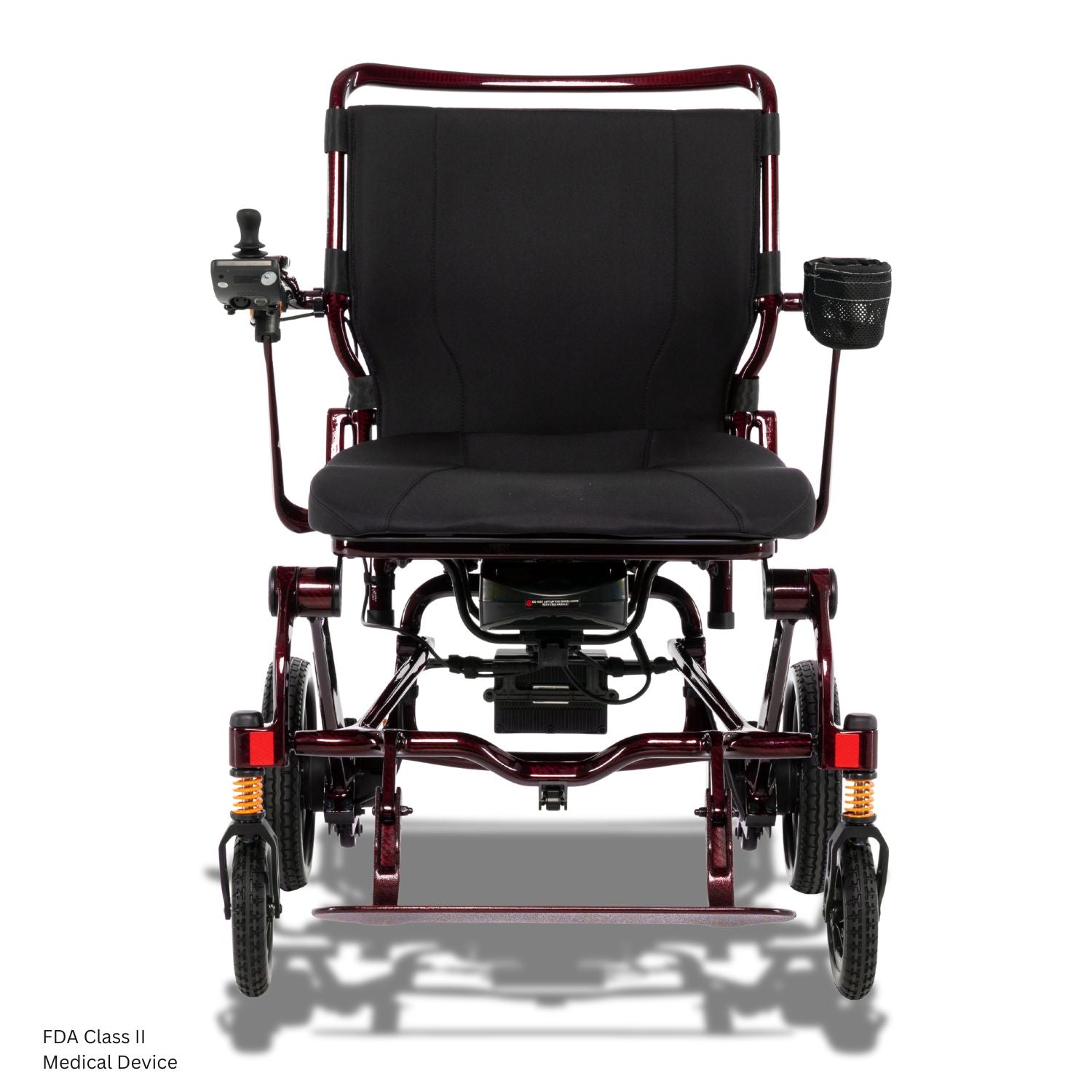

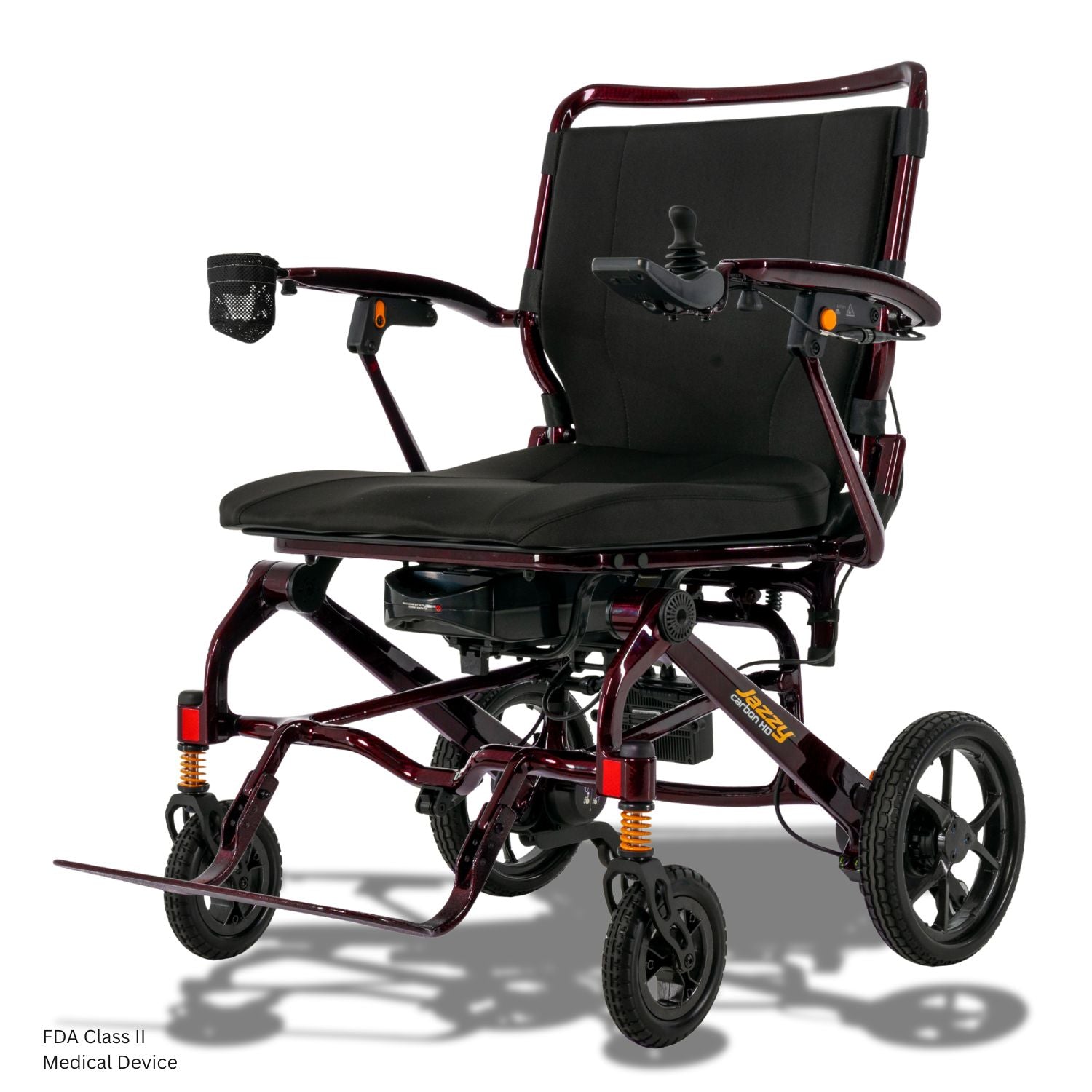

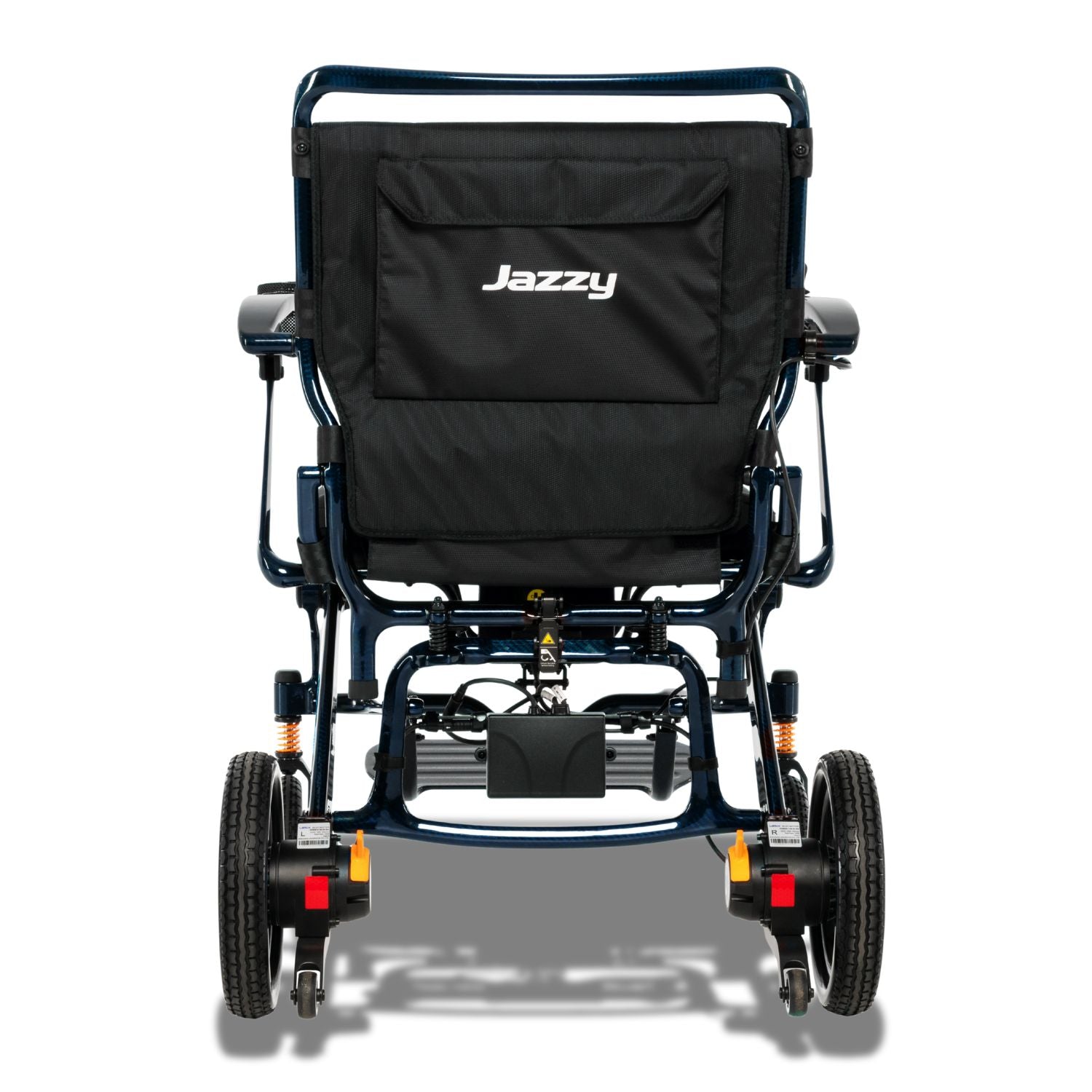

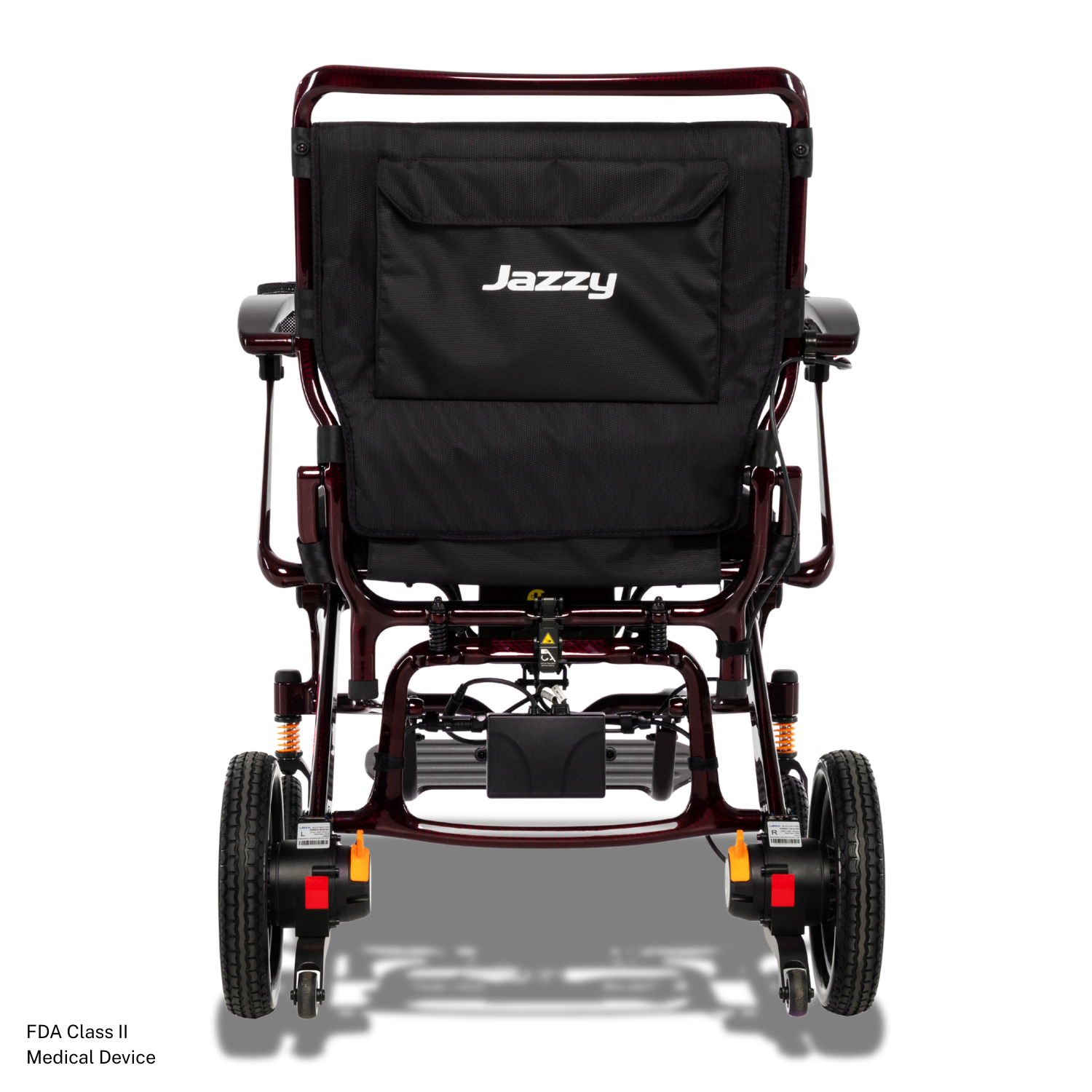

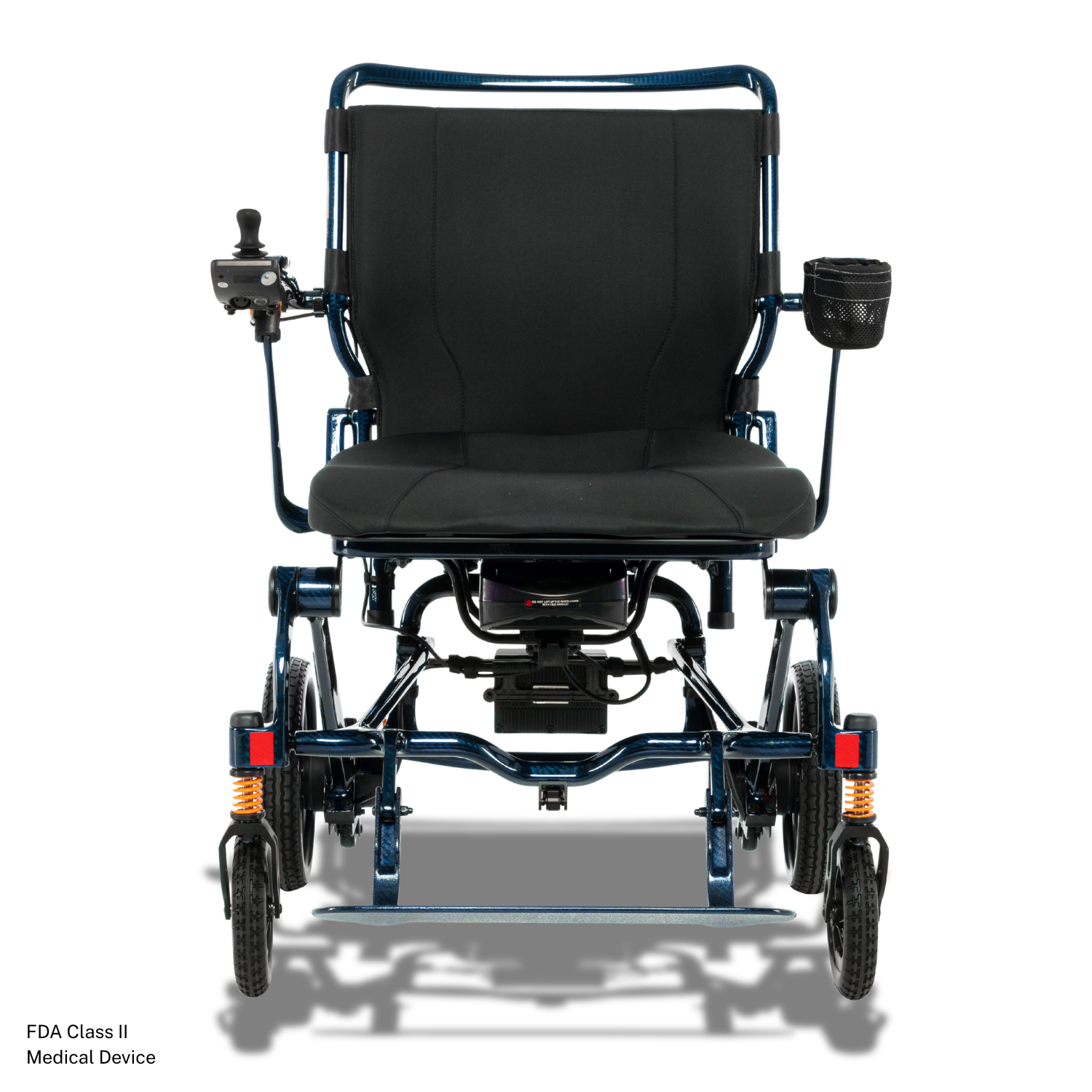

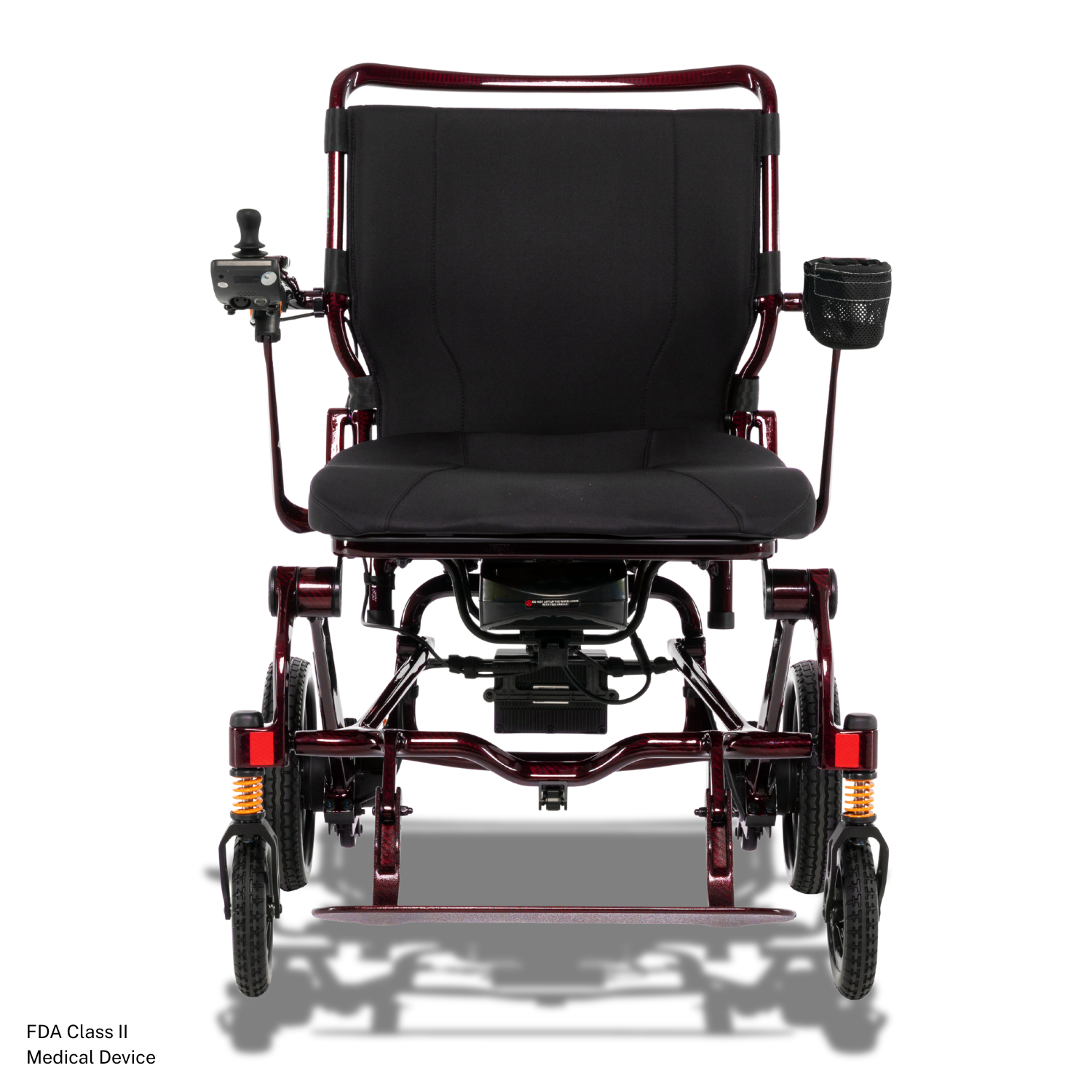

- Available Colors: Black Cherry, Night Sky
*This product is an FDA Class II Medical Device designed to aid individuals with mobility impairments.
Specifications
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Jazzy® Carbon HD
|
| Weight Capacity | 400 lbs. |
| Maximum Speed1 | Up to 3.7 mph |
| Ground Clearance3 | 1" at motor |
| Turning Radius3 | 36.4" |
| Overall Length3 | 36.81" |
| Overall Width3 | 26.4" |
| Suspension | Full Front and Rear Suspension |
| Front Wheels | 6.5" |
| Rear Wheels | 10.6" |
| Range per Charge1,2 | Up to 12.4 Miles per charge |
| Product Weight Without Batteries3,5 | 32.2 lbs. without batteries |
| Standard Seating3 | Dimensions: 20" x 20" seat Seat sling with removable cushion |
| Folded Dimensions | 31.3" L x 26.4" W x 13" H |
| Drivetrain/Motor Output | 24V 250W Brushless motors |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | Type: Lithium battery box Size 20 Ah |
| Battery Weight4 | 7.5 lbs. |
| Battery Charger | 2 Amp |
| HCPCS Codes | K0899 Power Mobility Device, not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply. |
| Warranty | Frame: 5-year Electronics: 1-year limited Drivetrain: 1-year limited Battery: 1-year limited |
|
Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. This specification can be subject to a variance of (+ or -) 10%. 2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%. 4 Battery weight may vary based on battery manufacturer. 5 Includes standard seat weight. |
|
| Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments. | |
| All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. | |
Testing Standards & Warranty
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.
All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.
Some of the items our testing criteria include are:
- Product Stability & Brakes Effectiveness Tests
- Fatigue & Impact Strength Verification Tests
- Overall Product Performance Verification
- Dimensional Requirement Compliance
- Product Durability & Reliability Testing
- Material Protective Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for Adverse Weather Operation Conditions
- Electronic Systems Performance and Durability
- Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
- UL94VO Flammability Testing for Compliance of Plastic Components
- Electromagnetic Compatibility (EMC)
Warranty
- Frame: 5-years;
- Drivetrain: 1-year limited;
- Electronics: 1-year limited;
- Battery: 1-year limited
Heavy-duty mobility
meets lightweight mobility.
The wait is over for a travel friendly, heavy-duty, power wheelchair built for portability. The Jazzy®Carbon HD offers a 400-lb. weight capacity, weighs 32.2 lbs. without the battery, has a durable carbon fiber frame, and gives you a greater level of independence throughout your travels.
Your comfort is paramount.
The roomy 20 x 20” seat, adjustable padded seat back, removable cushion, and extra-wide adjustable foot platform are designed for your comfort. It also has front and rear suspension providing a smooth ride over varied terrain. Jazzy®is known for world-class quality, a commitment to the industry’s most rigorous testing standards, and proven performance over three decades. You will get all of that with the Jazzy®Carbon HD! Travel worry-free and experience the best in lightweight portability!
