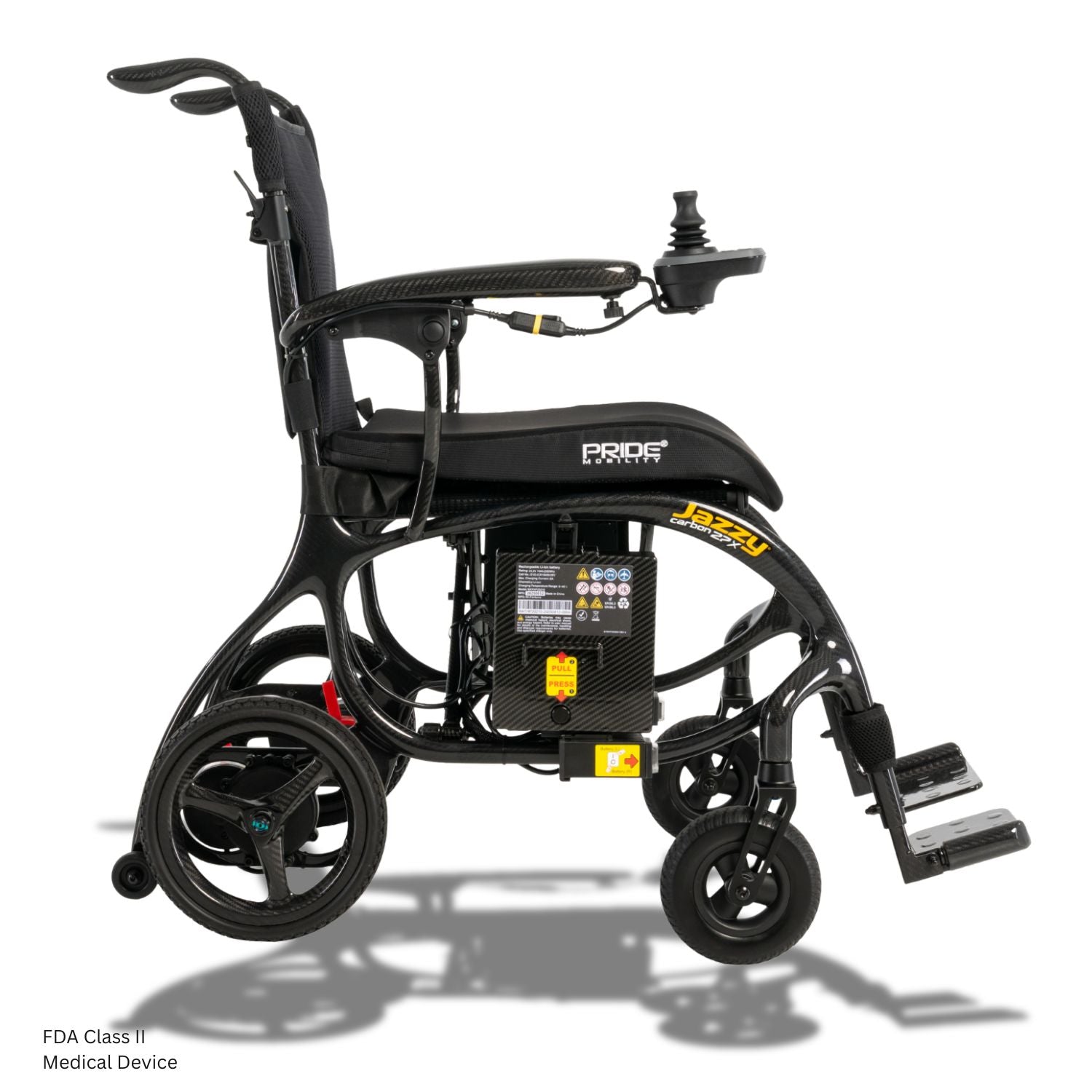

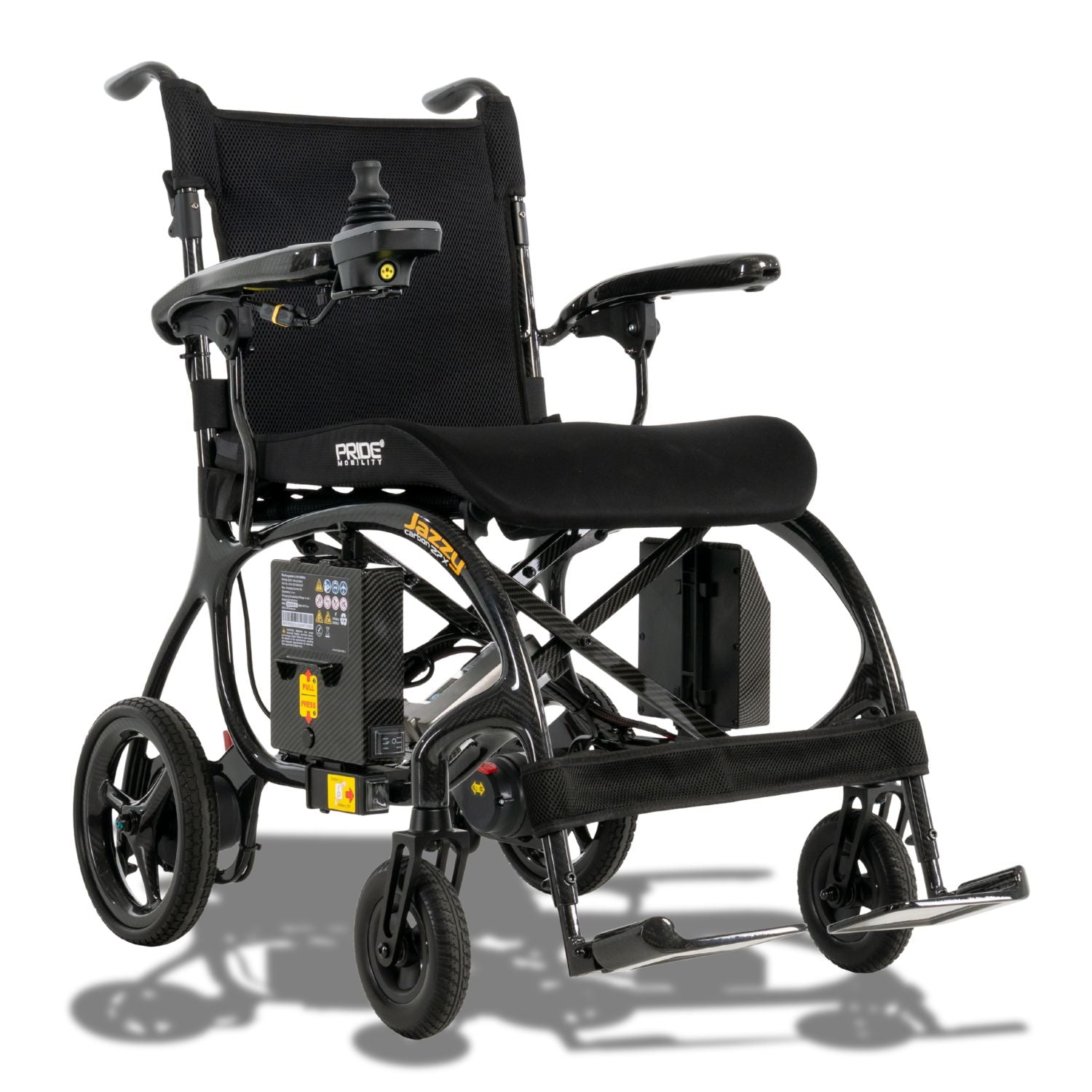

Jazzy Carbon 27X Power Chair
- VendorPride Mobility
Same Day Shipping - Order by 1 PM ET.
$3,299.00
FDA Class II Medical Device
Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.

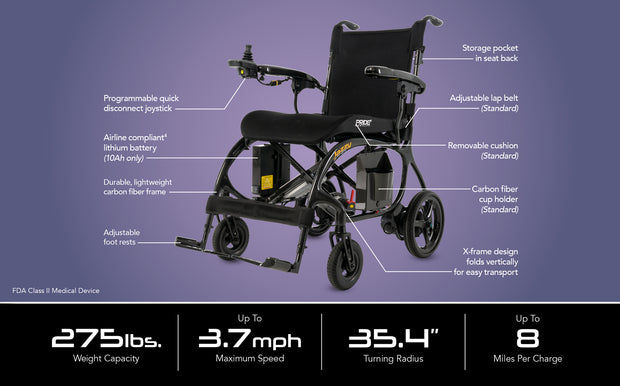

Features
- Weighs about 27.5 lbs. without the battery
- 275 lb. weight capacity
- Top speed up to 3.7 mph
- Battery range of up to 8 miles

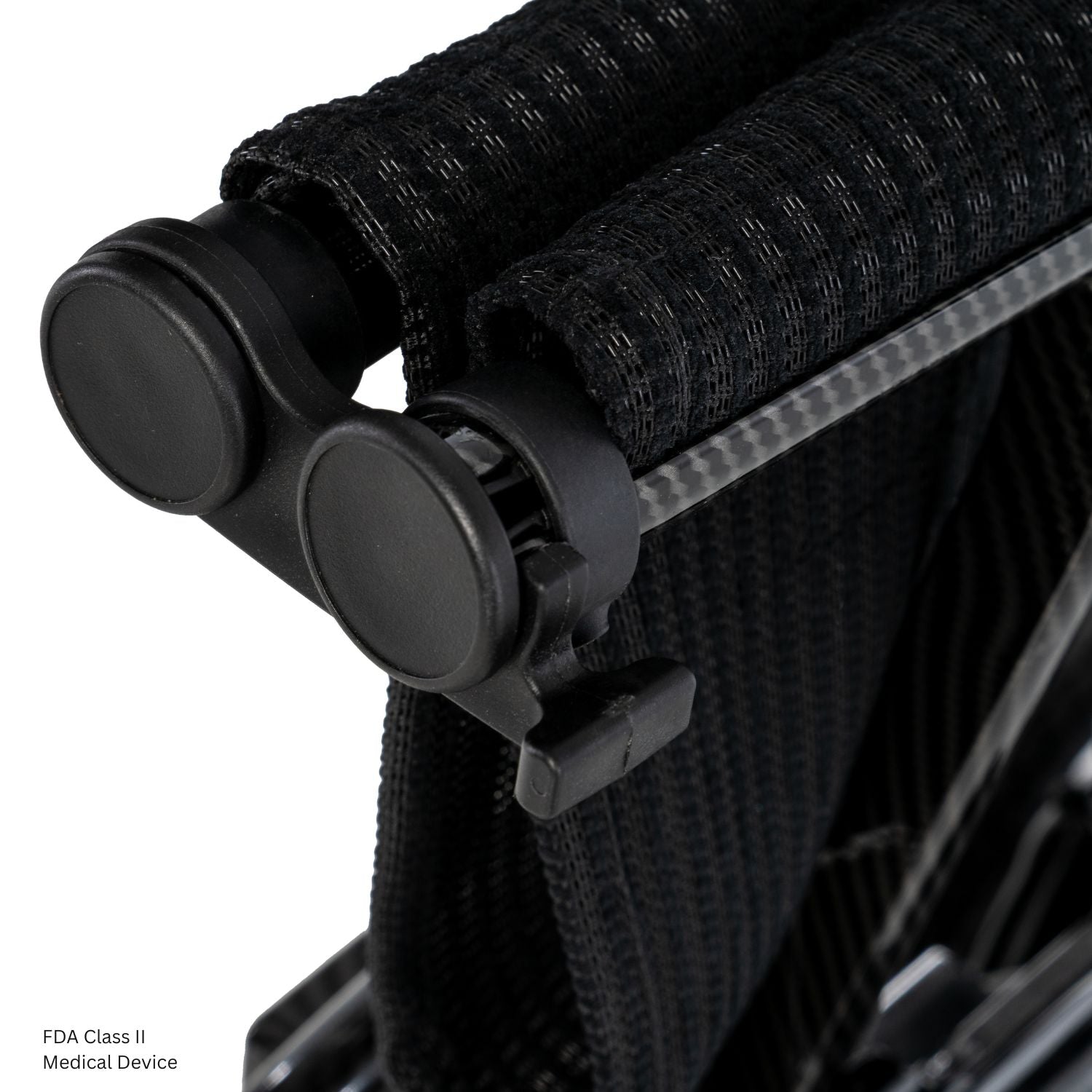

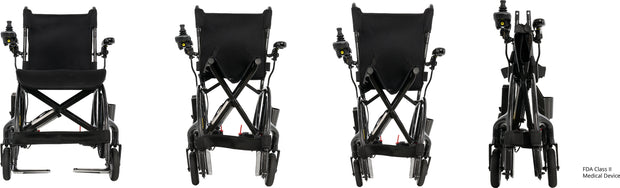

- X-frame design allows the unit to fold flat in vertical position
- Advanced, durable, and lightweight carbon fiber frame
- Folded dimensions: 34” L x 12” W x 30” H
- Flip up, lightweight, carbon fiber arms

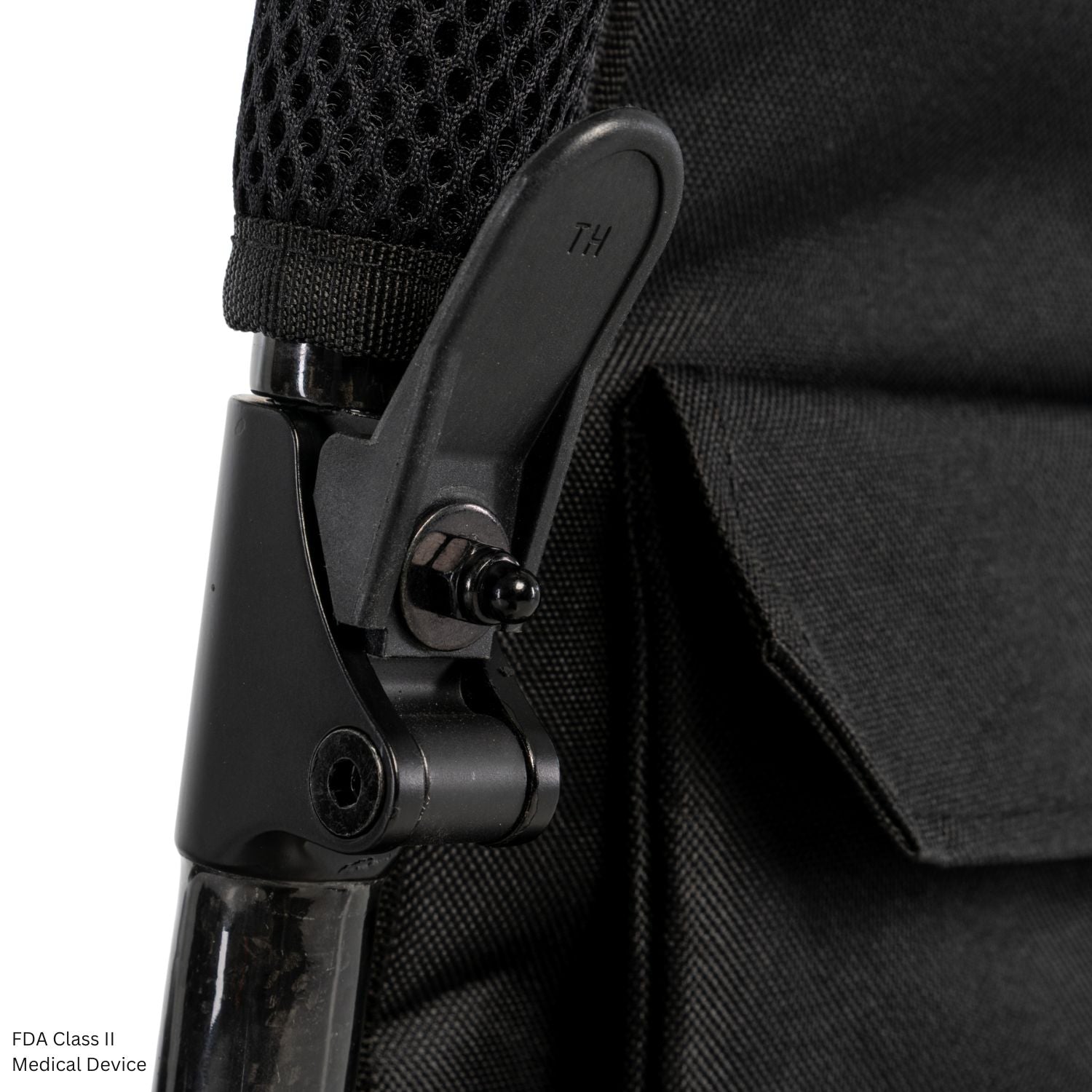

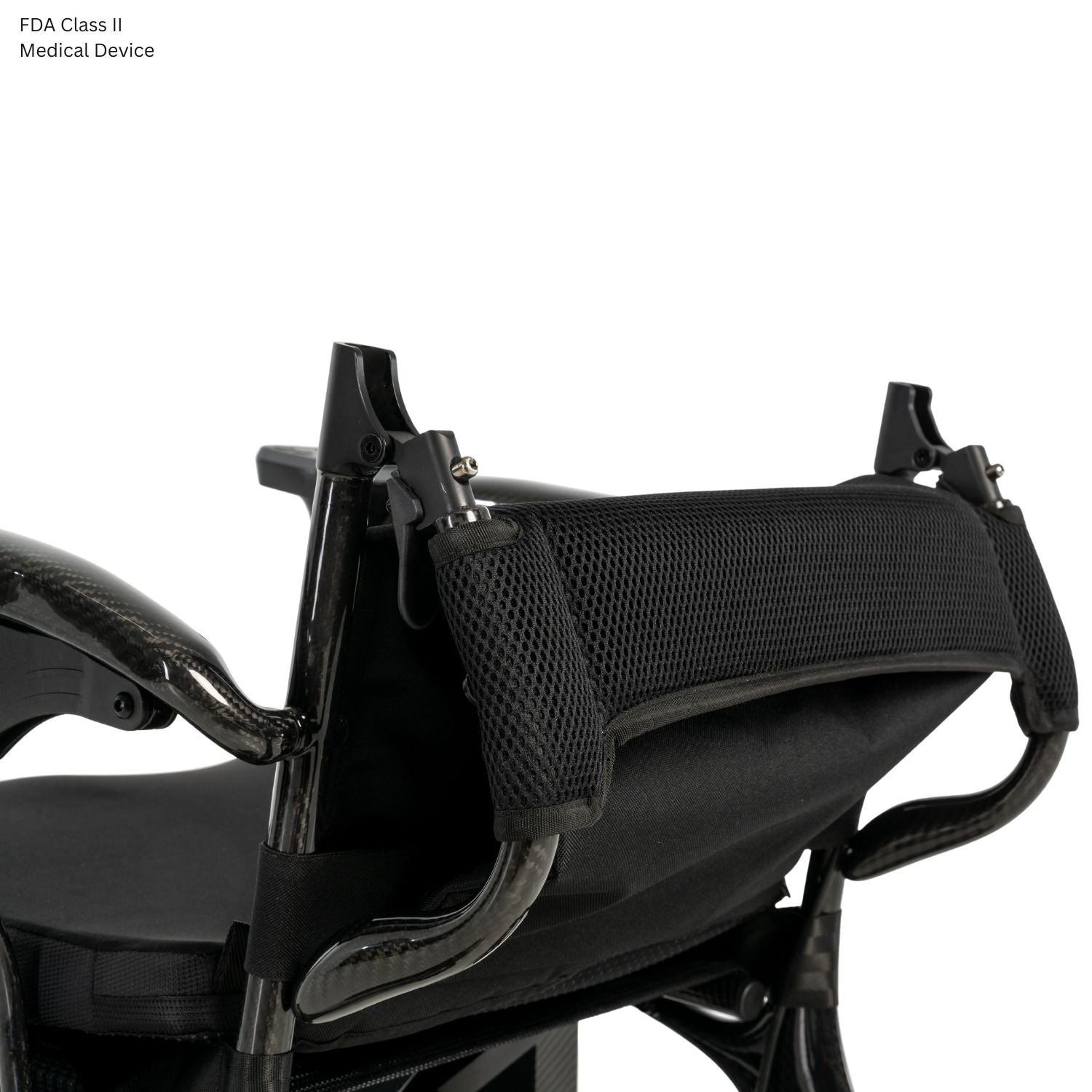

- Collapsible back handles

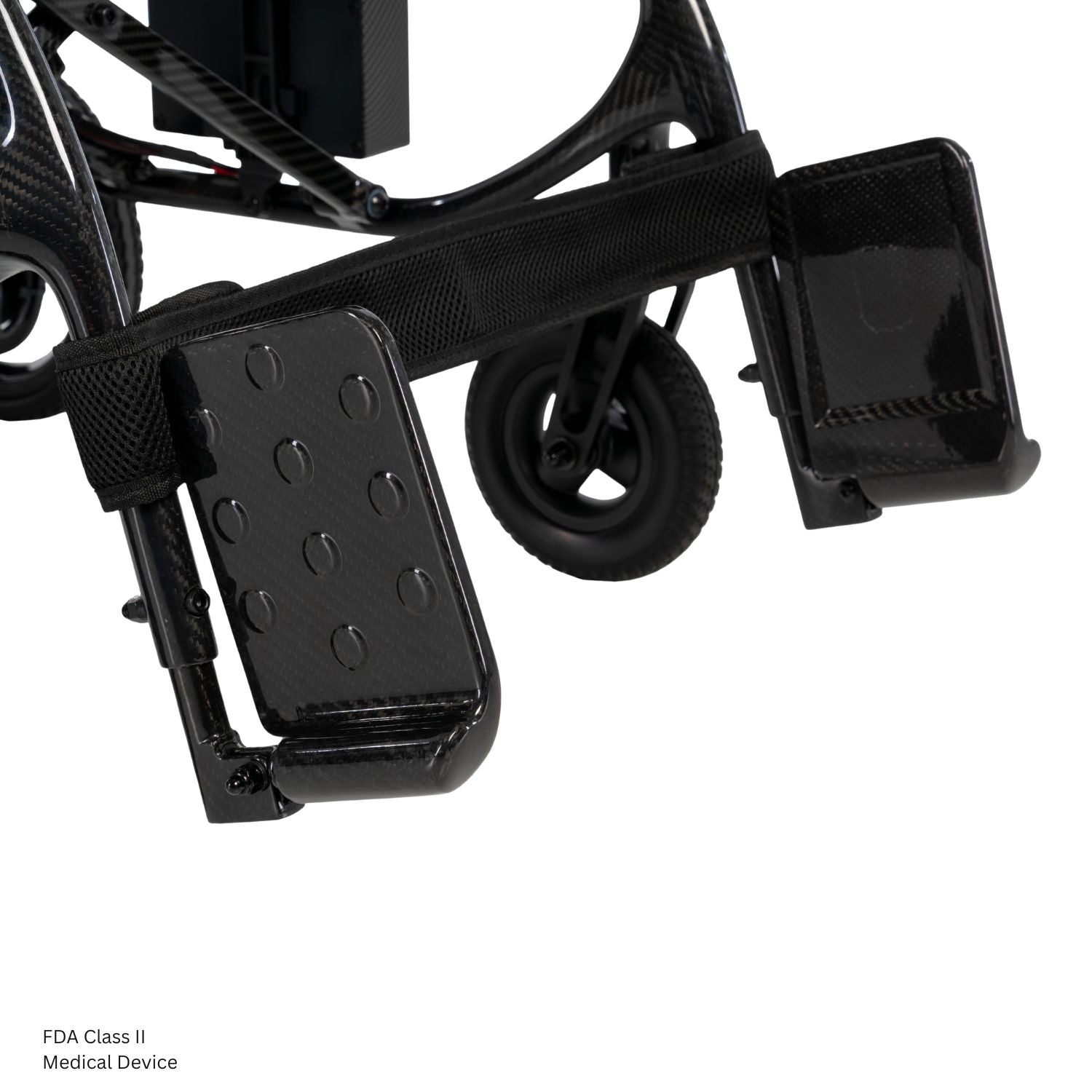

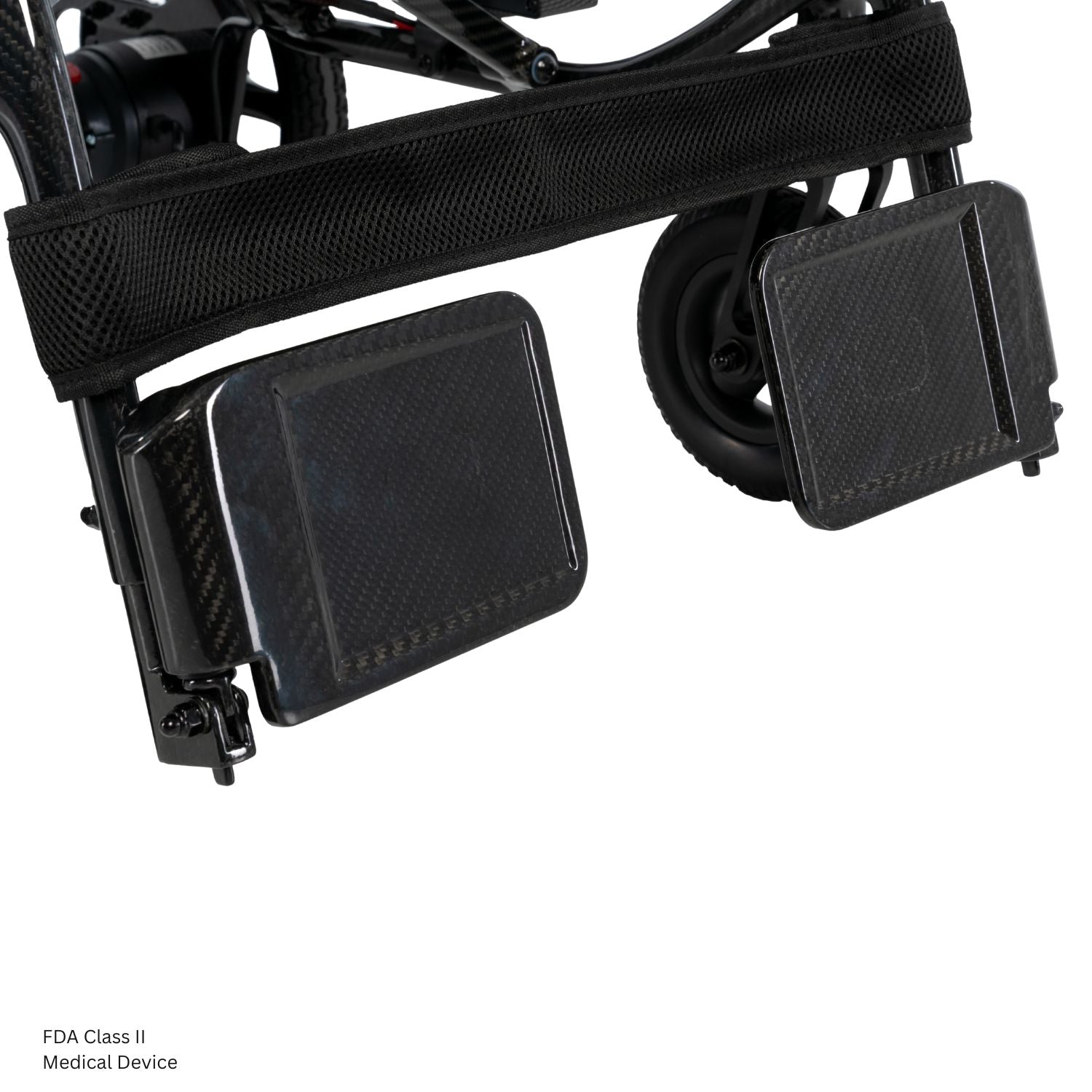

- Adjustable footrests

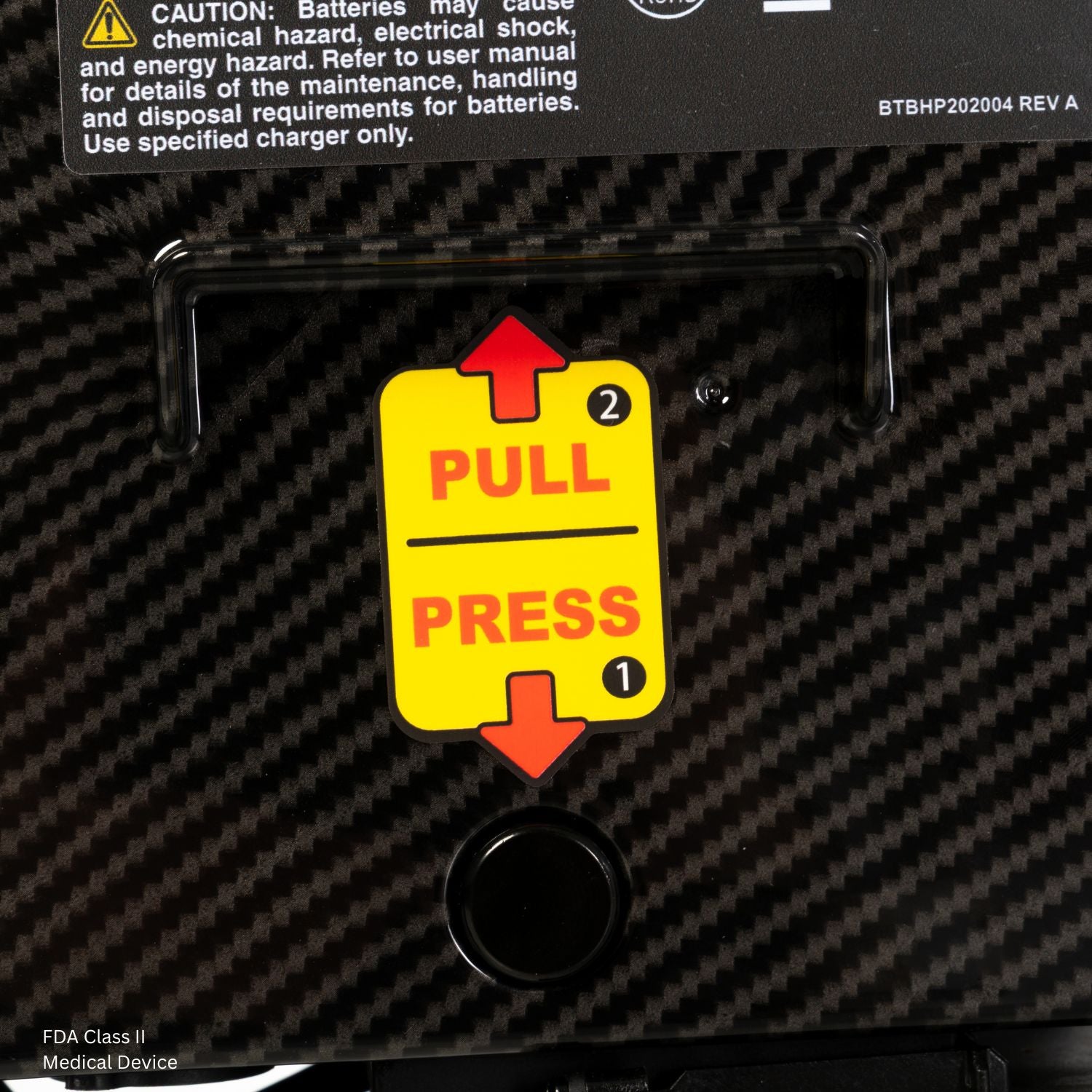

- Airline-compliant lithium battery** (10 Ah only)
- Storage pocket in seat back
- Cushion and adjustable lap belt (Standard)
- Carbon fifiber storage with cup holder (Standard)

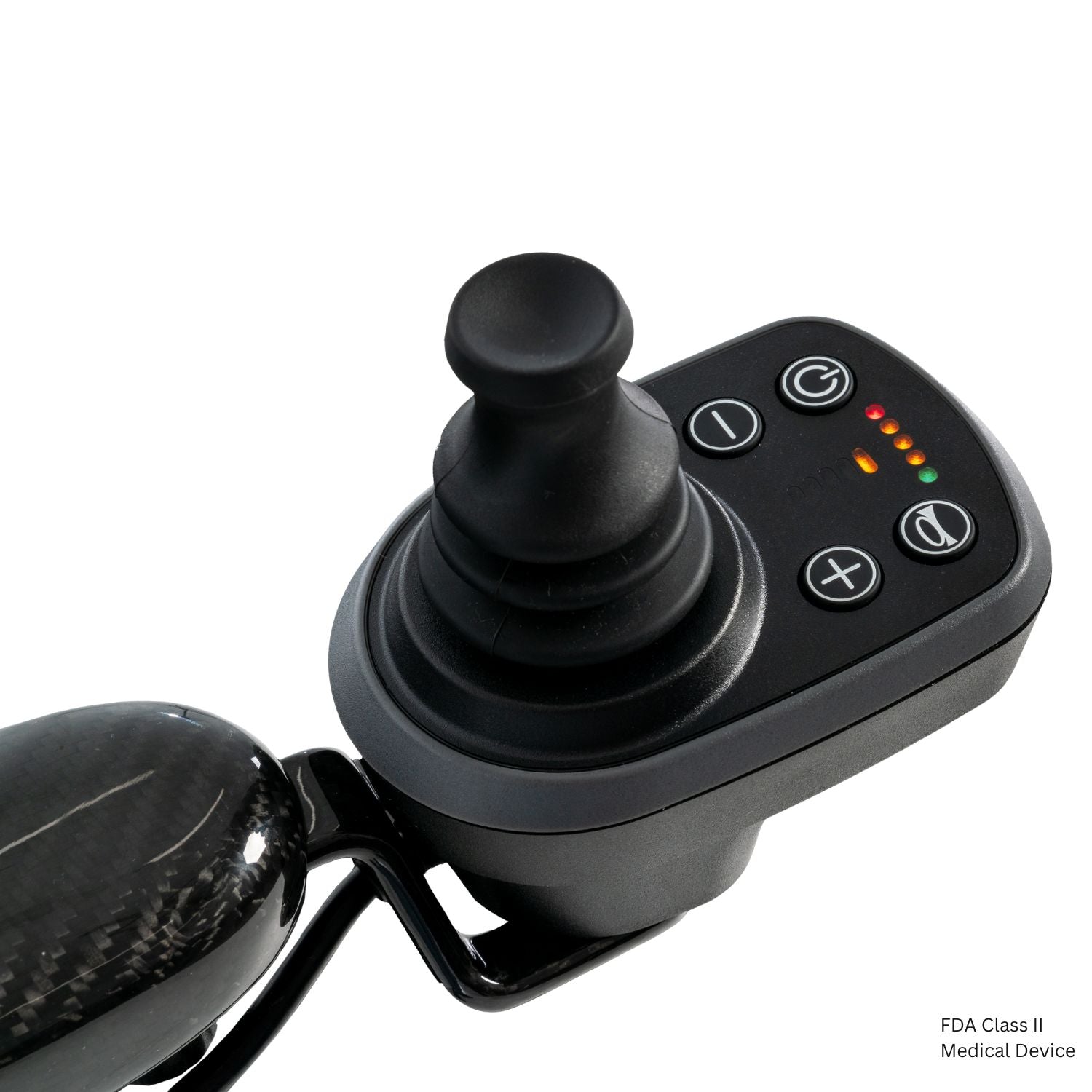

- Programmable quick disconnect joystick (Standard)
- K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria.
- Available Color: Black
*This product is an FDA Class II Medical Device designed to aid individuals with mobility impairments.
**Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Carbon 27X and its lithium battery are permitted
Specifications
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Jazzy® Carbon 27X
|
| Weight Capacity | 275 lbs. |
| Maximum Speed1 | Up to 3.7 mph |
| Ground Clearance3 | 3" |
| Turning Radius3 | 35.4" |
| Overall Length3 | 41" |
| Overall Width3 | 23" |
| Suspension | Full Front and Rear Suspension |
| Front Wheels | 7" |
| Rear Wheels | 10" |
| Range per Charge1,2 | Up to 8 Miles per charge |
| Product Weight Without Batteries3,5 | 27.5 lbs. without batteries |
| Standard Seating3 | Cushioned back with removable seat cushion |
| Folded Dimensions | 34" L x 12" W x 30" H |
| Drivetrain/Motor Output> | 24V 150W |
| Braking System | Regenerative and electromechanical |
| Battery Requirements6 | 24V 10Ah |
| Battery Weight4 | 3.5 lbs. |
| Battery Charger | 3.5 Amp |
| HCPCS Codes | K0899 Power Mobility Device, not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply. |
| Warranty | Frame: 5-year limited Drivetrain: 13-month limited Electronics: 13-month limited Battery: 13-month |
|
Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. This specification can be subject to a variance of (+ or -) 10%. 2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%. 4 Battery weight may vary based on battery manufacturer. 5 Includes standard seat weight. 6 Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® and its lithium-ion battery are permitted. |
|
| Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments. | |
| All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. | |
Testing Standards & Warranty
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.
All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.
Some of the items our testing criteria include are:
- Product Stability & Brakes Effectiveness Tests
- Fatigue & Impact Strength Verification Tests
- Overall Product Performance Verification
- Dimensional Requirement Compliance
- Product Durability & Reliability Testing
- Material Protective Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for Adverse Weather Operation Conditions
- Electronic Systems Performance and Durability
- Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
- UL94VO Flammability Testing for Compliance of Plastic Components
- Electromagnetic Compatibility (EMC)
Warranty
- Frame: 5-year limited;
- Drivetrain: 13-month limited;
- Electronics: 13-months limited;
- Battery: 13-months
A unique lightweight mobility solution.
At first glance, the Jazzy® Carbon 27X may look like our other lightweight power wheelchairs but what stands out is its “X-frame” design, which allows this unit fold vertically, coming together in a compact bundle that is easy to lift, store, and transport.
The travel mobility X-factor!
The Jazzy®Carbon 27X continues Pride®Mobility’s legacy of leading the way in travel-ready solutions. Built to keep you moving, this exciting release is the “X-factor” of mobility independence.
