Invacare Aquatec Reclining Back Bath Lift

Invacare Aquatec Reclining Back Bath Lift is a reclining back bath lift with the ability to recline to 40 degrees. The floating hand pendant with spiral cable ensures that the control is always within reach when needed.

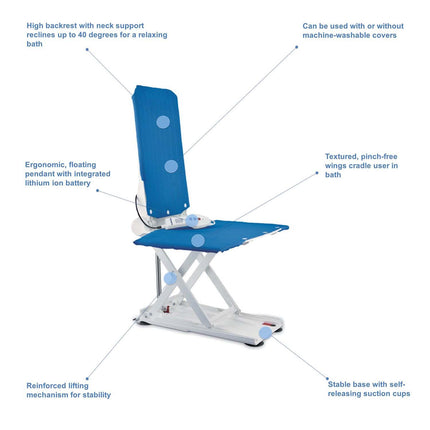

• 2.5" minimum seat height is the best in the industry.
• Reinforced lifting mechanism.

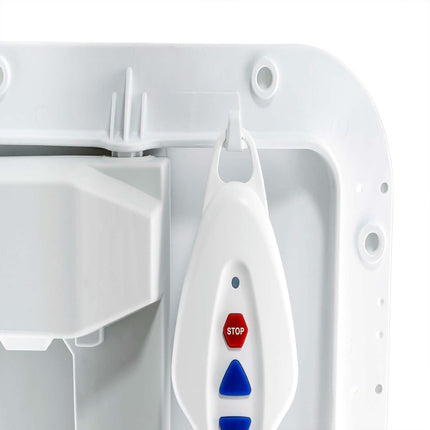

• Ergonomic floating hand control.
• Lift function will not allow the lift to descend if there is not enough battery power present to raise the user.
• Foldable with one hand and easily dismantles into two parts for convenient storage.
• Cover can be simply removed and laundered by unbuttoning along the edges of the back and seat.

Back Height: Regular Blue: 26"
X-Large White: 26"

Back Width: 14"

Family: Aquatec

Length: Regular Blue: 24"
X-Large White: 24"

Reclined Length: 33"

Seat Width: Regular Blue: 15"
X-Large White: 15"

Seat Width with Flaps Down: Regular Blue: 28"
X-Large White: 28"

Size Depth: Regular Blue: 19"
X-Large White: 25.5"

Type: Bath Lifts

Specifications: Total Depth Reclined
Regular Blue: 36"
X-Large White: 36"

Back Height
Regular Blue: 26"
X-Large White: 26"

Back Width
Regular Blue: 14"
X-Large White: 14"

Base Width
Regular Blue: 11.5"
X-Large White: 11.5"

Base Length
Regular Blue: 23"
X-Large White: 23"

Minimum Seat Height
Regular Blue: 2.5"
X-Large White: 2.5"

Maximum Seat Height
Regular Blue: 16.5"
X-Large White: 16.5"

Maximum Seat Height w/ Optional Risers
Regular Blue: 19.75"
X-Large White: 19.75"

Cover Thickness
Regular Blue: 0.12"
X-Large White: 0.12"

Lifts Cycles per Charge:
Regular Blue: 6
X-Large White: 5

Backrest can be reclined by up to (degree angle)
Regular Blue: 40
X-Large White: 40

Color
Regular Blue: Blue
X-Large White: White

Item Weight w/o Hand Control
Regular Blue: 24 lbs.
X-Large White: 25.5 lbs.

Is Assembly Required? Yes

Warranty Description: Limited Warranty: 3 Years - Bath lift (excluding cover material and suction cups)
18 Months - Handset and Batteries

Weight Capacity: Regular Blue: 300 lbs.
X-Large White: 375 lbs.

Package Height: Regular Blue: 15"
X-Large White: 9.05"

Package Length: Regular Blue: 24"
X-Large White: 28.34"

Package Width: Regular Blue: 18"
X-Large White: 16.53"

Number of Boxes: 1

Item Package Weight: Regular Blue: 32.9 lbs.
X-Large White: 31.9 lbs.

Invacare Aquatec Bath Lifts Brochure

Invacare Aquatec Bath Lifts Owner's Manual

Invacare Aquatec Bath Lifts Warranty
